CABAC Loop Calibrator (1/each) C6500

Description

Product Description

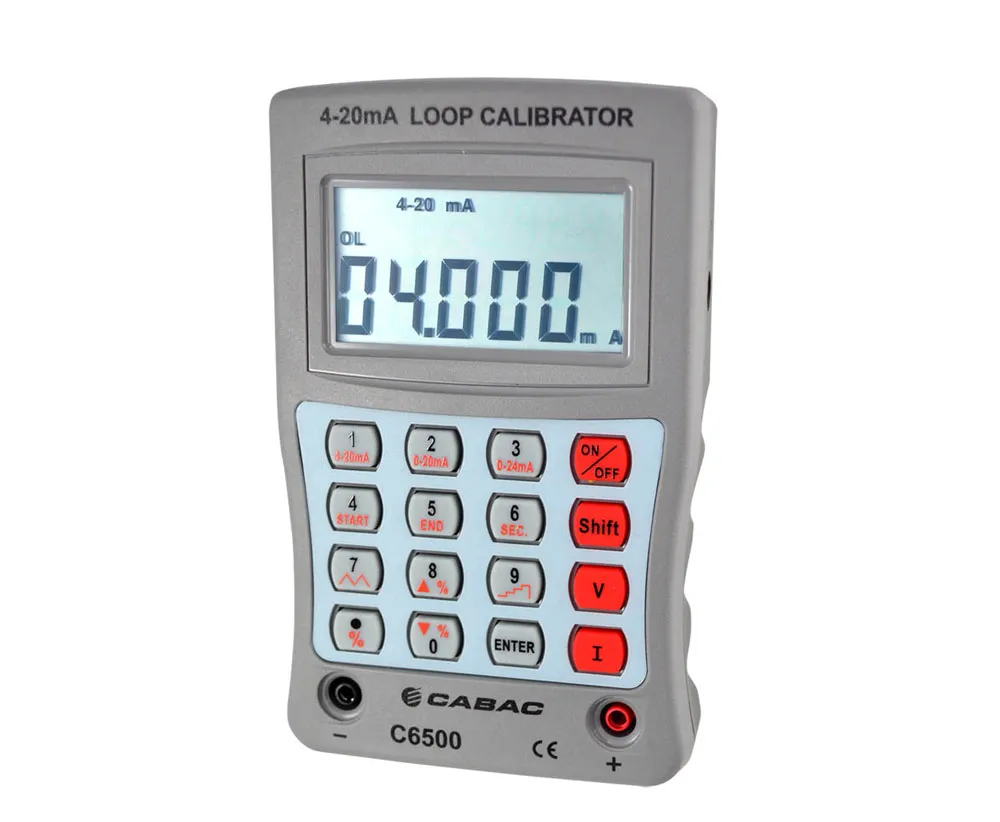

The C6500 Loop Calibrator is the ideal source instrument for process measurement featuring output ranges of 4-20mA, 0-24mA, and 0-24V. Auto ramp up or step output can be selected and displayed in electrical units or as a percentage.

Loop Calibrator Features
– 5 digit LCD
– 4-20mA (1kA load, 24V loop output)
– 0.25% basic accuracy
– Simple operation interface
– Auto ramp and step functions
– 0-20mA, 0-24mA selectable output
– 0-24V selectable output
– Incremental percentage setting: 0-100%
– Warning beeper when output is open
– Power consumption: 150mA @ 24V 1k? load

Safety and Compliance
EN61326-1, IEC61010 CAT 1

Product Details
Each unit is supplied in a gift box with operating manual, batteries, test leads, and 9V DC plug adaptor
Batteries: One 9V alkaline 6F22
Dimensions: 160L x 100W x 38Dmm
Weight: 350g
