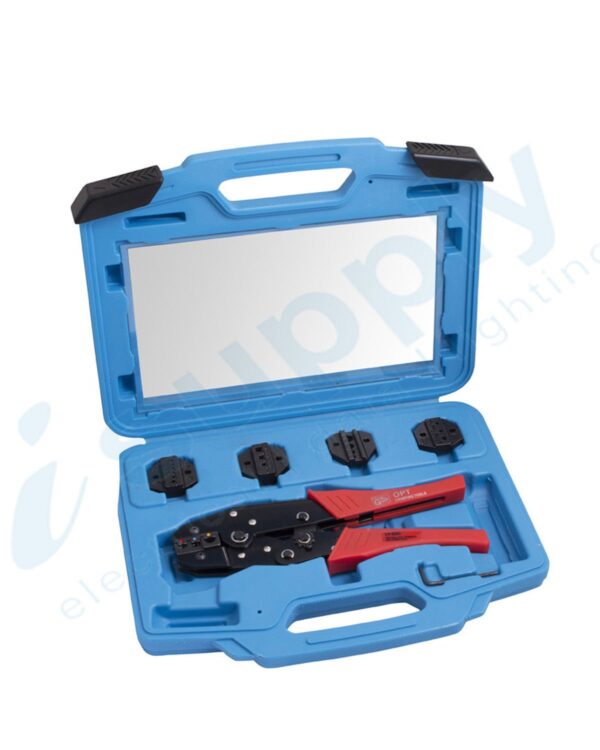

CABAC TERMINAL CRIMPER KIT WITH 5 DIES K03C-5D

Description

The K03C- 5D is a hand, ratchet terminal crimp tool kit containing a crimping tool frame and five

dies. The dies can be changed using an Allen key to remove and fasten the die screws on the

frame. The dies supplied crimp pre-insulated terminals, indent crimp for uninsulated terminal

bootlace ferrules and brass roll crimp terminals.

K03C-5D RATCHET CRIMP TOOL KIT WITH COMBINATION DIES

PRODUCT DATA SHEET

Hand crimping tool frame with five terminal dies Ratchet operation ensures correct crimp and reduced hand effort Dies for pre-insulated, uninsulated, bootlace ferrules and roll crimp terminals Pre-insulated terminals ? red, blue and yellow Uninsulated terminals ? 1.5 to 16 mm2 Bootlace Ferrules ? die size 04 for 0.5mm2 to 4 mm2 Bootlace Ferrules ? die size 16 for 6mm2 to 16mm2 Roll crimp Terminals ? 0.5mm2 to 6 mm2

ORDERING INFORMATION

FEATURES

TERMINAL DIES

Part No: K03C-5D

Length: 230mm

Weight (Tool & 1 Die Set) : 0.6kg
