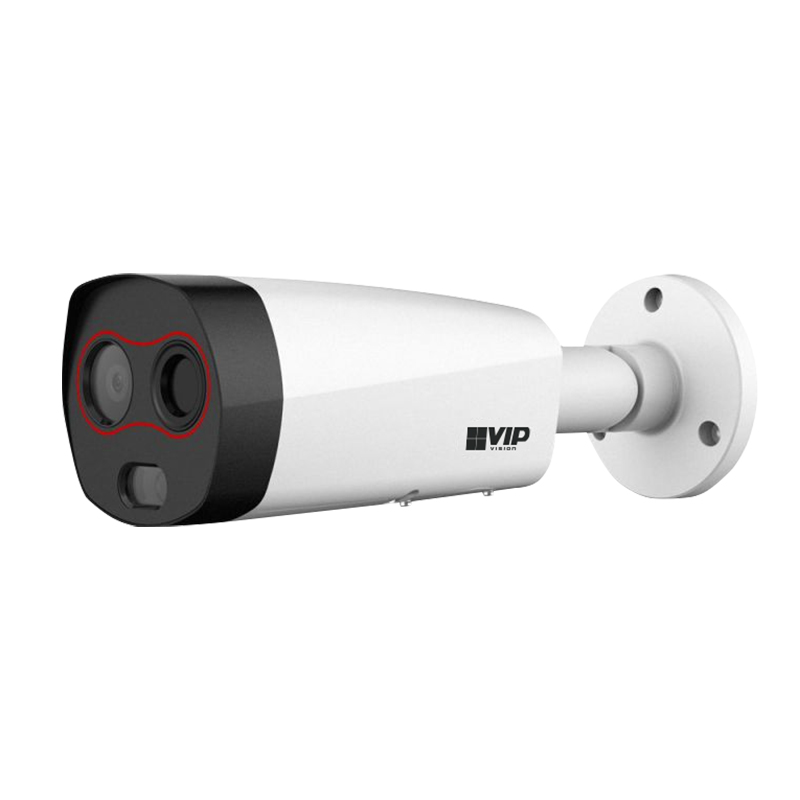

VIP Vision Thermal Body Temperature Measurement System VSIPT-2BTS

Description

Doubling as a surveillance system and thermal scanner, the VSIP-2BTS acts as a fast, reliable & precise screening method in high traffic areas. The thermal lens is fine-tuned for body temperature measurement, serving as an automatic alert system and activating a built-in alarm when high temperatures are detected.

Thermal features:

• Set body temperature alerts ranging from 30°C to 45°C

• High temperature accuracy with ±0.3°C margin of error

• Built-in light & buzzer, with additional alarm outputs

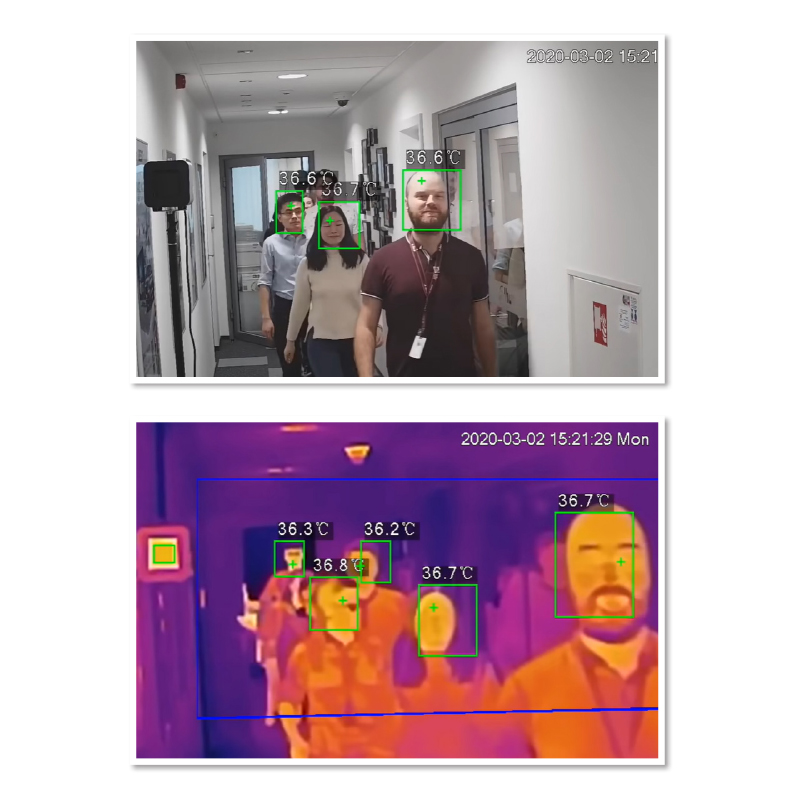

• Temperature test covers up to 15 people simultaneously

Camera features:

• Stream up to Full HD/1080p (1920 x 1080) at 25fps

• 2.0MP standard sensor & 6mm fixed lens (52.8°)

• One IP address/channel for thermal & visible images

• 50m infrared range, true WDR (120dB) & 2D/3D DNR

• Uncooled VOx thermal sensor (256×192 pixels)

• 7.5mm fixed lens for thermal camera (32.4°)

• Detects 8~14μm wavelength infrared spectral range

• Audio & alarm input/output, IP67 rated body & PoE

System Includes:

1 x 2.0MP Thermal Body Temperature Camera

1 x BTM Calibration Target

2 x Mounting Tripods

2 x Tripod Connectors for Camera & Calibration Target

SPECIFICATIONS

Image Sensor: 1/2.8’’ 2.0MP Progressive Scan CMOS

Max. Resolution: Effective Pixels

Effective Pixels: RAM / ROM

RAM / ROM: 512MB / 32MB

Ultra Low Light Colour: Yes

Min Illumination: 0.01 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)

S/N Ratio: > 55dB

Infrared: Yes

Infrared System: 1 x Infrared LED, 50m range, Auto/manual on/off control

Lens Type: Fixed

Lens / Iris: 6.0mm F2.0 Fixed Lens

Field of View: 52.8° (H), 30.3° (V)

Focus: Fixed

Measurement Range: 30°C ~45°C

Measurement Accuracy: Max ±0.3°C with Blackbody Unit, Max ±1°C without Blackbody Unit

Measurement Mode: Spot / Line / Area

Measurement Rule: Spot: 12 / Line: 12 / Area: 12 / Supports 12 rules simultaneously

Thermal Sensor: Vanadium Oxide Uncooled FPA

Effective Pixels (Thermal): 256 (H) x 192 (V)

Sensitivity (NETD): <50mK@f/1.0

Spectral Range: 8~14μm

Image Settings: Brightness, Sharpness, Region of Interest, Auto Gain Control, Flat Field Correction, 3D Digital Noise Reduction

Colour Palettes: 18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)

Lens / Iris (Thermal): 7.5mm Fixed Lens

Field of View (Thermal): 32.4° (H), 24.6° (V)

Focus (Thermal): Athermalized / Best detecting distance: 3m

Resolution: 1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate (Main): Visible: 1080p to 720p (1 ~ 25fps) / Thermal: 1280 x 960 to 720p (1 ~ 25fps)

Frame Rate (Sub): Visible: D1 to CIF (1 ~ 25fps) / Thermal: 640 x 480 to 320 x 240 (1 ~ 25fps)

Frame Rate (Third): N/A

Video Compression: H.265 / H.264M / H.264H / H.264

Bit Rate: H.264: 640 ~ 8192Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Color / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

White Balance: Auto / Manual / Indoor / Outdoor / Tracking / Sodium lamp / Street lamp / Natural

Gain Control: Auto / Manual

Noise Reduction: 2D/3D DNR

Picture Control: Mirror / Flip (180°)

IVS: No

Intelligent Functions: Region of Interest (4 zones)

Thermal Functions: –

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

RTMP Support: NA

Video Interface: 1.0Vp-p/75Ω, PAL/NTSC (HDCVI Optional)

Audio Interface: 1 Input / 1 Output

Alarm Interface: 2 Input / 1 Output

RS485: Support

Edge Storage: MicroSD Card (up to 256GB)

Interoperability: ONVIF / CGI / SDK

Power Supply: 12VDC / PoE (802.3af) / ePoE

Power Consumption: <18W

Operating Conditions: 10° ~ 30° C / Less than 95% RH

Ingress Protection: IP67

Weather Resistance: Yes

Vandal Resistance: N/A

Series: Professional Series

Camera Type: Thermal Bullet

Housing: Metal

Pan/Tilt/Rotation: N/A

Tri-Axis Mounting: No

ePoE: No

Dimensions: 365mm x 175mm x 176mm (with bracket)

Net Weight: <1.40kg

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 389 mm

Height: 91 mm

Depth: 391 mm

Weight: 3.00 kg
