MATCHMASTER TRIMMING TOOL FOR E500 1/2″ CABLE : 56MM-E500-ST

Description

Product Summary

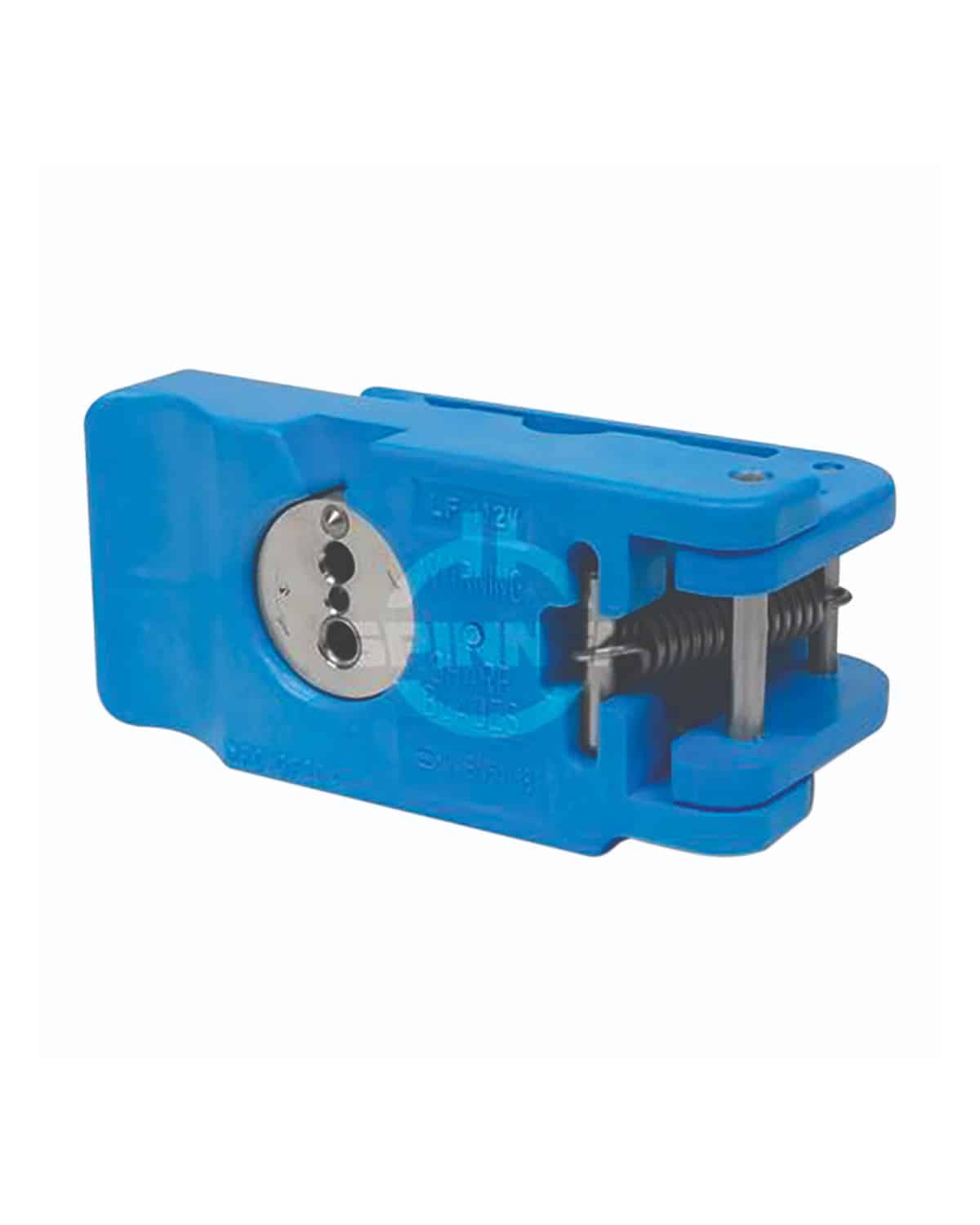

The E500-ST is a Spinner stripping and trimming tool for the E500 50 Ohm half-inch cable. Prepare the cable for the installation of N500P and N500S connectors. It is a multi-fit tool designed for use with many reputable brands of 50 Ohm half-inch cable.

Features and Benefits

Used for preparing 50 Ohm half-inch cables for N500P and N500S connectors

Steel age-hardened blades for longevity

Stainless steel springs and pins

Quality Spinner brand

Spare blades and instruction manual included

Specifications

Cable Type: LF 1/2”-50

Connector type: MultiFit™

Material:

Upper and lower part: Polycarbonate with 20% GF

Blades: Steel age hardened

Springs and pins: Stainless Steel

Colour: Red (similar RAL 3000)

Cable compatibility: Spinner – SPINNERFlex™ LF1/2″-50; Acome – HPL50-1/2 F; Andrew – LDF4-50A; Draka – RFA 1/2”-50; Hansen- RF 50 1/2”; Hengxin – HCAAY-50-12; Leoni- FlexLine 1/2”R; LS Cable – HFC 12D Flexible Foam; RFS – LCF 12-50, LCF 12-50L

Installation instructions: M32109

Weight approx.: 0.2 kg
