CABAC 13 TON DIE SET FOR CU & AL -30PC (1/each) DIESET2

Description

High-Performance Crimping for Copper & Aluminium Terminations

The CABAC 13 TON DIE SET (30PC) is engineered to support heavy-duty crimping across both copper and aluminium applications, giving electricians and contractors the versatility needed for varied on-site installations. Designed for use with 13-ton crimping systems, this comprehensive die set helps ensure consistent, secure terminations across a wide cable size range—from small service work through to large industrial connections.

With dedicated aluminium and copper die profiles included, this set helps reduce changeover delays and keeps productivity high on busy projects. Whether you’re working on switchboards, industrial terminations, or infrastructure installs, this die set supports efficient, repeatable crimping performance that helps keep jobs moving.

Trade-Grade Reliability Built for Compliance and Consistency

Built for professional electrical contractors, this CABAC die set delivers dependable crimping accuracy to help meet installation standards on Australian job sites. Each die is designed for precise compression, helping ensure strong mechanical and electrical connections across CU and AL conductors.

From residential upgrades to large-scale commercial works, consistency matters. This 30-piece set is built to support repeatable results across multiple conductor sizes, reducing the risk of poor terminations and rework. Trusted by trade professionals, it’s a practical solution for maintaining compliance and installation quality under demanding site conditions.

Complete 30-Piece Set for Faster On-Site Workflow

This all-in-one die set is designed to minimise downtime by giving electricians immediate access to a wide range of crimping sizes in a single kit. Ideal for contractors handling multiple cable types and sizes, it reduces the need to source individual dies during critical project phases.

Perfect for service teams, electrical contractors, and maintenance crews who need flexibility and speed when working across different installations. Keep your crimping setup complete, organised, and ready for any job requirement.

Key Specs

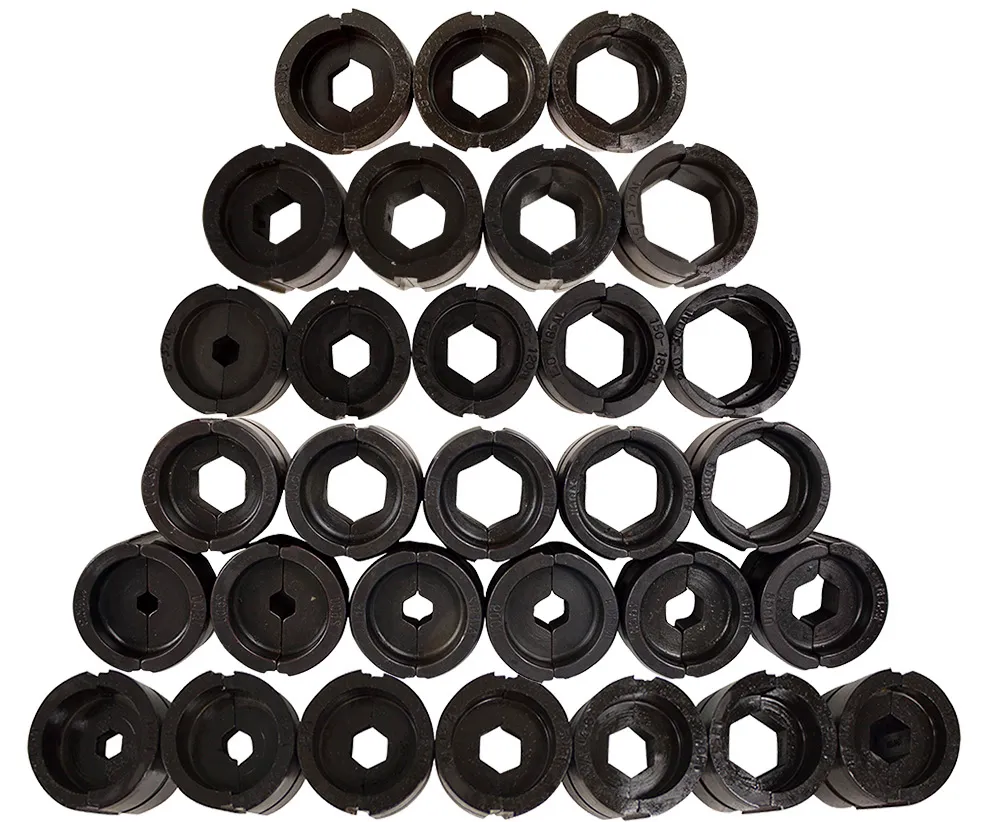

• 30 PIECE DIE SET (13 X ALUMINIUM DIES FROM 6–300MM? PLUS 17 COPPER LUG DIES FROM 16–300MM?)

Aluminium Dies

• HT-6/35AL ALUMINIUM HEX.DIE 9.00MM A/F 6-35MM?
• HT-50/70AL ALUMINIUM HEX DIE 13.2MM A/F 50-70MM?
• HT-95/120AL ALUMINIUM HEX DIE 17.3MM A/F 95-120MM?
• HT-150/185AL ALUMINIUM HEX DIE 22.0MM A/F 150-185MM?
• HT-240/300AL ALUMINIUM HEX DIE 28.4MM A/F 240-300MM?
• HT-7/300-375AL ALUMINIUM HEX DIE 18.0MM A/F 7/3 & 3.75 STRAND
• HT-7/225AL ALUMINIUM HEX DIE 14.0MM A/F 7/2.25 STRAND
• HT-7/250AL ALUMINIUM HEX DIE 14.5MM A/F 7/2.50 STRAND
• HT-19/375AL ALUMINIUM HEX DIE 26.2MM A/F 19/3.75 STRAND
• HT-7/450AL ALUMINIUM HEX DIE 19.0MM A/F 7/4.50 STRAND
• HT-25ABC ALUMINIUM DIE 14MM A/F 25MM? ABC
• HT-35/95ABC ALUMINIUM DIE 17.3MM A/F 35/95MM? ABC
• HT-95/150ABC ALUMINIUM DIE 21.5MM A/F 95/150MM? ABC

Copper Dies

• HT-16PT CU HEX DIE 8.2 A/F PT16 FT SLEEVE
• HT-25PT CU HEX DIE 9.2 A/F PT25 FT SLEEVE
• HT-35PT CU HEX DIE 11.5 A/F PT35 FT SLEEVE
• HT-50PT CU HEX DIE 13.2 A/F PT50 FT SLEEVE
• HT-70PT CU HEX DIE 14.8 A/F PT70 FT SLEEVE
• HT-95PT CU.HEX.DIE 19.0 A/F PT95 FT SLEEVE
• HT130-C-16 to HT130-C-300 COPPER HEXAGONAL DIES (16MM? to 300MM?)

Ideal For

• Licensed electricians and electrical contractors
• Industrial and commercial switchboard installations
• Copper and aluminium cable termination work
• Maintenance and facility upgrade projects
• Construction and infrastructure electrical works
• Contractors requiring multi-size crimping flexibility on-site
