Ritz Snap On Duck Bill Clamp (1/each) G3622-1
$220.61 inc GST
- SNAP-ON GROUND CLAMP 4.1 – 29.5mm dia CABLE DUCK BILL TYPE
- Jumper cable connection 16 to 95 sq. mm ferruled conductor
- Current rating 400A, 30kA 30 cycles, 23kA 60 cycles
- Clmaping conductor diamter up to 29 mm diameter, Cu, AAC, ACSR,
- ASTM designation: Type III, Class A, Grade 5
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Product Description

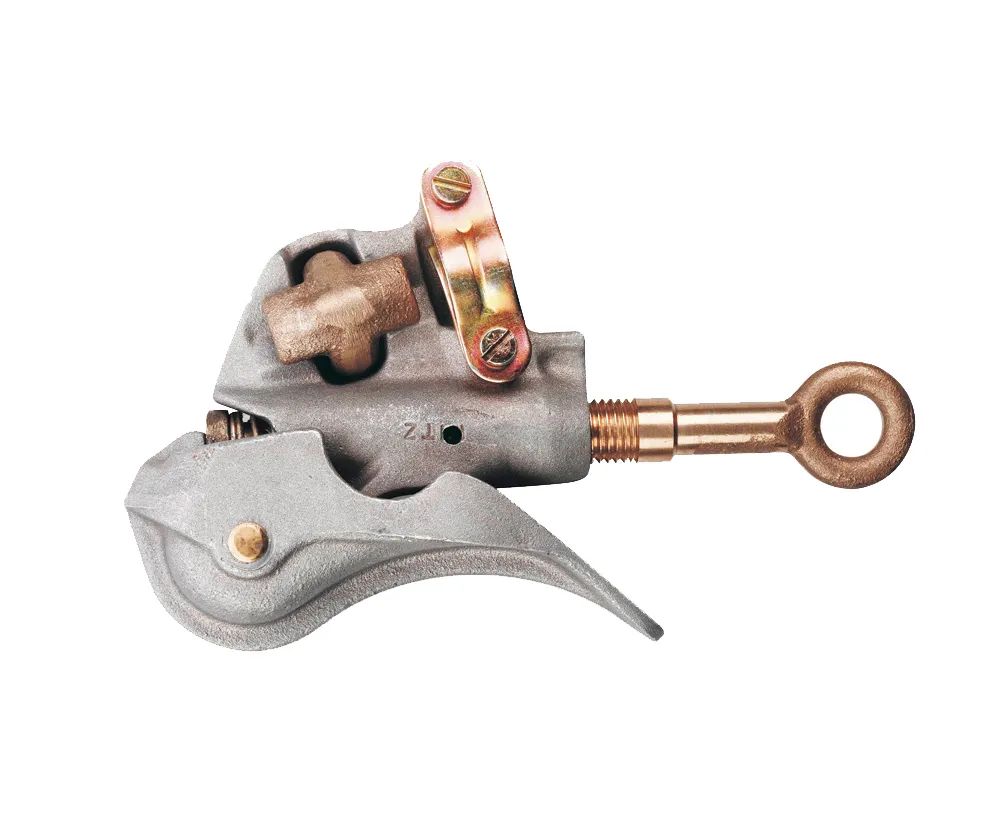

Snap-On Duck Bill Style Clamp
Designed for hot stick and shotgun stick applications with nominal 400A rating. The duck bill makes the clamp easy to locate and initially snap on before tightening.
– Continuous current: 400A
– Fault Current: 15 cycles 35kA, 30 cycles 25kA
– Main line range: 4 to 29mm diameter
– Jumper cable range: 25 to 95mm?
– Recommended torque: 3Nm
– Weight: 0.7kg
The conductor attachment is either a direct clamp of the conductor or using a crimp stalk lug in the C600-2627/2628 series. The stalk clamps directly into the cable clamp.
G3622-1
