Cabac CABLE STOCKING 40-55MM O/SET CG45OE
$550.60 inc GST
Spec U/G Equip.
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Tubular offset eye allows the cable to be passed through the grip and secured at any point along the cable
Mainly used for strain relief
Featuring an alloy ferrule and a soft eye
Variations e.g. galvanised thimbles available on request
Product Description

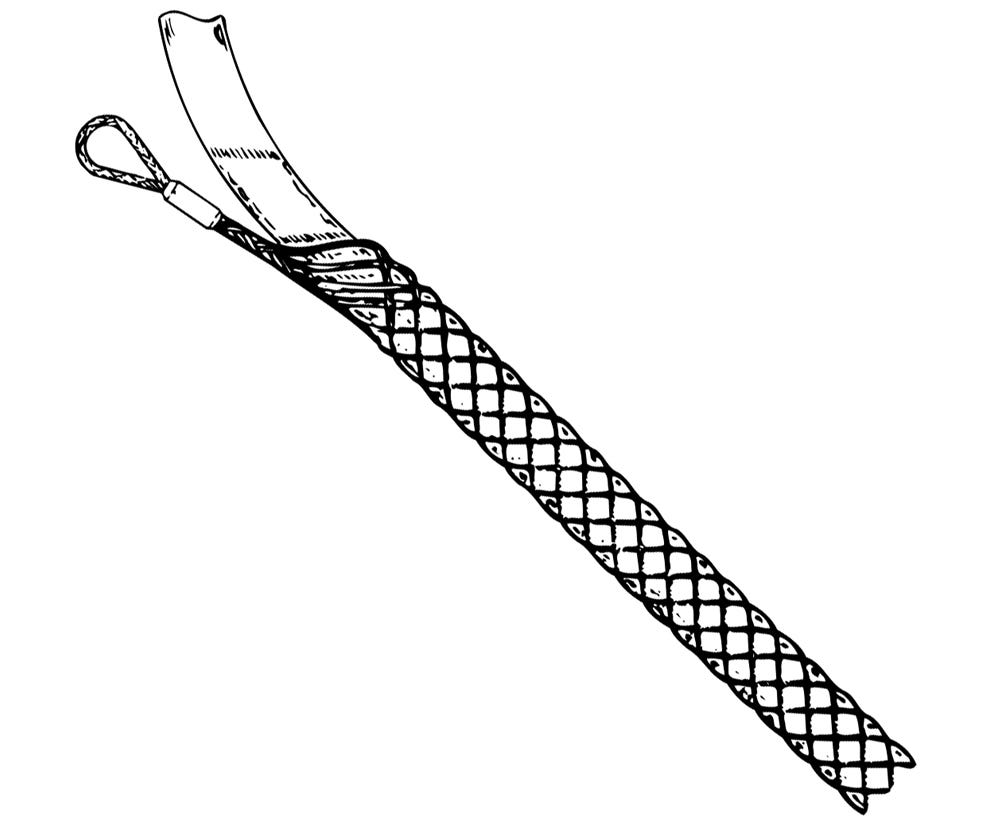

Tubular Offset Eye Cable Stockings (Grips)
CABAC’s Offset Eye Style cable stockings allow the cable to be passed through the grip to allow it to be secured at any point along the cable. It is mainly used for strain relief, with typical applications being permanent installations in process plants, mines etc.
The standard offset eye style is manufactured from two ply galvanised strand with an alloy ferrule and soft eye. Variations such as galvanised thimbles, copper ferrules, stainless steel strand and stainless steel thimbles are also available.
Technical Specifications
Max Pulling Tension (KN): 35
Grip Length (mm): 800
To Grip Cable Diameter (mm): 40-55
