Cabac CABLE STOCKING 40-55MM D/EYE SS-SF-ST CG45DE-SS-SF-ST
$1,091.20 inc GST
Spec U/G Equip.
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description

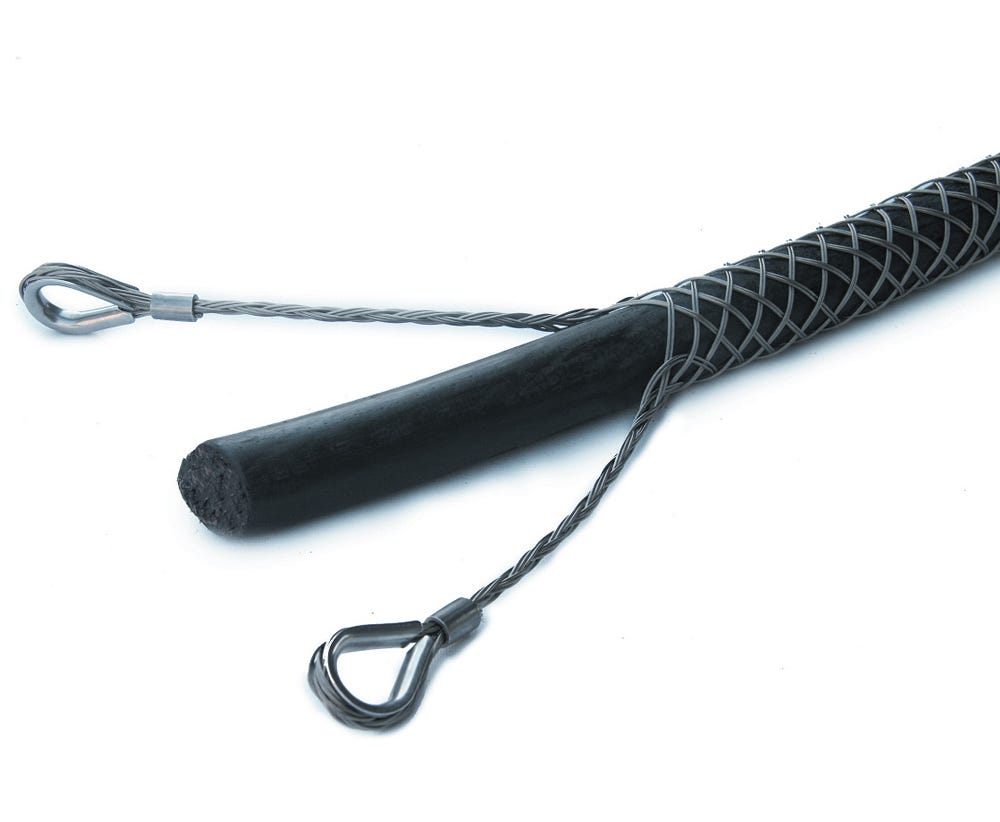

Double eye design allows the cable to be lifted into position with one eye, while the other eye is used to anchor the cable to a fixture
Featuring Stainless Steel rope, ferrule and thimble
Variations available on request
Product Description
CABAC’s double eye style allows the cable to pass through the grip. The extra eye allows the cable to be lifted into position with one eye, whilst the other eye is used to anchor the cable to a fixture.
The standard double eye style is manufactured from two ply galvanised steel wire strand, with an alloy ferrule and soft eyes.
Variations such as galvanised thimbles, copper ferrules, stainless steel strand and stainless steel thimbles are also available. Please contact our sales.
Technical Data
Grip Cable Diameter: 40-55mm
Grip Length Approx: 800mm
Max Pull Approx: 35kN
Material
Rope: Stainless Steel
Ferrule: Stainless Steel
Thimble: Stainless Steel
Technical Specifications
Max Pulling Tension (KN): 35
Grip Length (mm): 800
To Grip Cable Diameter (mm): 40-55
