Cabac CABLE STOCKING 19-28MM CG20
$442.48 inc GST
Spec U/G Equip.
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
Tubular single eye used for general cable hauling
Slipped over the end of a cable and grip when pulled
Featuring an alloy ferrule and a soft eye
Variations e.g. galvanised thimbles available on request
Product Description

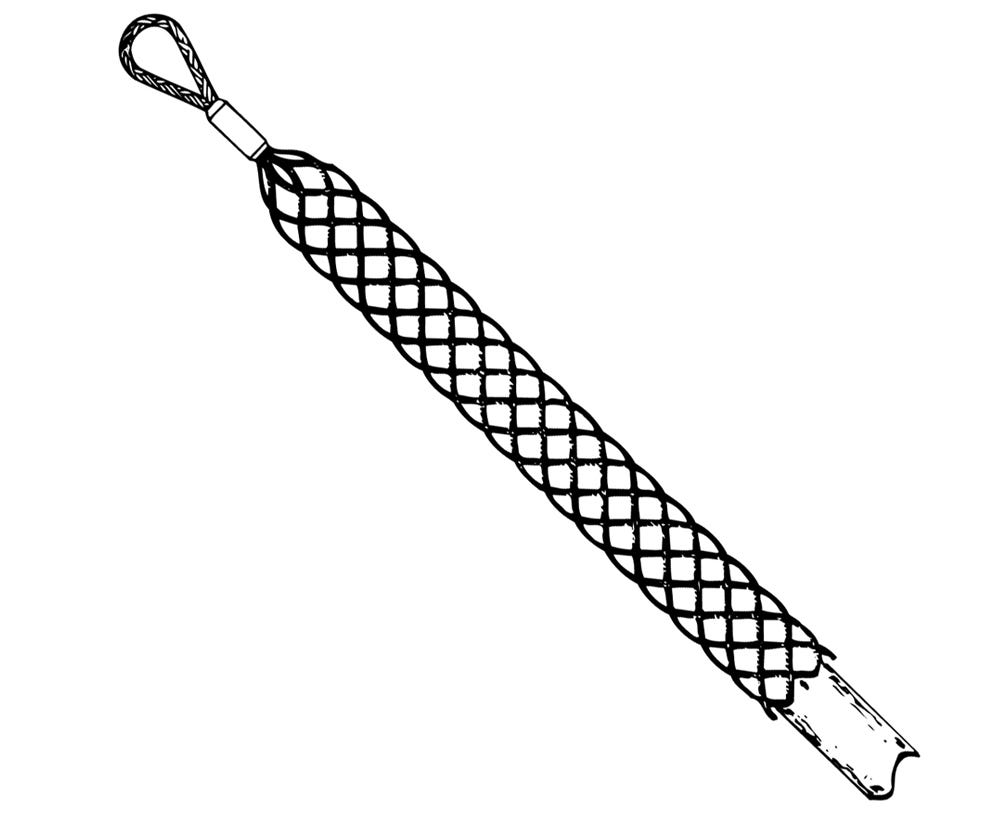

The ‘CG’ range of stockings is the most common type of stockings, used for general cable hauling. They have a single eye and are integrally woven on a central axis. The cable stocking is slipped over the end of the cable, and grips when pulled.
Tubular single eye cable stockings are made of two ply, galvanised steel wire strand with an alloy ferrule and soft eye. Variations such as galvanised thimbles, copper ferrules, stainless steel strand and stainless steel thimbles are also available.
Technical Data
Grip Cable Dia: 19-28mm
Grip Length Approx.: 500mm
Max Pull Approx.: 15kN
Technical Specification
Max Pulling Tension (KN): 15
Grip Length (mm): 500
To Grip Cable Diameter (mm): 19-28
