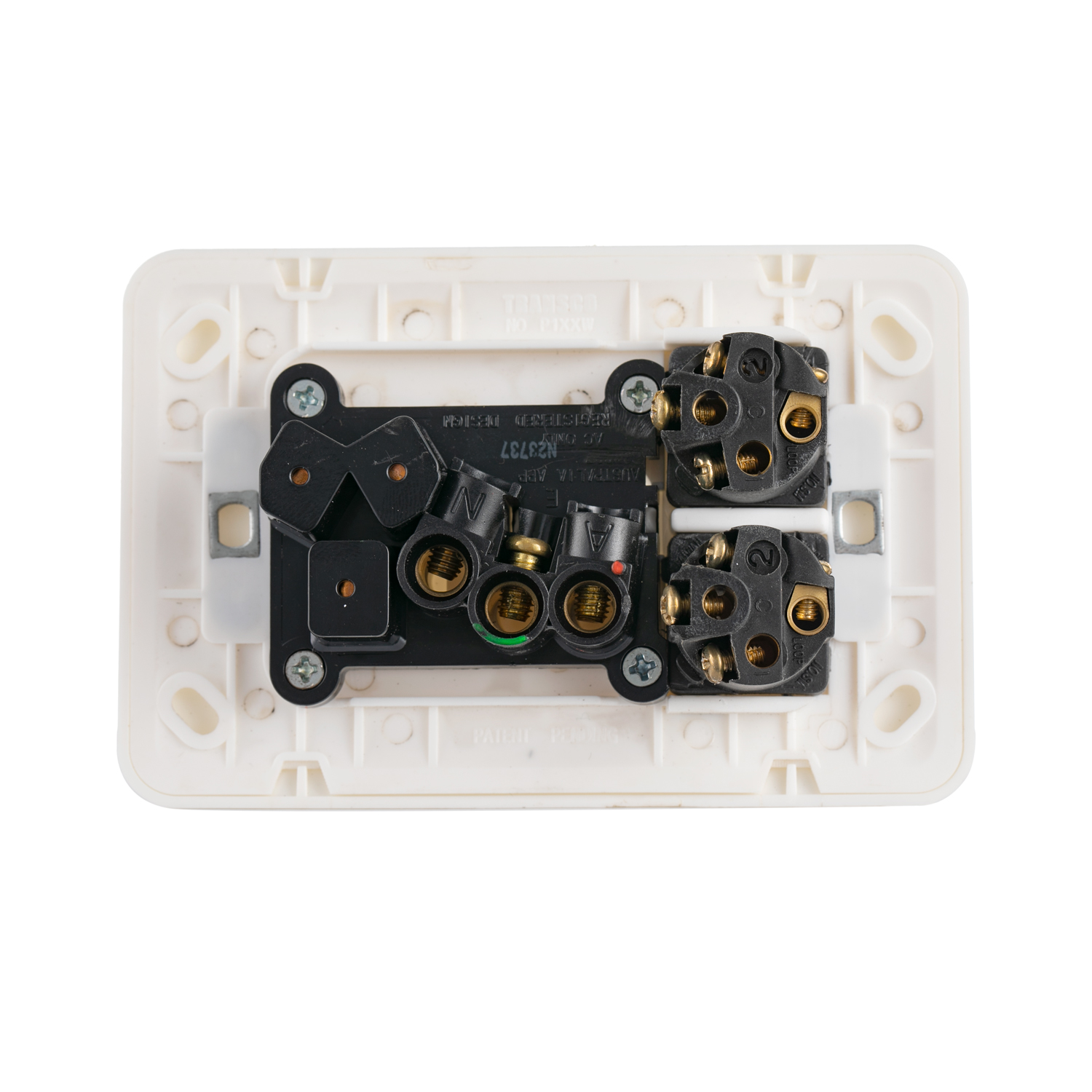

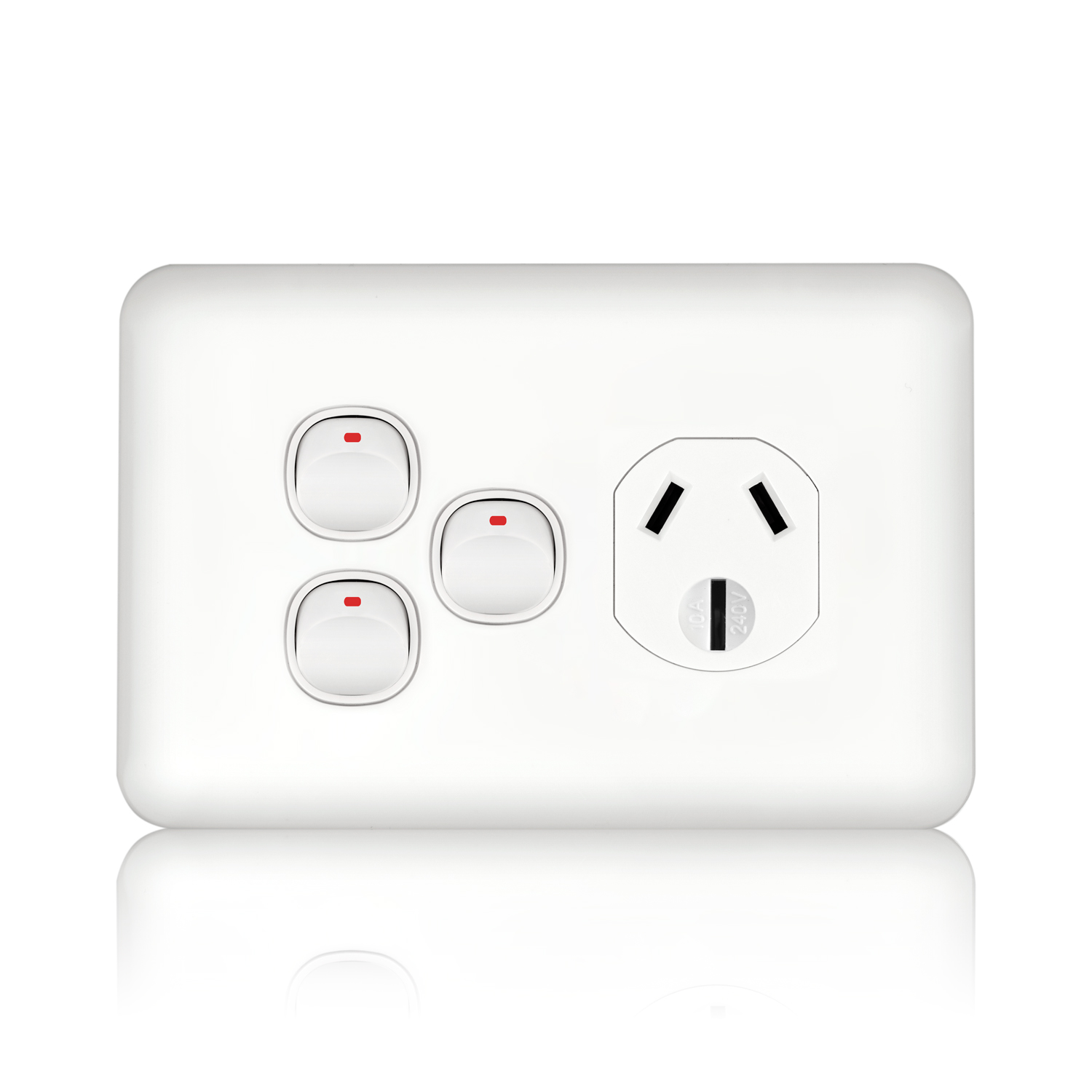

The power current is AC, single-phase, with ratings of 10A, 15A, or 20A and 240V. The unit features a molded top cover and underbody crafted from impact-resistant polycarbonate, available in electrical white or black. It has a single switch pole and provides socket configurations for 1, 2, or 3 gangs, with either 1 or 2 socket outlets. The design includes three pins (active, neutral, earth), a flat earth pin, a copper ferrule x3 cable connector, and accommodates a cable size of 2.5mm x3. With dimensions of W72mm x L116mm x D20mm, it is designed for horizontal on-wall mounting with 84mm fixing centers, fits all standard flush mount brackets, and is compatible with Transco Wafer Series mounting flanges. The product adheres to AS/NZS3100, AS/NZS3112, and AS/NZS3133 standards.
