Three Pole 40 Amp Isolating Switch | IP66 Weather Protected

Description

Three Pole 40 Amp Isolating Switch | IP66 Weather Protected

Suitable for Air Conditioners and many other isolating purposes. These outdoor isolator switches are robust and can stand the harsh Australian sun.

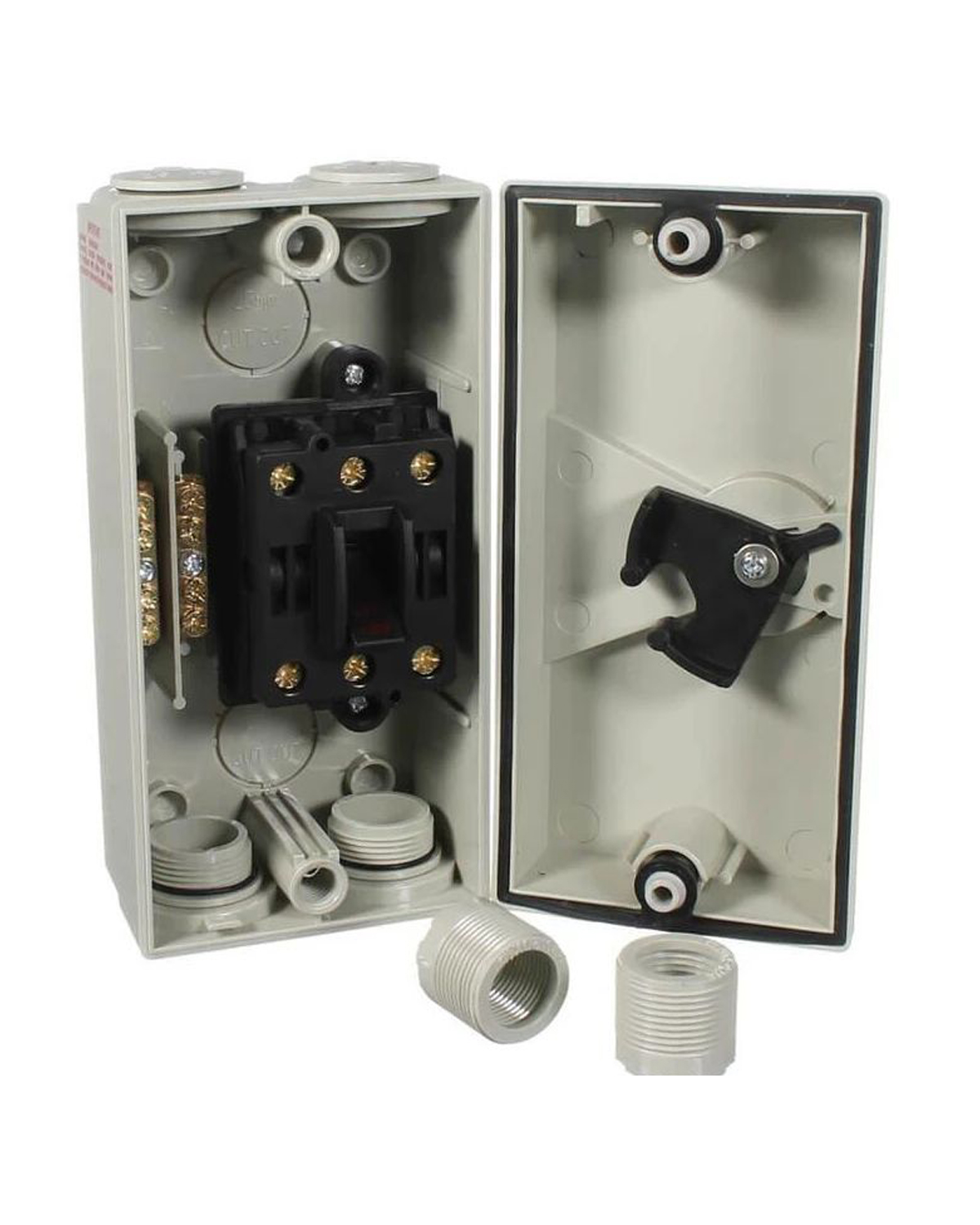

Electricians and Air conditioner installers find these isolators easy to install and find the neutral link and earth link located inside very handy. The terminals are large and will easily clamp down on 6mm – 8mm cable if required.

Features:

Amperage: 40amp
3 Phase
The isolator switch complies with IEC/EN60947-3 and AS/NZS60947-3 standard.

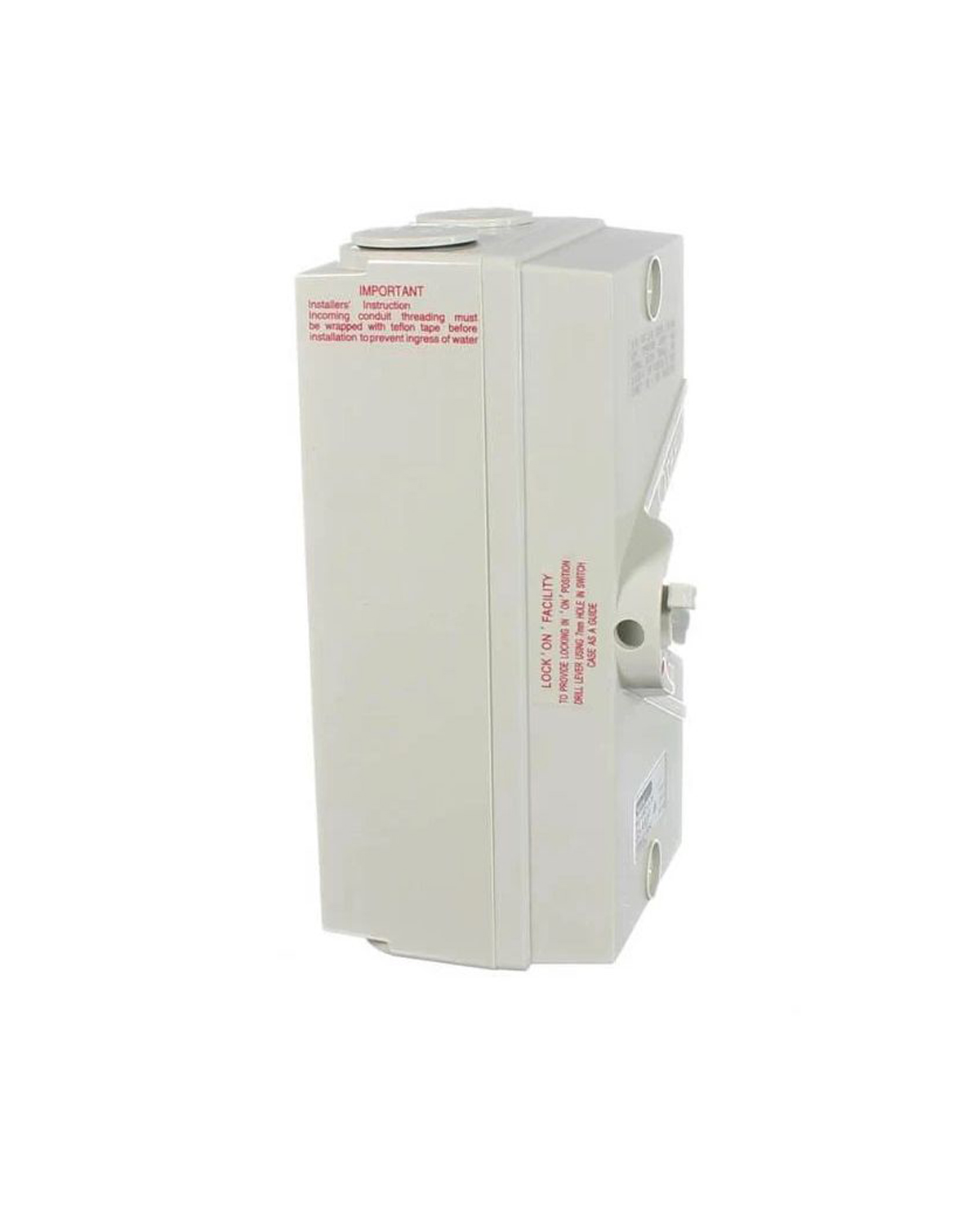

Facility for padlocking in both on and off position provided, thereby enabling conformity to the electricity at work regulations.
The enclosure is made of high impact polycarbonate plastic material combining good insulation properties with strength, durability and style.

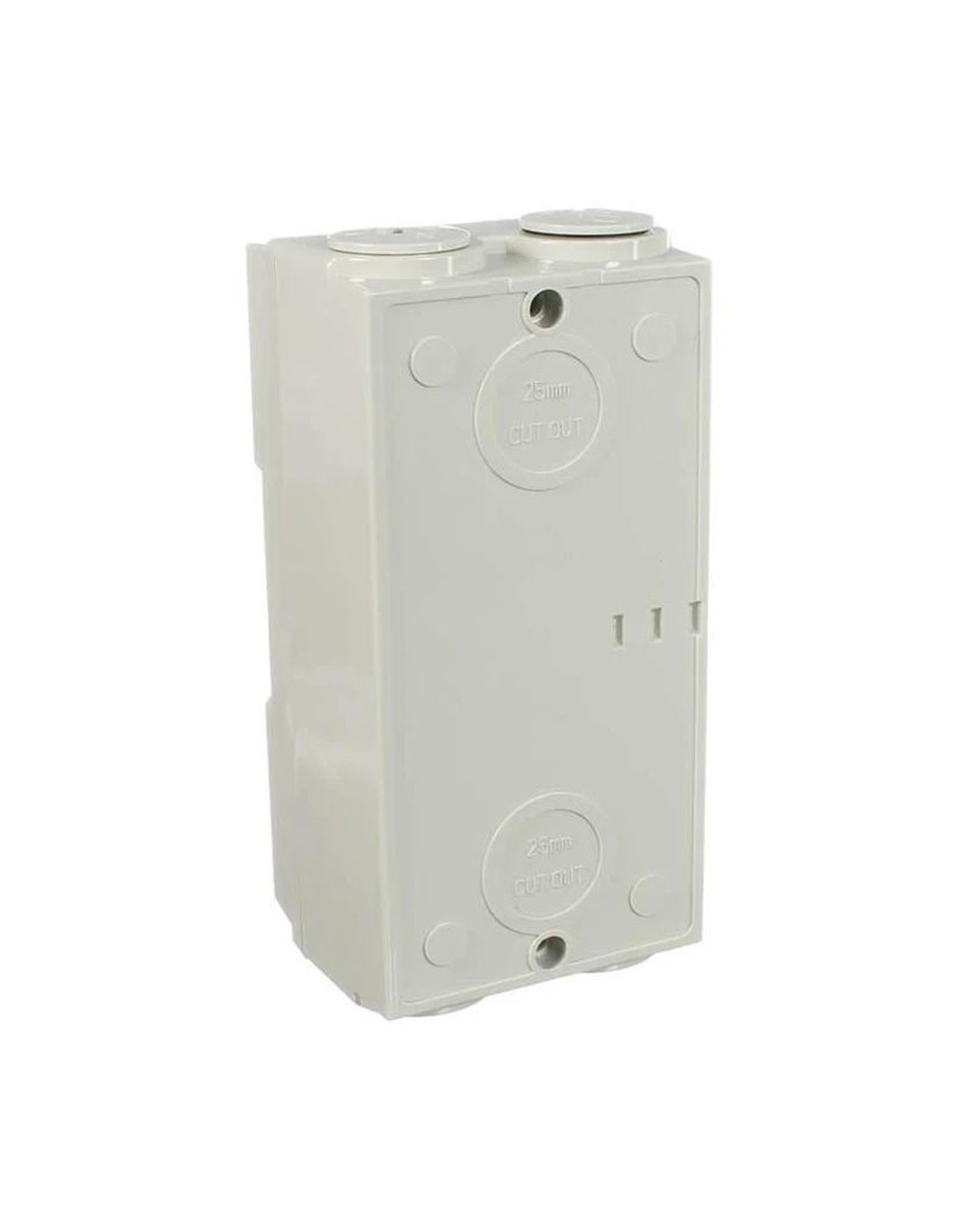

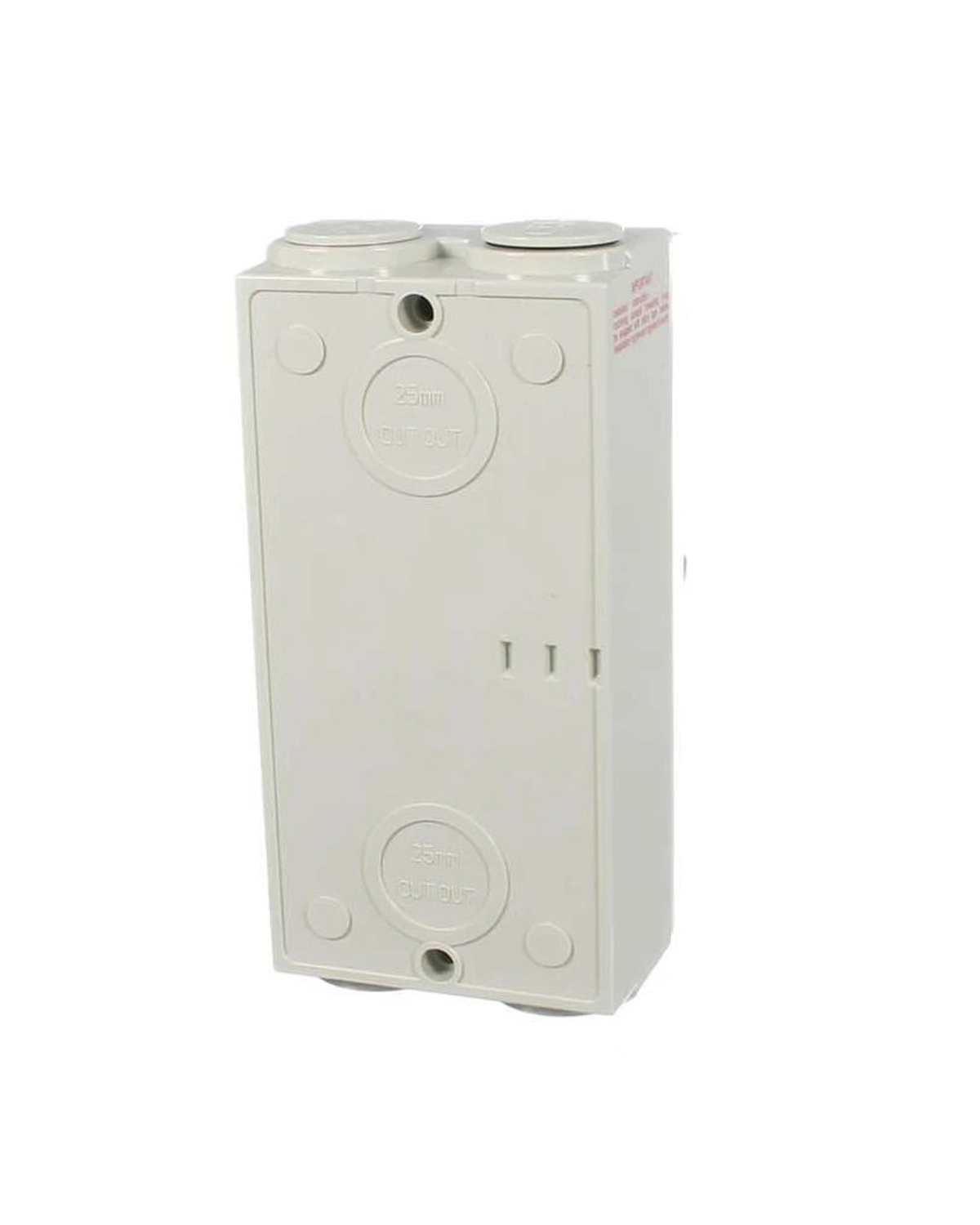

2 × 25mm screwed entries on top of mounting block
2 × 25mm screwed entries on bottom of mounting block
Silica gel basket seal is used between lid and base to provide environmental protection.
Supplied with two 25 to 20mm reducers for optional installation to 20mm conduit.
IP66 Rating prevents water and dust ingress.
Width: 84mm
Height: 84mm
Length: 174mm
