CLIPSAL Compatible Cabac S-Click Rotary Digital Dimmer 2-Wire HNS630DT

Description

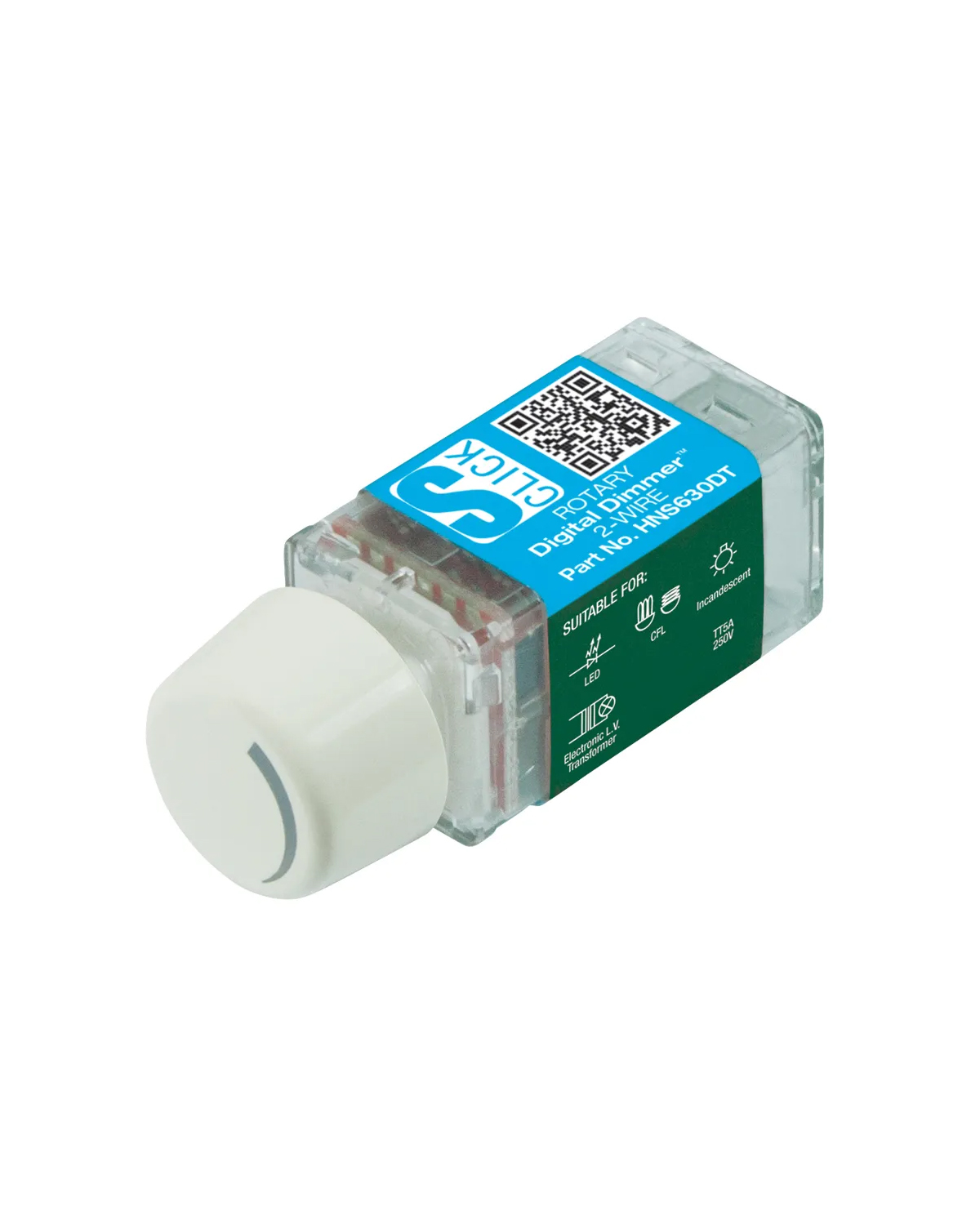

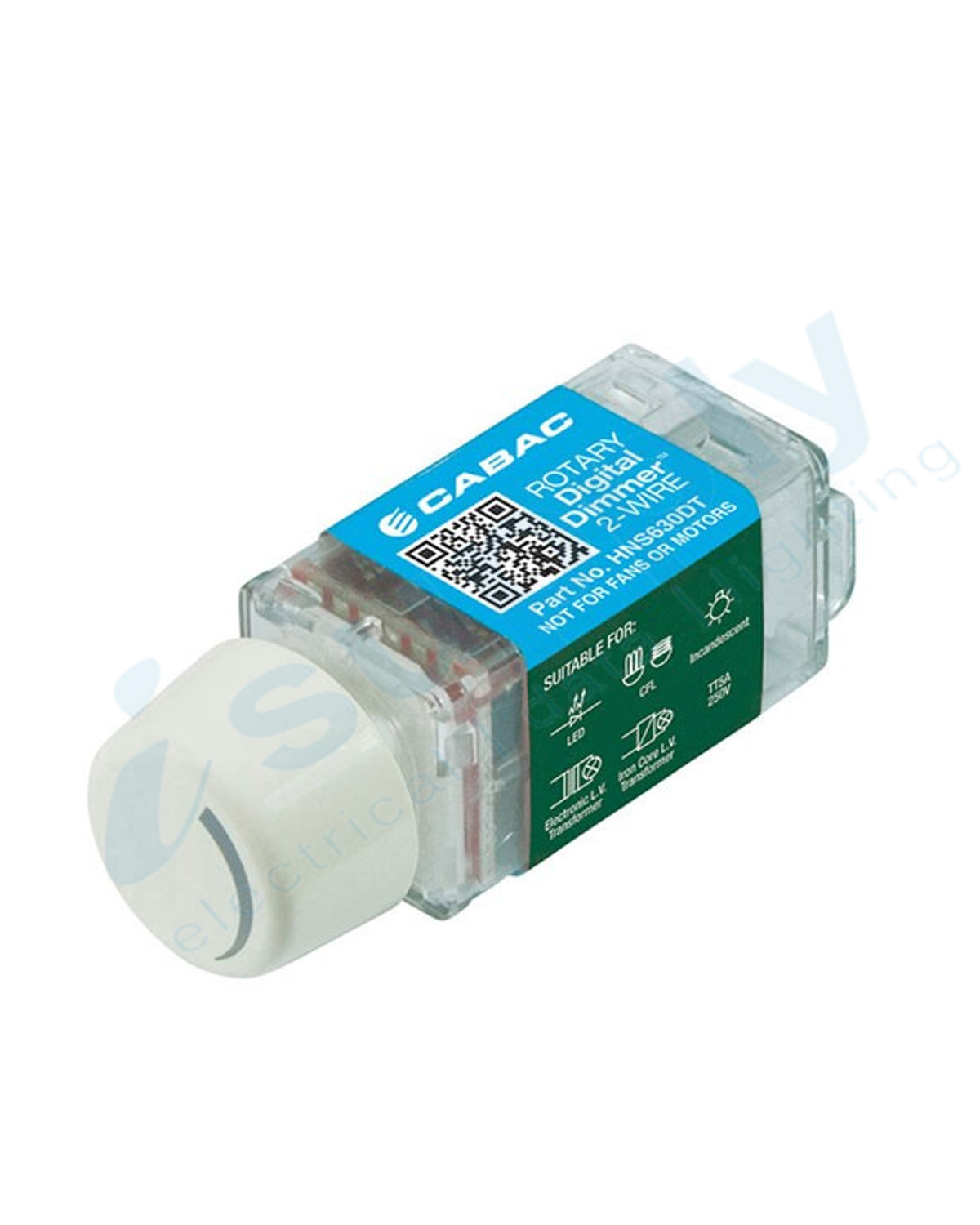

S-Click™ Rotary Digital Dimmer™ 2-Wire

The Rotary Digital Dimmer is perfect for dimmable LED lighting.

Compatible with dimmable LED and CFL dual switch, Incandescent, 240V Halogen, LV Halogen – Electronic and Iron Core*.

Digital Dimmer Features
• Rugged – Over Current, Over Voltage, Over Temperature protection
• Retains dimming setting after power loss
• Patented ripple tone rejection
• Linear dimming response
• Separate ON/OFF switch required
• Compatible with S-Click 3-Wire Timers and Switches
• Programmable minimum brightness
• Suits both HPM and Clipsal wall plates –knobs included
• NOT SUITABLE FOR FANS AND MOTORS
• SUITABLE FOR DUAL SWITCHING

Note: Separate ON/OFF switch required. 2-Wire not suitable for fans or motors. Patent pending design

* Compatible with Atco & Clipsal transformers when loaded to 75% of their rated output. Refer to the lamp compatibility chart.

Conformant Standards
Certified to AS/NZS 60669.2.1, CISPR15, AS/NZS 3100

Technical Data
See manual under Technical Data

Ordering Information
Part No. HNS630DT
