CLIPSAL Compatible Cabac S-Click Mech Booster Relay 3-Wire 240V 10A HNS010RL

Description

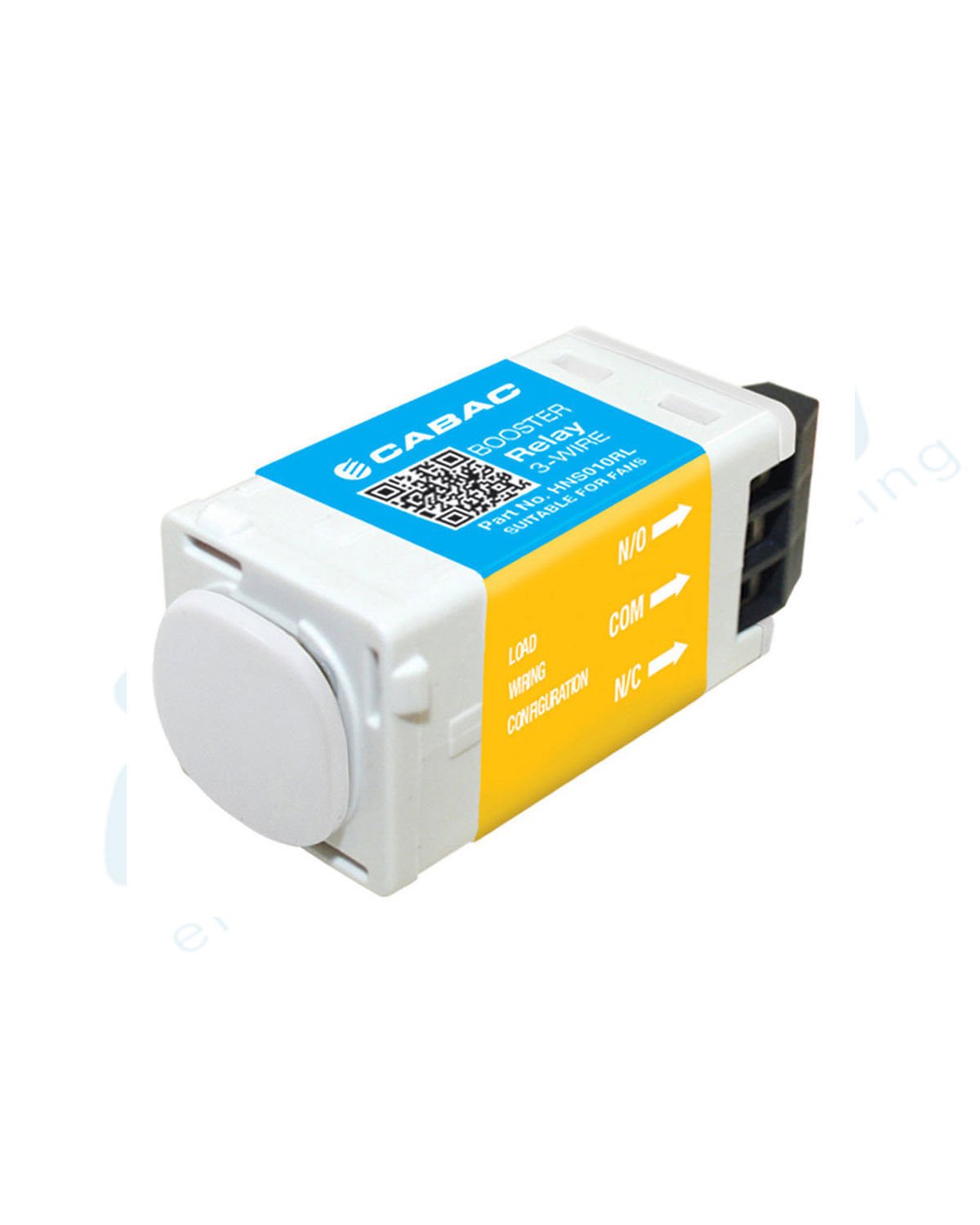

S-Click™ Mech Booster Relay 240V 10A

The S-Click mech timer and switch range is a versatile range of products specifically designed to manage power use in the domestic environment but can also be used in commercial applications.

The modular approach allows for flexible use of the timers and switches in a wide range of applications, whilst preserving a modern style suitable for any décor.

Developed, Designed and Manufactured in Australia at Hendon South Australia, all units comply with Australian EMC Emission and Safety Standards requirements.

Caution: The 2-Wire Timer switches cannot be used for fans, motors, or iron core ballasts. The switching of inductive loads requires use of the 3-Wire series.

Suggested Applications: Large pool pumps, electrical motors

Mech Booster Relay Features
• Suitable for fans, motors and iron core ballasts
• Booster relay
• Used in conjunction with HNS440TM, HNS450TM or HNS460SW
• Switches 230V 10A
• 2400W
• 1200VA
• 6AX
• Can be normally open or normally closed

Dimensions: 53mm in length (including button)

Ordering Information
Part No. HNS010RL

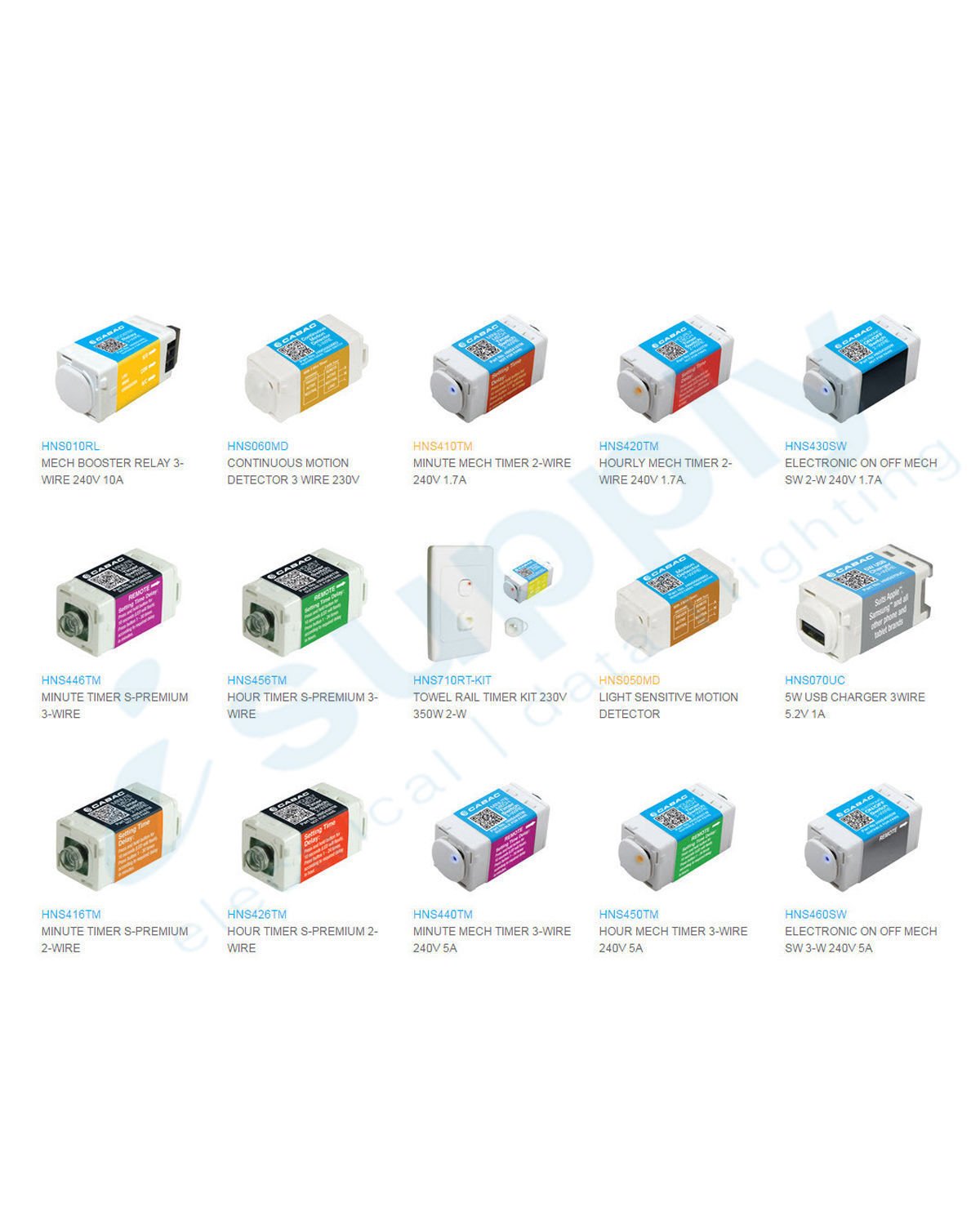

Also available

Part No. Description HNS440TM Minute Mech Timer 3 Wire 240V 5A HNS450TM Hour Mech Timer 3 Wire 240V 5A HNS460SW Electronic On/Off Mech Switch 3 Wire 240V 5A
