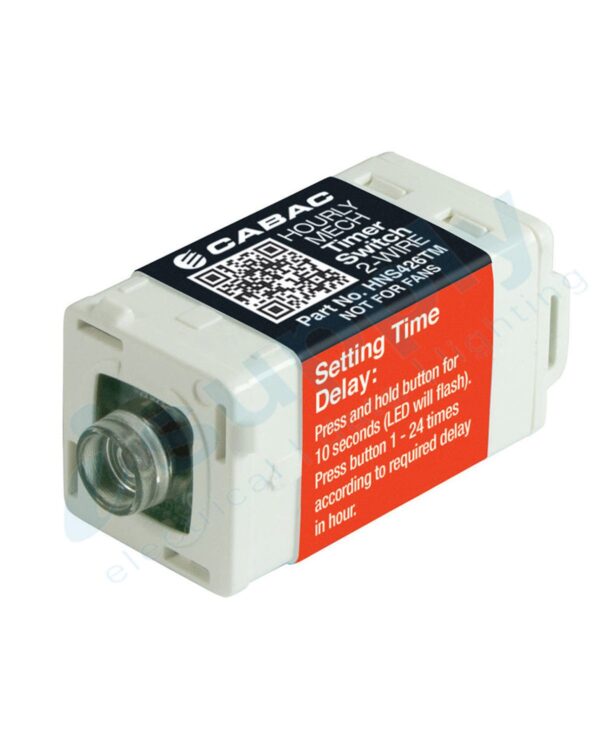

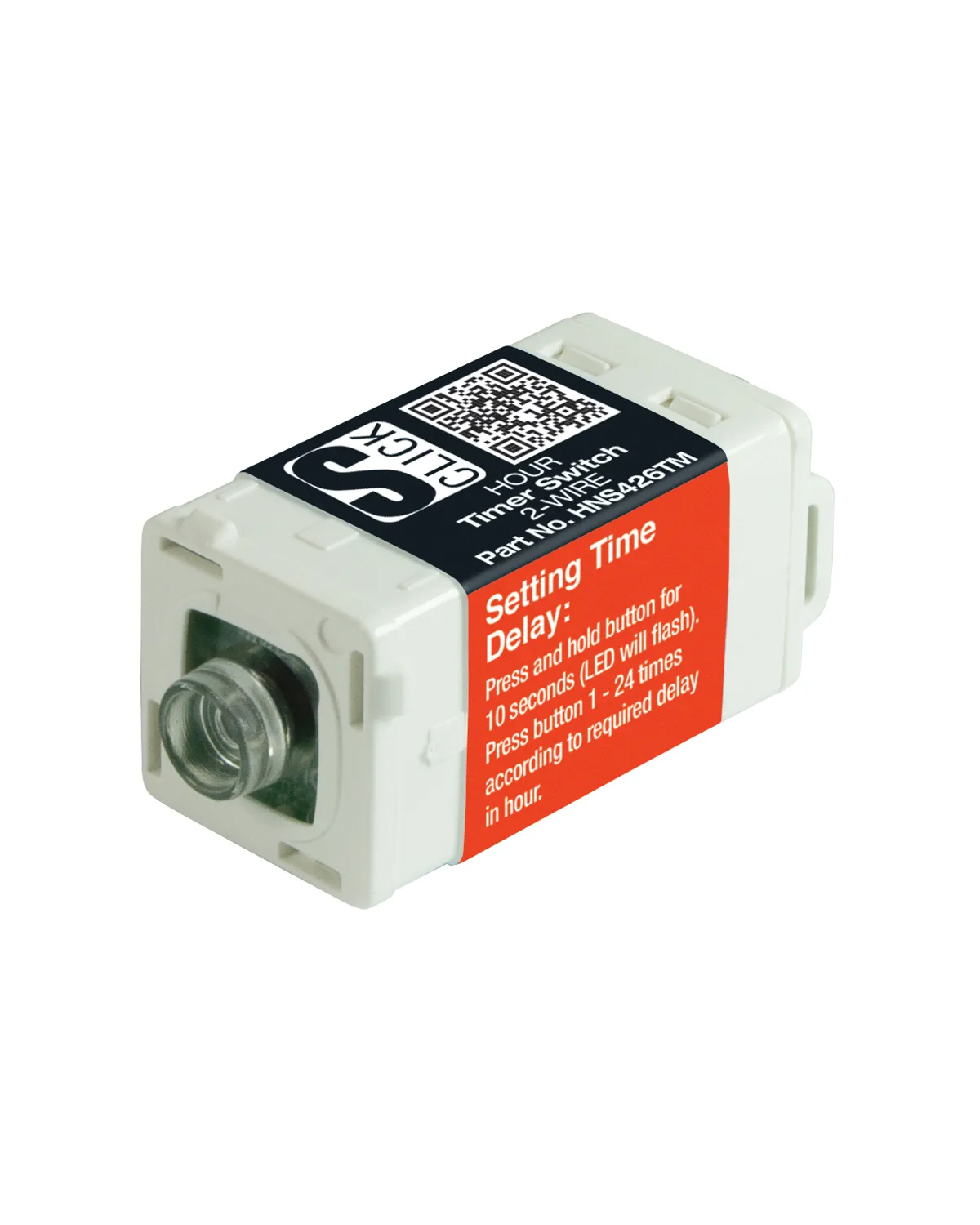

CLIPSAL Compatible Cabac S-Click Hourly Timer S-Premium 2-Wire (Clipsal Saturn) HNS426TM

Description



S-Click™ Hourly Timer S-Premium 2-Wire (Clipsal Saturn™ Compatible)

This Hourly Mech Timer 2-Wire Switch suits Clipsal Saturn style wall plates.

Suggested applicatons: heated towel rail (<400W), heated mirrors, security lighting, garden and decorative lighting.

Easy to use and set:

• Tap on tap off

• 1-24 hour time out

• Sustained press – double timeout up to 24 hours max.

• Hold to 10 Second to enter Program Mode

• 10 minute timeout warning

• Amber LED

Hourly Mech Timer Switch Features

• Suits Clipsal Saturn style wall plates

• Supports Timer and Boost modes of operation

• Amber LED indicates device status

• User programmable time-out period

• Programmable in 1 hour increments from 1 to 24 hours

• When ON – quick tap turns power OFF

• Quick LED indicator flashing within 10 minutes of time out provides expiry warning

• Retains setting even after loss of power

• Remote switch compatible

• Time set to 1 hour out of the box

Caution: The 2-Wire Timer switches cannot be used for fans, motors, or iron core ballasts. The switching of inductive loads requires use of the 3-Wire series.

Technical Data

See manual under Technical Data

Load Compatibility



Type Yes/No Incandescent / 240V Halogen Yes Fluorescent Tube with Electronic Ballast Yes Compact Fluorescent Lamps Yes* Electronic Transformer Yes LED Yes* Wirewound Transformer No Fan Motors No Fluorescent Tube with Iron Core Ballast No

* Subject to manufacturer’s recommendations, lamps suitable for electronic switches only.
Ordering Information
Part No. HNS426TM
