CLIPSAL Compatible CABAC Light Sensitive Motion Detector 3-Wire HNS050MD

Description

S-Click™ Light Sensitive Motion Detector 3-Wire

Australia’s first Mech based PIR sensor that fits all popular wallplates.

The HNS050MD is a light sensitive movement detector while the HNS060MD senses movement only.

Features and Benefits
• Senses movement and light to trigger S-Click timer switches
• Automatically turn on power when movement in a 2m radius is detected
• Save power by turning power ON when movement is detected and OFF after a predetermined time
• Two detector versions for slightly different applications
• Fits in standard HPM and Clipsal face plates (lenses included)
• Certified to Australian and New Zealand standards AS/NZS 3100 & CISPR 15
• Designed, engineered and manufactured in Australia
• Must be used with S-Click timer switches
• Timer switch still works

Note: 3-Wire must use neutral.

HNS050MD Features
• Light sensitive PIR detector
• Only Triggers if it is dark (less than 20 lux)
• Triggers when movement is detected within 2m (red LED Flashes)
• Use for work spaces and meeting rooms
• MUST be used with S-Click 2-Wire and S-Click 3-Wire timers switches HNS410TM, HNS420TM, HNS440TM or HNS450TM

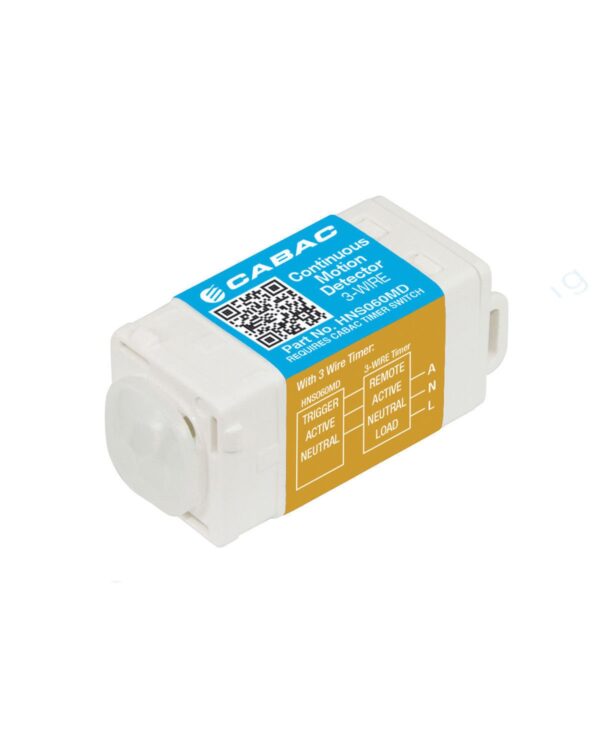

HNS060MD Features
• PIR detector
• Keeps triggering S-Click timer switch every time movement is detected within 2m (red LED flashes) regardless of light level
• Use for bathrooms and laundries
• MUST be used with S-Click 3-Wire timer switch HNS440TM or HNS450TM

Ordering Information

Part No. Description HNS050MD Light Sensitive Motion Detector 3-Wire HNS060MD Continuous Motion Detector 3-Wire 230V
