CLIPSAL Compatible CABAC Hour Timer S-Premium 3-Wire HNS456TM (Clipsal Saturn Compatible)

Description

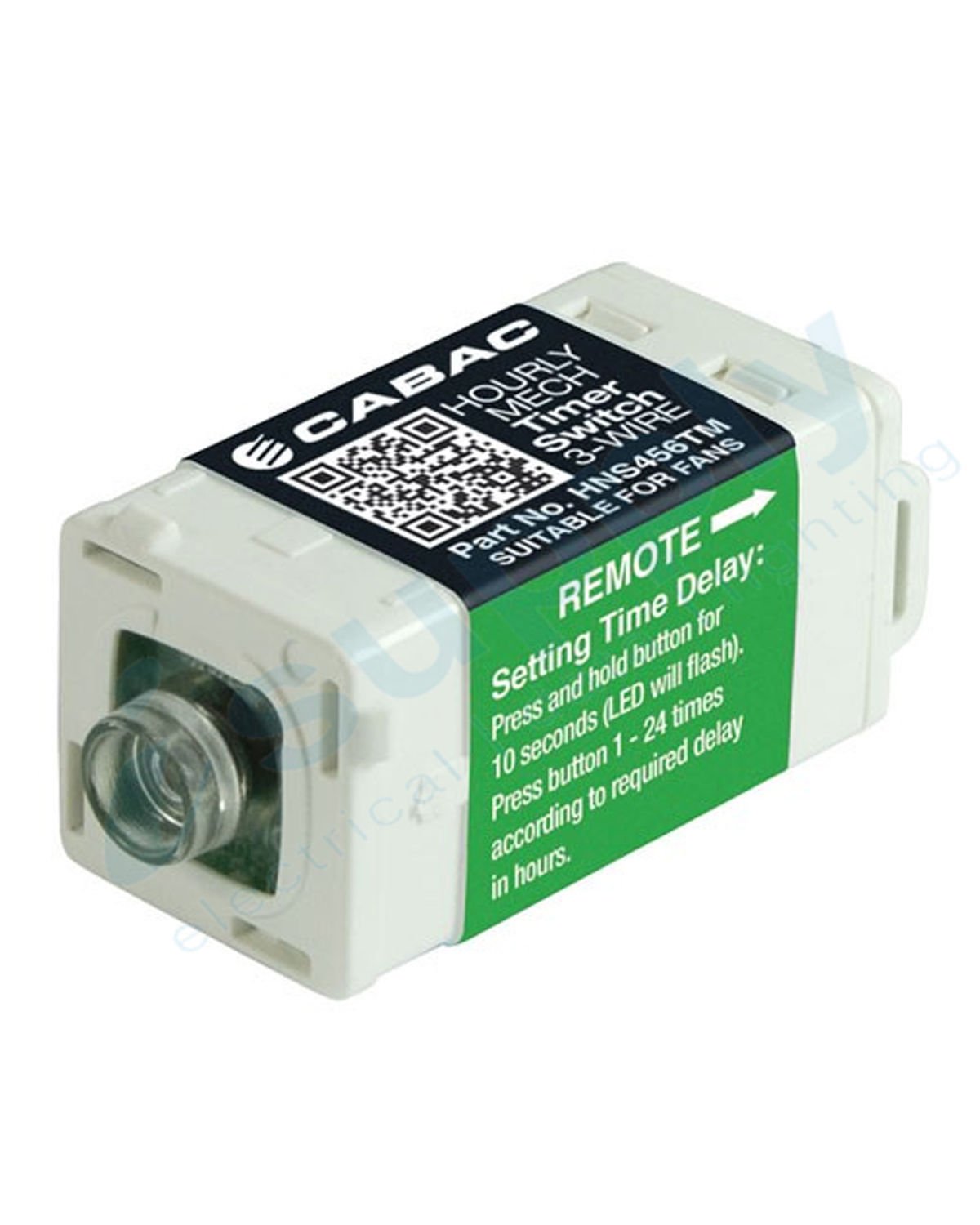

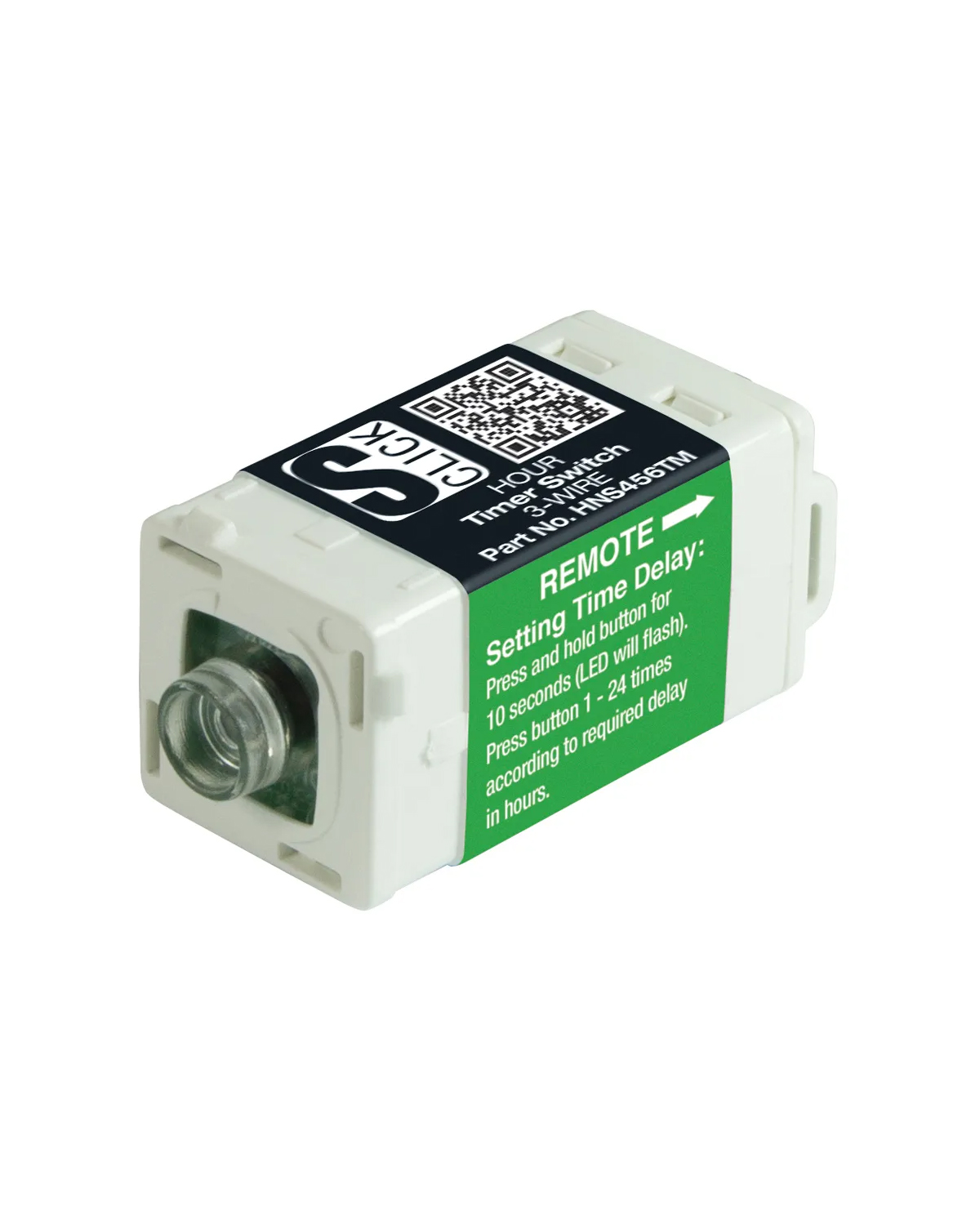

Hour Timer S-Premium™ 3-Wire (Clipsal Saturn™ Compatible)

This Hourly Mech Timer Switch 3-Wire suits Clipsal Saturn style wall plates.

Suggested applications: Small pool pumps, water features, garden and decorative lighting.

Easy to use and set:

• Suitable for fans, motors and iron core ballasts

• 1-24 hour time out

• Quick tap turn on – quick tap turn off

• Sustained press – double timeout up to 24 hour max

• Hold to 10 second to enter program mode

• 10 minute timeout warning

• Amber LED

Hourly Mech Timer Switch Features

• Suits Clipsal Saturn style wall plates

• Supports Timer and Boost modes of operation

• Amber LED indicates device status

• User programmable time-out period

• Programmable in 1 hour increments from 1 to 24 hours

• When ON – quick tap turns power OFF

• Quick LED indicator flashing within 10 minutes of time out provides expiry warning

• Retains setting even after loss of power

• Remote switch compatible

• Time set to 1 hour out of the box

Caution: The 2-Wire Timer switches cannot be used for fans, motors, or iron core ballasts. The switching of inductive loads requires use of the 3-Wire series.

Technical Data

See manual under Technical Data

Load Compatibility



Type Yes/No Incandescent / 240V Halogen Yes Fluorescent Tube with Electronic Ballast Yes Compact Fluorescent Lamps Yes* Electronic Transformer Yes LED Yes Wirewound Transformer Yes Fan Motors Yes Fluorescent Tube with Iron Core Ballast Yes

* Subject to manufacturer’s recommendations, lamps suitable for electronic switches only.

Ordering Information
Part No. HNS456TM
