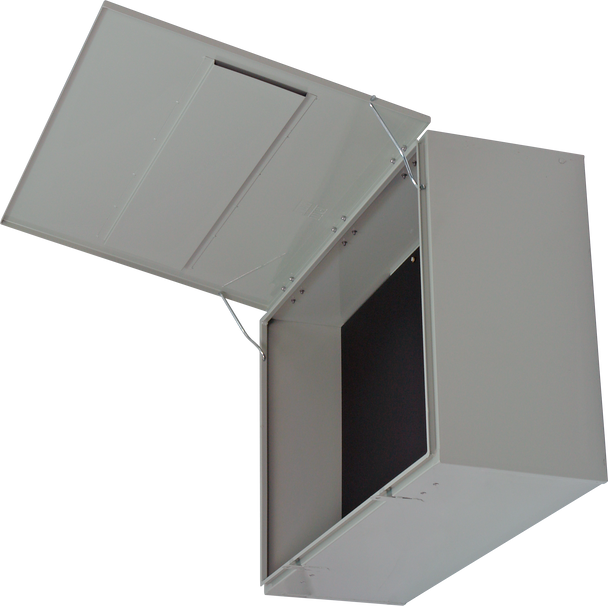

Digitek 27MB2436UA 24 Inch x 36 Inch Large ACT/NSW Meter Box 27MB2436UA

Description

Built for Large-Scale Metering Applications

The Digitek 27MB2436UA is designed for electricians and contractors handling residential developments, commercial installations, and utility metering projects requiring a dependable large-format enclosure. Manufactured from 1.2mm galvanised steel sheets to AS1397 standards, this meter box delivers the durability needed for demanding Australian job sites while helping protect internal electrical equipment from everyday environmental exposure.

Its removable reinforced top-hinged door and dual support arms improve on-site access during installation and maintenance, helping reduce downtime and improve workflow efficiency. Multiple cable knockouts across the top, bottom, and rear also provide flexibility when routing conduits and incoming services across a range of project layouts.

Reliable Compliance for Australian Trade Installations

Designed specifically for ACT and NSW applications, the Digitek 27MB2436UA meter box supports compliant installations with trade-grade construction features suited to professional electrical work. The enclosure is IP23 rated to AS1939 and includes a pre-installed undrilled insulating panel compliant with AS1795/IEC60893 requirements.

Corrosion-resistant paint applied to all welds, combined with a powder-coated finish, helps improve long-term durability in outdoor and semi-exposed environments. Riveted hinges and reinforced tabs provide added structural integrity, while the integrated M5 x 20 earth stud assists with grounding requirements on site.

For added site security, the enclosure includes dual padlock locking points, making it suitable for installations where controlled access and equipment protection are important considerations.

Trade Convenience That Keeps Projects Moving

Electrical contractors working to tight schedules need reliable stock access and fast procurement. The Digitek 27MB2436UA meter box is suited for projects requiring dependable trade-grade enclosures backed by competitive wholesale supply and efficient delivery options across Australia.

The large internal space and flexible knockout configuration make it easier to manage varying installation requirements without additional modification work, saving valuable labour time on site. Its protective cardboard packaging also helps reduce the risk of transport damage before installation.

Ideal for contractors managing multiple jobs, townhouse developments, commercial fit-outs, and metering upgrades, this enclosure supports smoother installations while helping maintain compliance and project timelines.

Key Specs

• Model: Digitek 27MB2436UA
• Product Type: Large ACT/NSW Meter Box
• Dimensions: 639mm x 960mm x 330mm (H x W x D)
• Construction Material: 1.2mm Galvanised Steel Sheets (AS1397 Standard)
• Riveted hinges and tabs
• Corrosive resistant paint on all welds
• Powder coated finish
• Removable top-hinged reinforced door
• Dual left/right supporting door arms
• IP23 Rated – AS1939
• Earth Stud: M5 x 20
• Dual padlock locking points (padlock not included)
• Cable knockouts: 20–51mm (bottom, top, back)
• Packaging: Protective cardboard box
• Included accessory: Pre-installed undrilled insulating panel (AS1795/IEC60893)

Ideal For

• Licensed electricians
• Electrical contractors
• ACT and NSW metering installations
• Residential developments
• Commercial fit-outs
• Multi-dwelling and townhouse projects
• Metering upgrades and switchboard projects
• Maintenance and facilities teams
