Securview Victory Series Securview 8 Channel Mobile HDCVI Recorder with GPS, 4G and WiFi MXVR-GPS8GW
$2,408.64 inc GST
Specifications
General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Video Input
8 channels HDCVI / Analogue (M12, 4-pin), 4 channels IP (RJ45)
Camera Configuration (Coaxial)
8 channels, up to 2.0MP / 1080p resolution
Camera Configuration (Network)
4 channels, up to 2.0MP / 1080p resolution (via 4 x RJ45 input, or via 6-pin ETH2 port cable/switch sold separately)
Display
Video Output
1 x VGA (M16, 10-pin), 1 x Composite (M12, 4-pin), 1 x Coaxial (M12, 7-pin)
Display Resolution
1920 x 1080 to 800 x 600
Display Split
1 / 4 / 8 / 9 / 16
OSD
Channel, time, GPS position, license plate
Recording
Recording Resolution
Main: Up to 1080p (1920 x 1080), Sub: Up to D1 (720 x 576)
Frame Rate
1 ~ 25fps
Video Compression
H.265 / H.264
Playback Sync
1 / 4
Backup Modes
USB Device / Network
Interface
Storage Capacity
2 x 2.5?? SATA ports for HDD/SSD, 1 x SD card slot, up to 512GB
Alarm Interface
Up to 8 channels local input and 1 channel pulse input, 1 controllable 12V 0.75A output, 1 relay output
Audio Interface
Supports HDCVI audio cameras and 1 external microphone input
USB Interface
2 x USB3.0 (front), 1 x USB2.0 (rear, via extend port)
GPS
GPS/GLONASS Satellite Positioning, 1 x SMA GPS Antenna
Auxiliary Inputs
2 x RS232, 1 x RS485, 1 x CAN
Network
Ethernet
1 x RJ45 port 100/1000M (front), 4 x RJ45 port 100M & 1 x 6-pin ETH2 port (rear)
WiFi
Built-in WiFi module, 1 x 2.4GHz WiFi SMA Antenna
Network Functions
TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices; PC applications and via web interface
Environmental
Power Supply
6 ~ 36VDC
Power Consumption
<12W (no peripherals)
Operating Conditions
-30 ~ +70?C / 0~90%RH

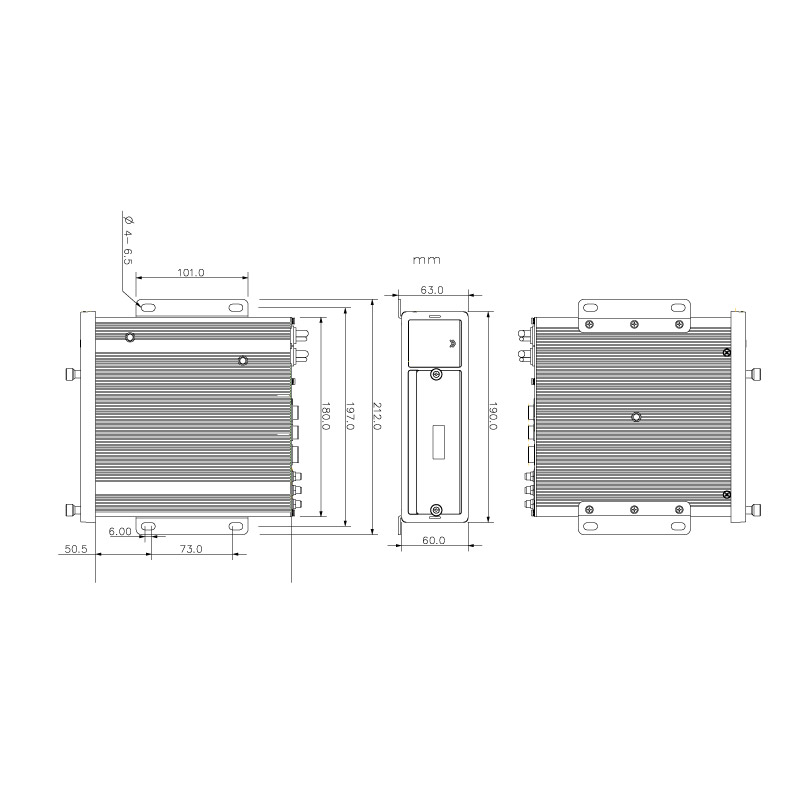

Dimensions (WxDxH)
180 x 190 x 50mm / 1 DIN (Front Panel 190 x 60mm)
Weight
3.2kg (without HDD)
Warranty (Years)
4
Shipping Weight and Dimensions
Includes product packaging
Width
0 mm
Height
0 mm
Depth
0 mm
Weight
0.00 kg
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description

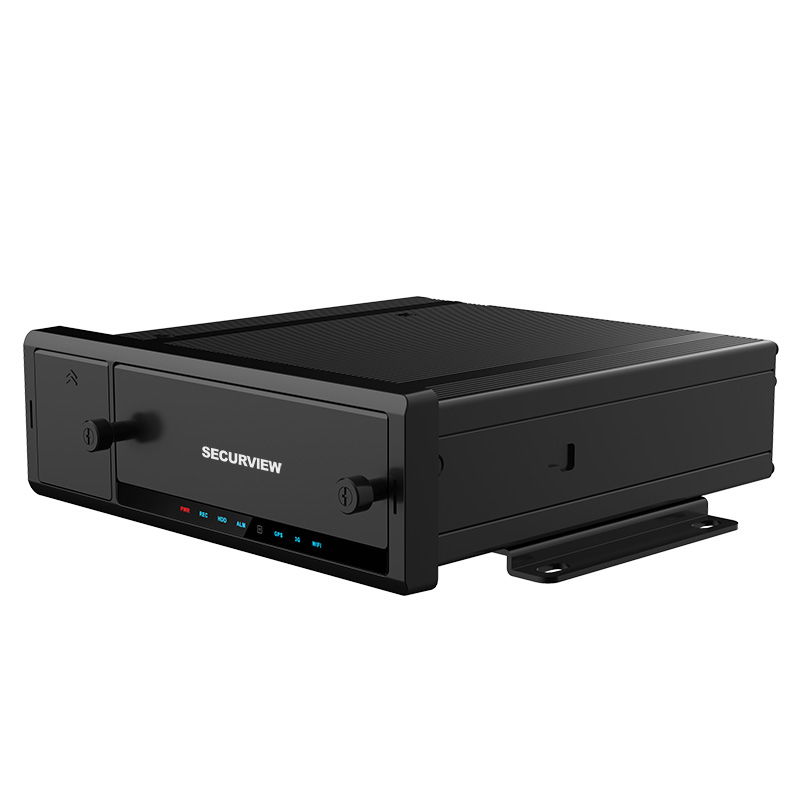

The MXVR-GPS8GW is an 8 channel mobile HDCVI DVR with support for a wide range of mobile cameras to suit your vehicle surveillance needs.
A part of the Mobile Series from Securview, this model combines Full HD video, precision GPS, 4G and WiFi connectivity to deliver peace of mind when on the road. This series offers wide compatibility with all mobile camera technologies, including HDCVI, AHD, TVI, composite or IP* cameras, so you can create a vehicle video solution to your exact requirements.
Product features:
? Records 8 channels at 2.0MP / Full HD 1080p up to 25fps
? Support for HDCVI, HDTVI, AHD or analogue cameras (via M12, 4-pin inputs)
? Support for 4CH additional PoE IP cameras via RJ45 inputs or via external switch (sold separately)
? GPS tracking coordinate overlay on footage, GPS/GLONASS, includes GPS antenna
? Built-in 4G radio for remote viewing & management (standard size SIM card sold separately)
? Built in 2.4GHz WiFi module for PC web-interface access, includes WiFi antenna
? Storage interface 2 x 2.5” SATA HDD or SSD and standard SD card slot up to 512GB
? VGA (M16, 10-pin connector),composite (M12, 4-pin) or coaxial (M12, 7-pin) display outputs
? Up to 8 alarm inputs and 1 pulse input, with 1 relay output and 1 controllable output
? Supports HDCVI camera audio inputs as well as 1 external microphone input
? Features RS485, RS232 and CAN auxiliary inputs
? Robust, lockable housing with vibration-dampening design
? Heavy duty M12 video input connectors
? Single DIN size for standardised installation in vehicles
