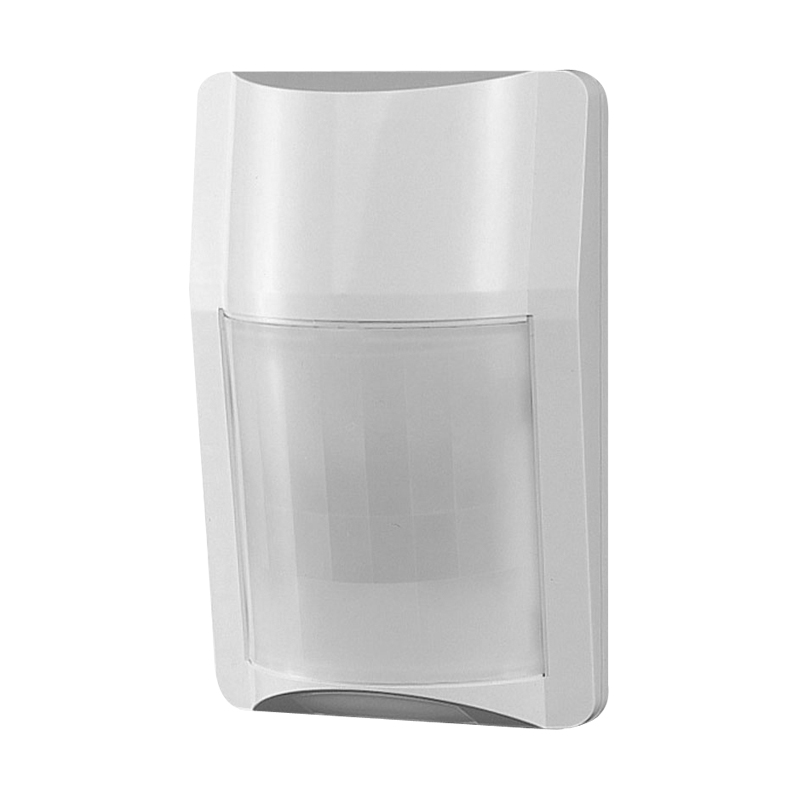

Takex Wide Angle PIR Sensor PIR-T45W
Takex Wide Angle PIR Sensor PIR-T45W - Image 2
Takex Wide Angle PIR Sensor PIR-T45W - Image 3

Takex Wide Angle PIR Sensor PIR-T45W

$70.97 inc GST

fast-delivery

Fast Shipping

On All Orders


Australian Company

Owned & Operated

worker

15+ Years

Industry Experience

30-days

Easy Returns

30 Days Peace Of Mind

20 in stock

SKU: PIR-T45W Categories: , ,

Description

The PIR-T45W PIR Sensor from Takex is built with infrared detection up to 11 meters and 84° wide angle field of detection to detect intruders. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal for indoor residential and commercial.

Product Features:

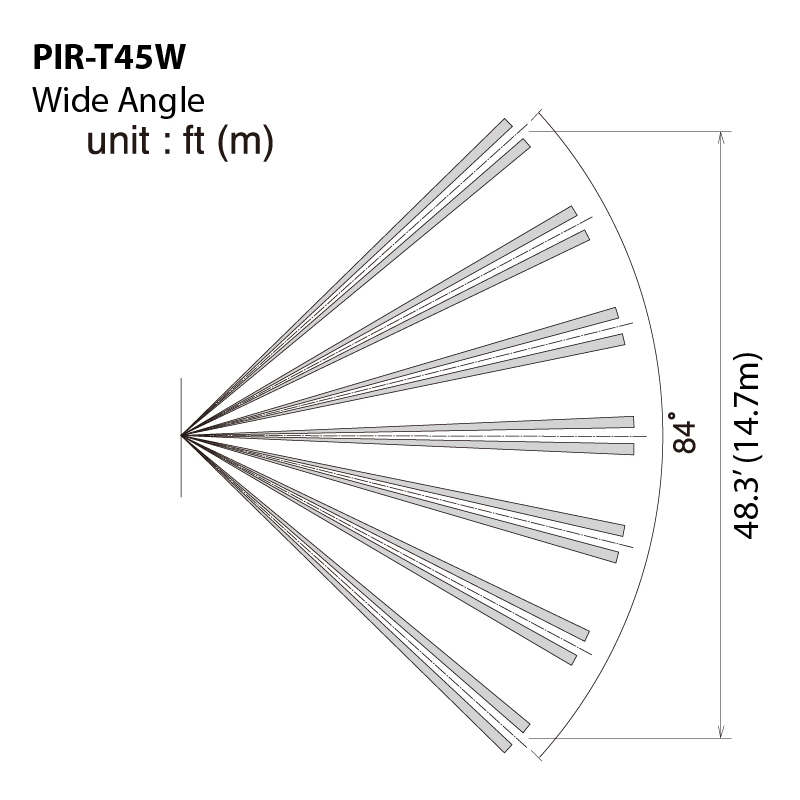

• Passive infrared detection up to 11m and 84° wide angle field of detection

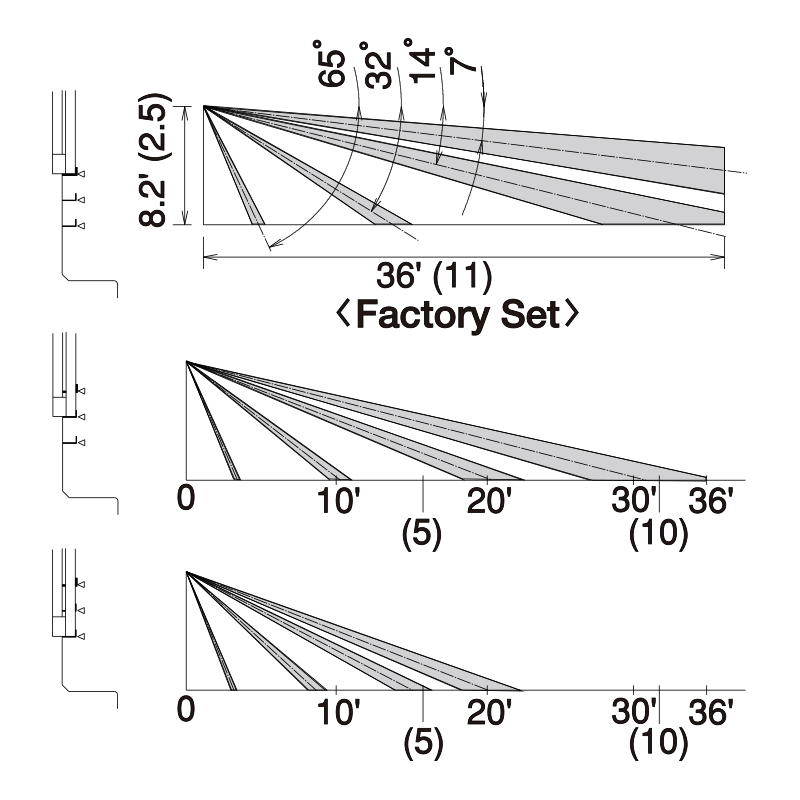

• Adjust the coverage area for different mounting heights
• Sensitive Zones – 18 pairs
• ABS Plastic housing built for indoor environments
• Input voltage: 9 ~18VDC
• Made in Japan

* Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)

Specifications

General
Infrared Type: Passive Infrared – Wide Angle
Infrared Detection Range: 11m , 84° (field of detection)
Transmitting Current: 25mA Max.
Sensitive Zones: 18 pairs
Pet Immunity: No
Alarm Output: Yes
Environmental
Input Voltage: 9~18VDC
Operating Conditions: -15°C ~ +55°C without condensation
Mounting Options: Wall / Ceiling (bracket sold separately)
Housing” ABS Plastic (Body) , PE Plastic (Lens)
Tamper Protection: Yes
Dimensions: 70 x 45 x 110mm
Other
Type: Motion Sensor
Warranty (Years): 1



Shipping Weight and Dimensions

Includes product packaging

Width: 120 mm
Height: 45 mm
Depth: 70 mm
Weight: 0.12 kg
