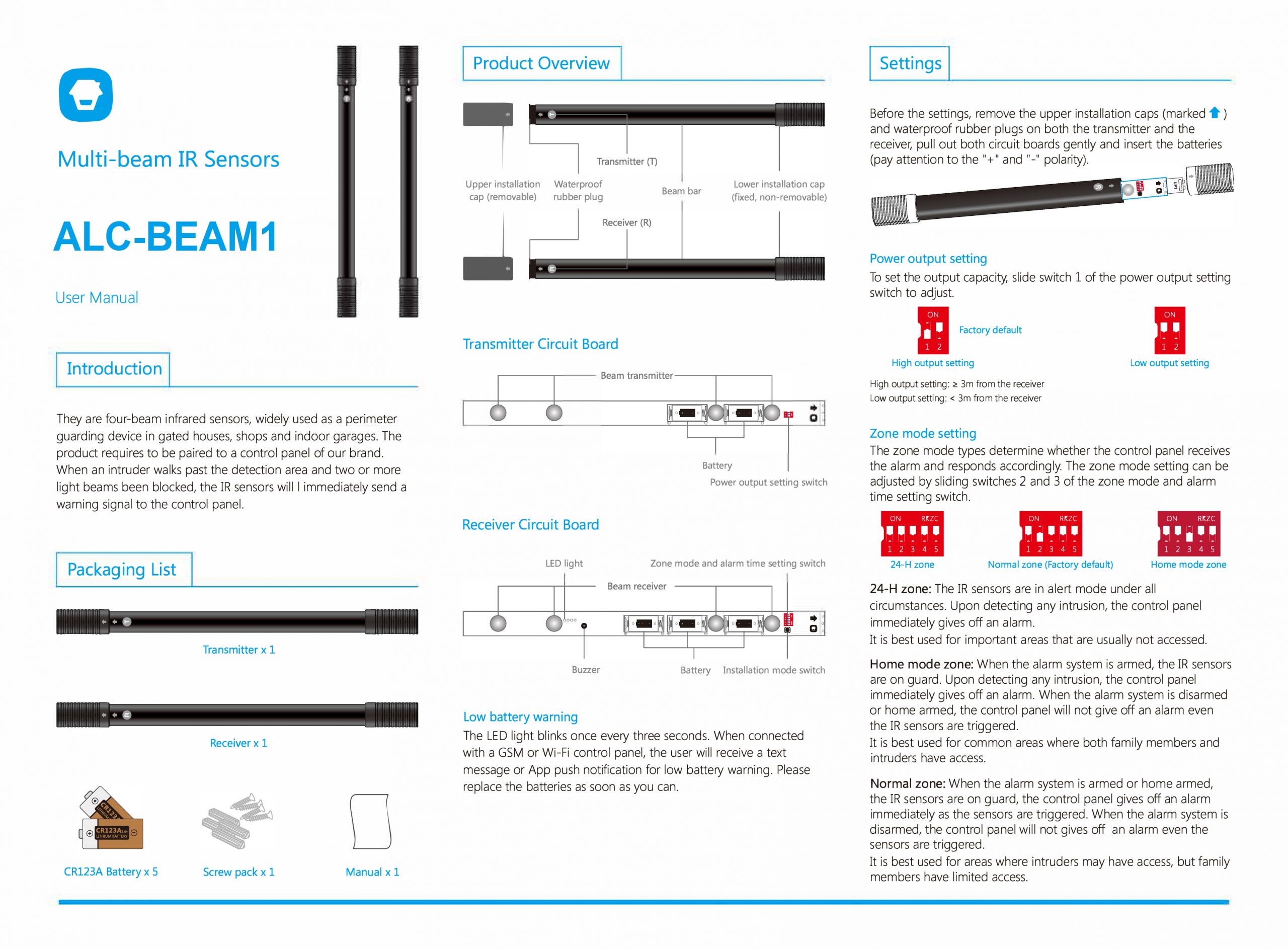

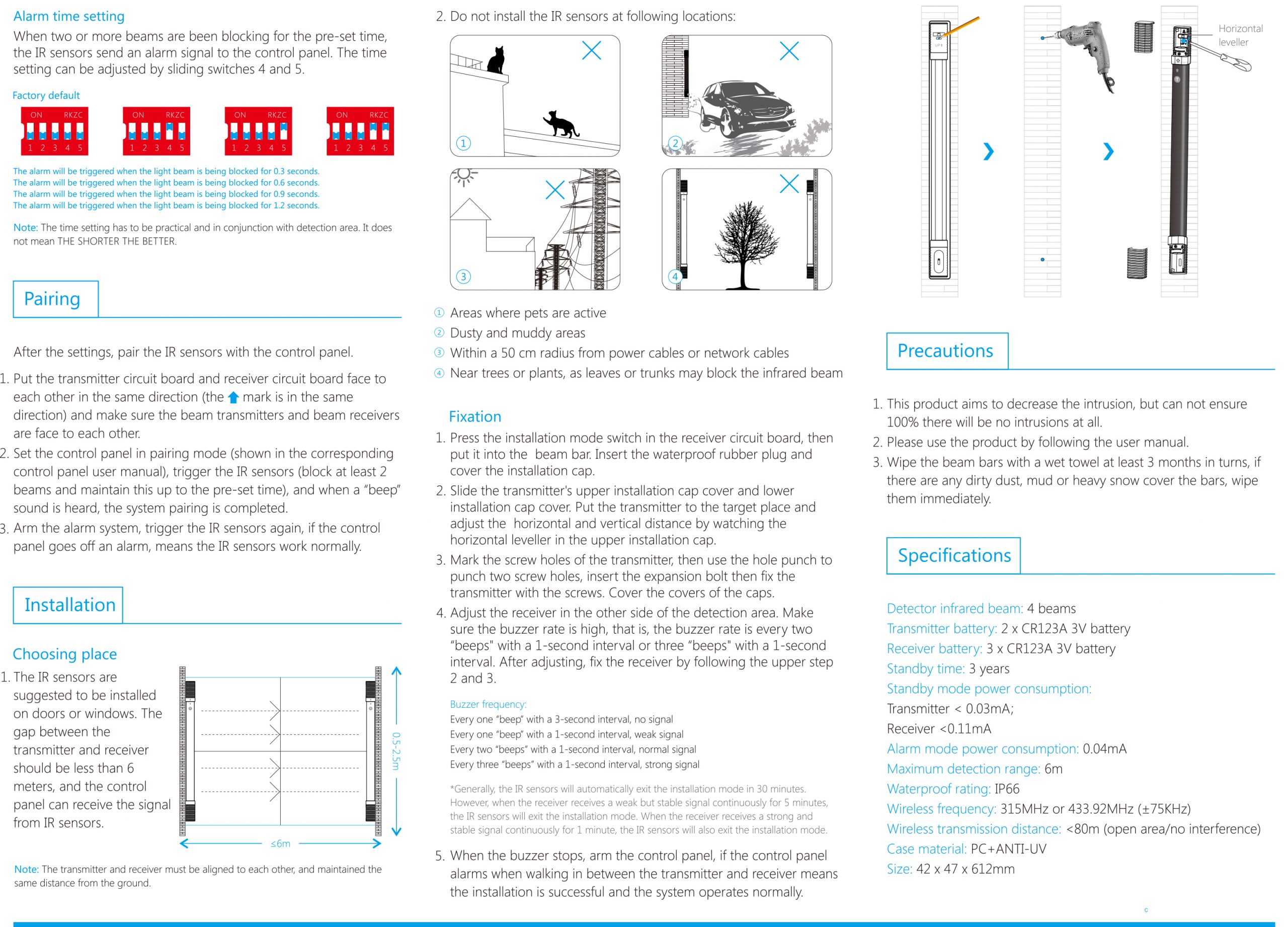

Watchguard Watchguard 2020 Wireless IR Multi-Beam Sensor ALC-BEAM1

The Watchguard 2020™ ALC-BEAM1 wireless infrared multi-beam sensor detects intrusion by creating a curtain of 4 x invisible infrared beams. It is ideal for use indoors or outdoors, on fences, balconies, garage doors and more.

Product features:

• Maximum detection range up to 6m

• Wireless frequency: 433.92MHz (±75KHz)

• Wireless transmission distance to WG2020 alarm up to 80m

• IP66 weather resistant & UV-resistant polycarbonate body for outdoor use

• Completely wireless: Battery standby life up to 3 years

• 2 x CR123A (transmitter), 3 x CR123A (receiver)

• Compact housing at 47mm x 47mm x 612mm

SPECIFICATIONS

General:

Detector Infrared Beam: 4 beams

Radio frequency: 315MHz or 433MHz

Alarm Detection Range: Up to 6m

Standby time: 3 years

Standby mode Power Consumption: Beam transmitter < 0.03mA, beam receiver <0.11mA Alarm mode Power Consumption: 0.04mA Environmental: Beam Receiver Battery: 2 x CR123A batteries Beam Transmitter Battery: 3 x CR123A batteries Ingress Protection: N/A Vandal Resistance: IP66 Housing: Polycarbonate (anti UV) and ABS Plastic Dimensions: 42 x 47 x 612mm Warranty (Years): 1 Shipping Weight and Dimensions

Includes product and packages

Width: 110mm

Height: 670mm

Depth: 55mm

Weight: 1.20kg
