Watchguard Indoor Hardwired Reed Switch (Brown) RSW-P1B
$24.12 inc GST
20 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description

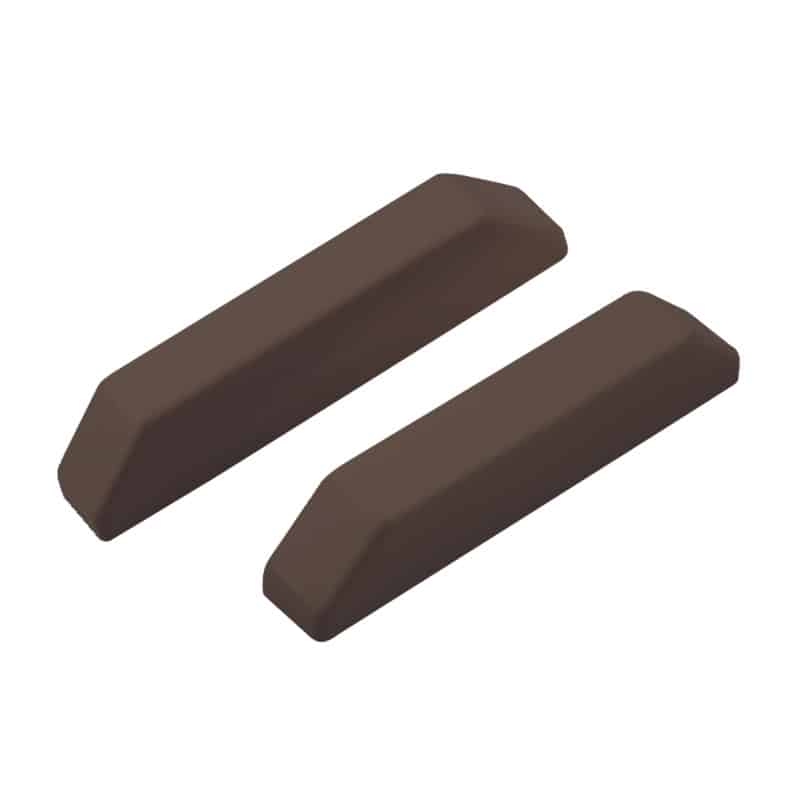

The RSW-P1B is a indoor hard wired reed switch, designed for window and door applications.
Product features:
• Brown indoor magnetic contact switch
• Magnet sensor gap, up to 19mm
• Normally closed (NC) reed switch output
• 3W maximum contact rating (up to 30V, 0.2A)
• Wide range 20~AWG, Ø0.81~0.51mm
• Surface Mounted, plastic construction

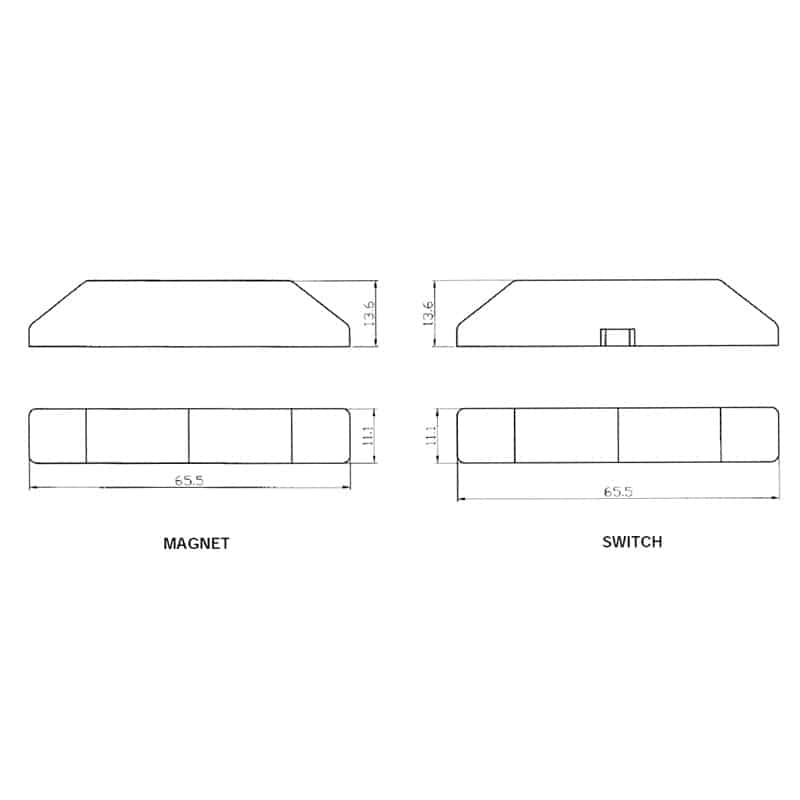

• Dimensions 65.5 x 13.6 x 11.1mm
Specifications
Contact: N/C
Dimensions: 65.5mm x 13.6mm x 11.1mm
Gap: 19mm
Max Current: 0.2A
Max Rating: 3W
Max Voltage: 30VDC
Type: Reed Switch
Warranty (Years): 1
Shipping Weight and Dimensions Includes product packaging
Width: 30 mm
Height: 20 mm
Depth: 90 mm
Weight: 0.22 kg
Additional information
| Manufacturer |
|---|
