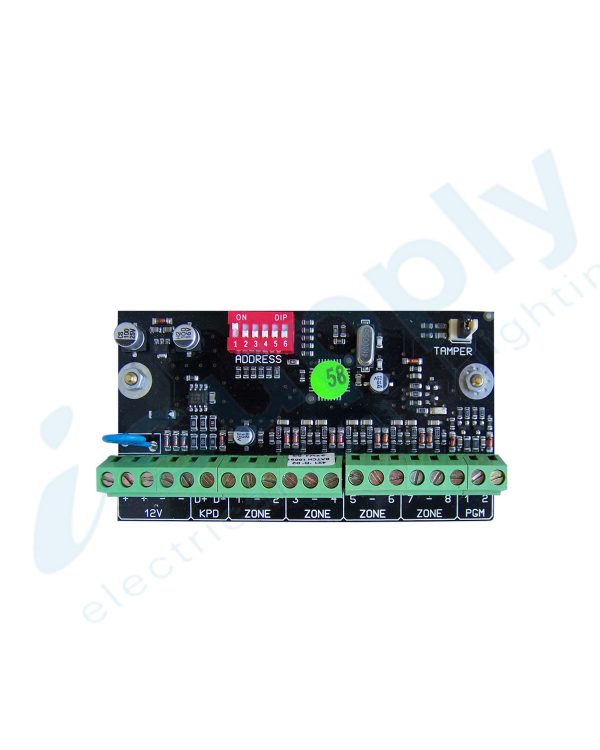

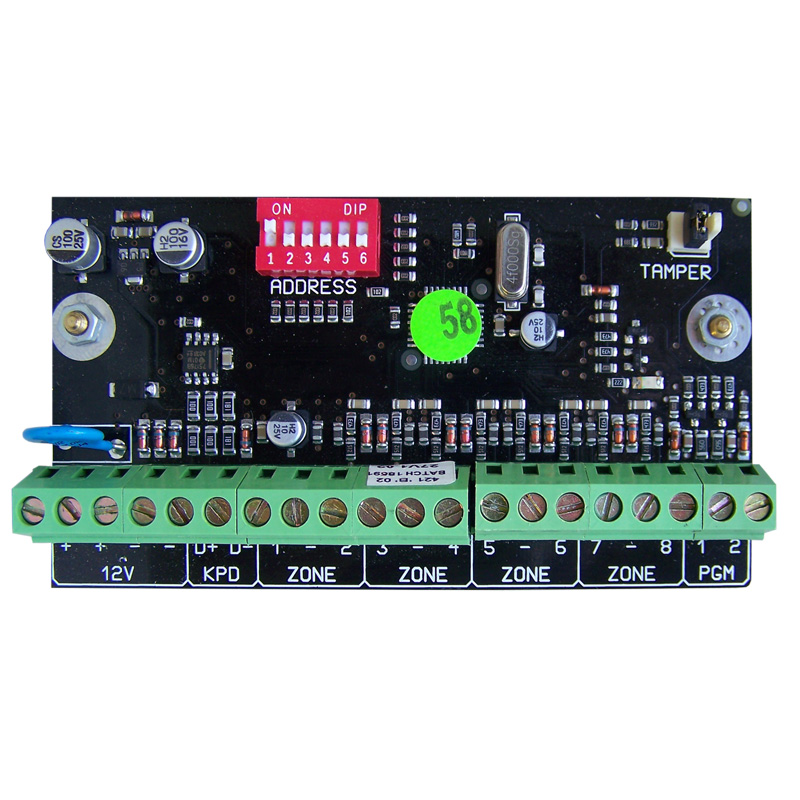

Watchguard 8-Zone Expander for 16+ Zones Expansion WGAP864EXP1664

Description

Designed to expand the system from 16 zones to 64 (all onboard) by simply plugging it into the external keypad bus.

Product features:

• Each 8-Zone expander provides an extra 8 zones.

• 8 wired, end-of-line supervised zone inputs

• 2 x positive 12V programmable outputs that supply 80mA of current

• The outputs are normally open relay (max. 14Amp) contacts & can be either pulsed or latched

• Optional tamper per zone using double end-of-line resistors

• Programmable loop response time

• Dedicated box tamper input

• Excellent protection against lightning (provided by specialist “zap tracking” and transient suppressors)

SPECIFICATIONS

Connection Type: External Bus

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 40 mm

Height: 130 mm

Depth: 70 mm

Weight: 0.10 kg
