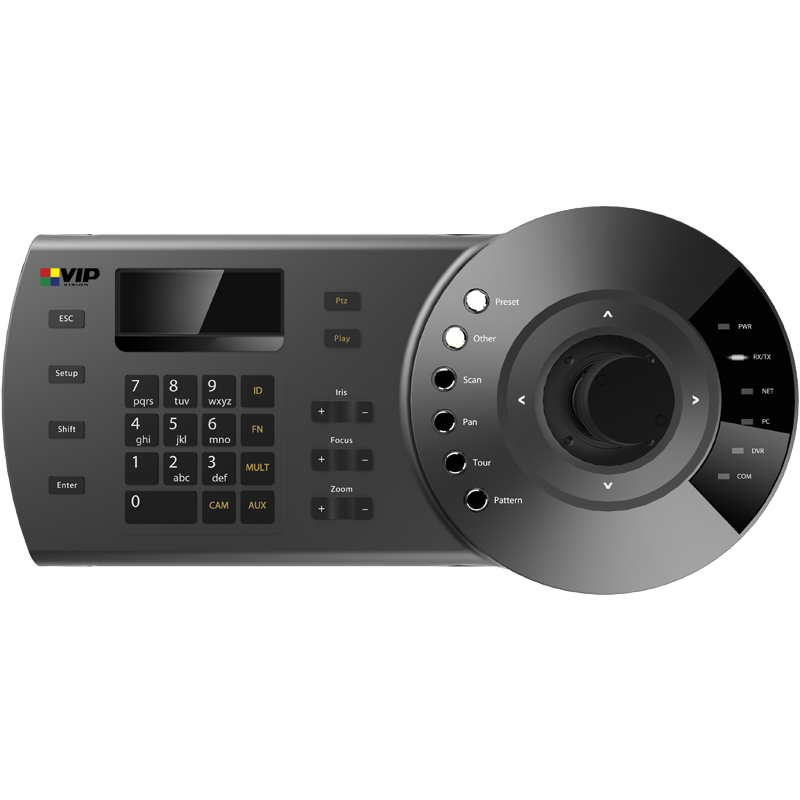

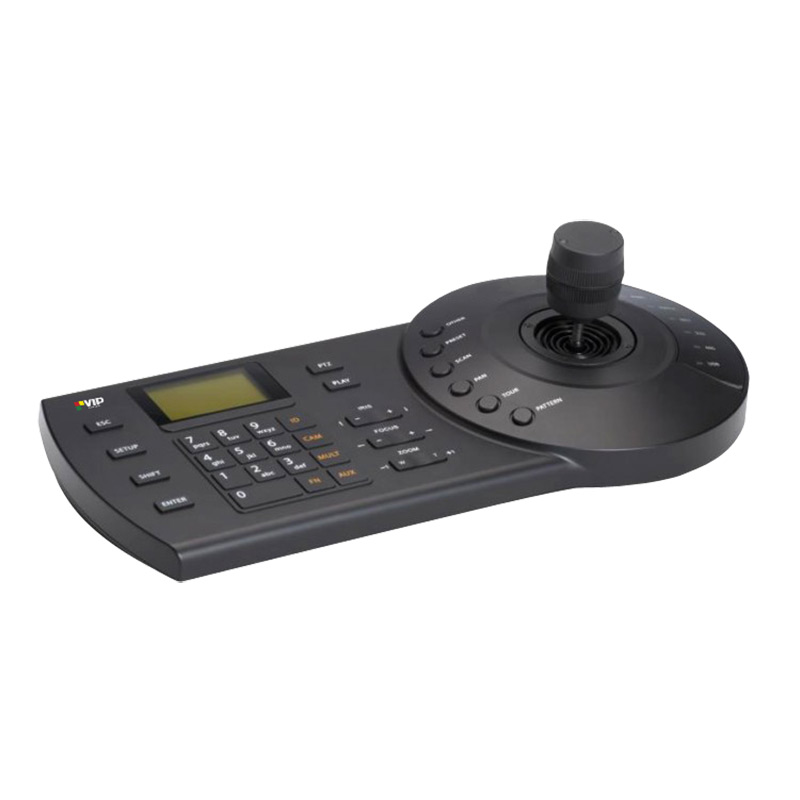

VIP Vision VIP Vision IP PTZ Control Keyboard VSIPPTZKBV2

Description

The IP PTZ control keyboard is compatible with all VIP Vision, Securview and Watchguard PTZ cameras over a network.

Joystick Features:

• Control a variety of PTZ cameras and DVRs with this PTZ keyboard

• Features RS485, RS422, USB, RS232 & RJ45 connections

• Three dimensional joystick control of PTZ functions

• Preset position, auto scan, auto pan, auto tour & pattern control

• 3.2’’ on-keyboard LCD with user menu and operation/procedure tips

• Interfaces to PTZ domes and DVR/NVR via:

• Network mode: Control via RJ45 using IP address and ports

• Direct mode: Control via RS232/RS485 using protocols below:

• DVR: DH2 / Camera protocols: DH-SD, PELCO-D/-P/-D1/-P1

• Can connect and control via VIP Vision SmartPSS through USB

SPECIFICATIONS

Atmosphere Pressure: 86kpa~106kpa

Dimension: Direct Interface

Direct Interface: Joystick

Joystick: 3-axis, vector-solving, with twisting, return to-center head

LCD Display: 75.2mm x 33.85mm

Network Interface: RJ45

Power Consumption: 5W

Power Supply: input 100V~240V 50Hz / 60Hz,output DC12V/1000mA

Weight: 2.5KG

Working Humidity: 10%~90%

Working Temperature: -10℃~+55℃

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 425 mm

Height: 170 mm

Depth: 220 mm

Weight: 1.50 kg
