Watchguard Compact 16 Channel Network Video Recorder with PoE (128Mbps) NVR16COM3
Watchguard Compact 16 Channel Network Video Recorder with PoE (128Mbps) NVR16COM3 - Image 2
Watchguard Compact 16 Channel Network Video Recorder with PoE (128Mbps) NVR16COM3 - Image 3

Watchguard Compact 16 Channel Network Video Recorder with PoE (128Mbps) NVR16COM3

$603.50 inc GST

20 in stock

fast-delivery

Fast Shipping

On All Orders

worker

15+ Years

Industry Experience

Australian Company

Owned & Operated

30-days

Easy Returns

30 Days Peace Of Mind

SKU: NVR16COM3 Categories: , ,

Description

The NVR16COM3 is a compact network video recorder with Ultra HD broadcast-quality image performance and built-in 16 port power over Ethernet switch, allowing easy plug and play installation. It features the latest H.265+ compression technology and an industrial grade processor.

Product features:
• Records up to 4K Ultra HD resolution (3840 x 2160)
• 16CH NVR with 16 Power over Ethernet ports
• Up to 128Mbps total incoming bandwidth
• Decode up to 2 channels at 4K / 8 channels at 1080p (25fps)
• 2 x SATA port up to 10TB, max. 20TB HDD capacity
• Motion detection recording & record scheduling
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view in seconds with setup via QR code

Specifications

General
Main Processor: Industrial grade embedded processor
Operating System: Embedded Linux
Video Input: 16 channels
Two-way Talk: 1 channel input, 1 channel output, RCA
Interoperability: ONVIF (Profile S), CGI, SDK, RTSP
Display
Video Output: 1 HDMI / 1 VGA
Display Resolution: Configurable from 3840 x 2160 to 1024 x 768
Display Split: 1/4/8/9/16
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Recording Resolution: Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Incoming Bandwidth: 128Mbps
Decoding Capacity: 16 channels: 720p (25fps)
Video Compression: H.265+ / H.265 / H.264+ / H.264
Bit Rate: N/A
Record Modes: Manual / Schedule (Regular [Continuous], Motion Detection, Alarm, Timed) / Stop
Record Interval” N/A
Features
Alarm Input / Output: 4 alarm inputs / 2 alarm outputs
Trigger Events: Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips, Log
Video Detection: General: Motion Detection, Smart Motion Detection, Video Loss, Privacy Masking, IPC Alarm / Anomlay: Device Offline, Storage Error, Network Security, IP/MAC Conflict
Playback Sync: 1/4/8/16
Search Modes: Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search
Backup Modes: USB Device / Network
Network
Ethernet: 1 RJ-45 port (10/100/1000Mbps)
Power over Ethernet: 16 ports (IEEE802.3at/af, 10/100Mbps)
Network Functions: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, P2P
Optical Interface: N/A
Max. User Access: 128 users
Remote View:  iOS (iPhone, iPad) / Android devices
Storage
Internal HDD: 2 x SATA ports up to 10TB, max. 20TB HDD capacity
HDD Modes: Single (no RAID compatibility)
USB Interface: 2 ports: Rear USB2.0 / Front USB2.0
Auxiliary Inputs: 1 x RS232 Port
Environment
Power Supply: 100 ~ 240VAC / 47 ~63Hz / 3.5A
Power Consumption: NVR: <10W (without HDD) / PoE: Max 25.5W per port, 117W total
PoE: Yes
Operating Environment: -10 ~+55°C / 10~90%RH
Rackmountable: No
Rackmount Units: Compact 1RU

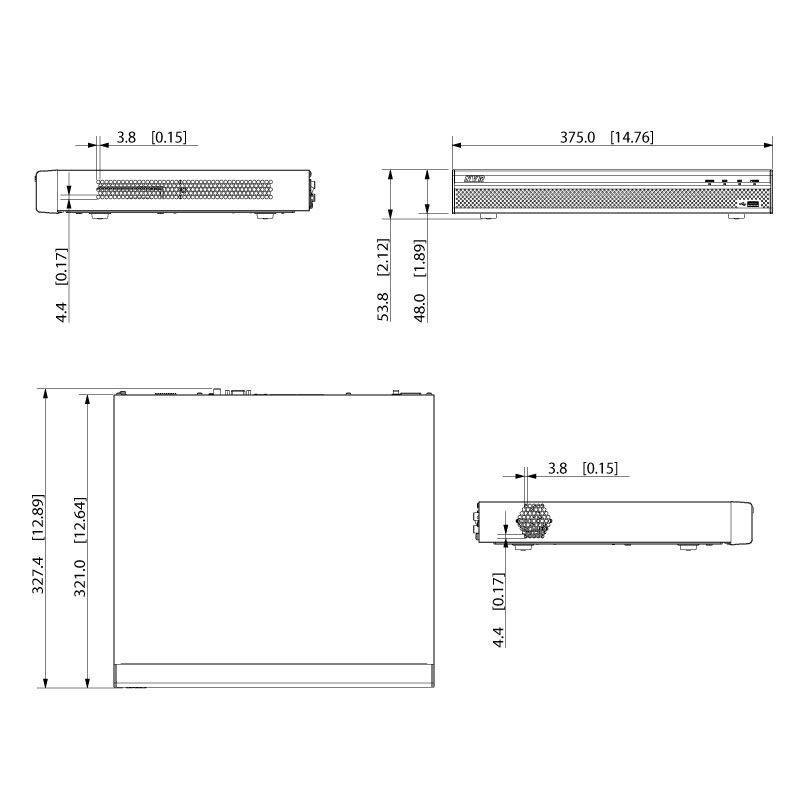

Dimensions: 375mm x 320mm x 48mm
Weight: 2.63kg (without HDD)
Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 450 mm
Height: 180 mm
Depth: 430 mm
Weight: 3.90 kg
