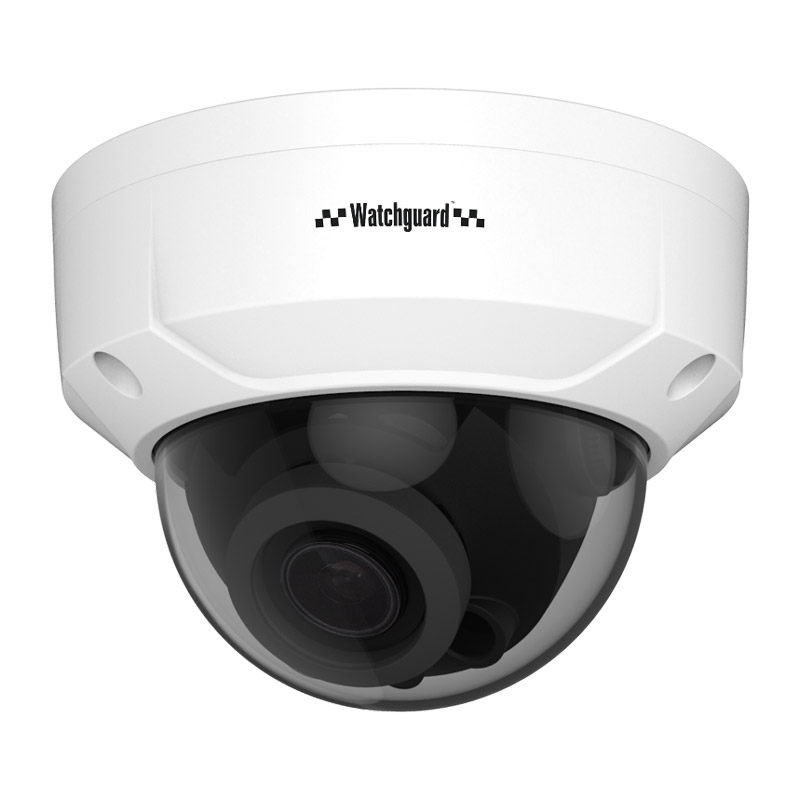

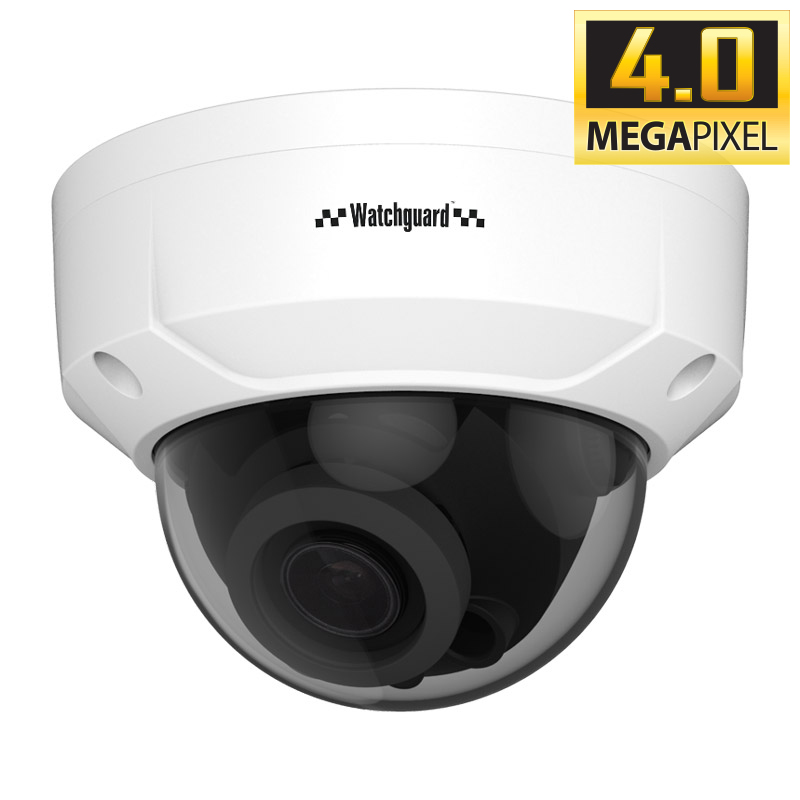

Watchguard Compact Series 4.0MP Motorised Dome VSIPC-4DIRMD

Description

The VSIPC-4DIRMD boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

Camera features:

• Stream up to 4.0MP (2560 x 1440) at 20fps

• 2.8~12mm motorised varifocal lens (94°~33°)

• Up to 30m infrared range; true day/night (auto ICR)

• H.265 encoding for efficient storage & streaming

• 3D digital noise reduction & auto white balance

• Motion detection, region of interest and more

• Power via 12VDC or Power over Ethernet (802.3af)

• IP67/IK10 weather & vandal rated metal housing

SPECIFICATIONS

Image Sensor: 1/3″ 4.0MP Progressive Scan CMOS

Max. Resolution: Effective Pixels

Effective Pixels: RAM / ROM

RAM / ROM: 256MB / 16MB

Ultra Low Light Colour: No

Min Illumination: 0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)

S/N Ratio: > 50dB

Infrared: Yes

Infrared System: 2 x Infrared LED, 30m range, Auto/manual on/off control

Lens Type: Motorised Varifocal

Lens / Iris: 2.8mm~12mm F1.8 Motorised Varifocal Lens

Field of View: Horizontal: 94°~33°, Vertical: 51°~19° (4x Optical Zoom)

Focus: Fixed

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m): 66m (wide) / 200m (tele)

Observe (63px/m): 26m (wide) / 80m (tele)

Recognise (125px/m): 13m (wide) / 40m (tele)

Identify (250px/m): 7m (wide) / 20m (tele)

Resolution: 4.0MP (2560 x 1440) to CIF (352 x 288)

Frame Rate (Main): 4.0MP (1 ~ 20fps)

Frame Rate (Sub): D1 (1 ~ 25fps)

Frame Rate (Third): N/A

Video Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Bit Rate: H.265: 6 ~ 6144Kbps / H.264: 16 ~ 6144Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Color / B&W

Lighting Compensation: BLC / HLC / Digital WDR

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)

IVS: No

Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS; SSH

Streaming Method: Unicast / Multicast

Max. User Access: 10 Users / 20 Users

RTMP Support: No

Video Interface: N/A

Audio Interface: N/A

Alarm Interface: N/A

RS485: N/A

Edge Storage: MicroSD Card (up to 128GB) / NAS / Local PC

Interoperability: ONVIF Profile S&G / API

Power Supply: 12VDC / PoE (802.3af) (Class 0)

Power Consumption: <2.2W / 6.5W (IR On)

Operating Conditions: -30° ~ +60° C / Less than 95% RH

Ingress Protection: IP67

Weather Resistance: Yes

Vandal Resistance: IK10

Series: Compact Series

Camera Type: Dome

Housing: Metal

Pan/Tilt/Rotation: Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~360°

Tri-Axis Mounting: Yes

ePoE: No

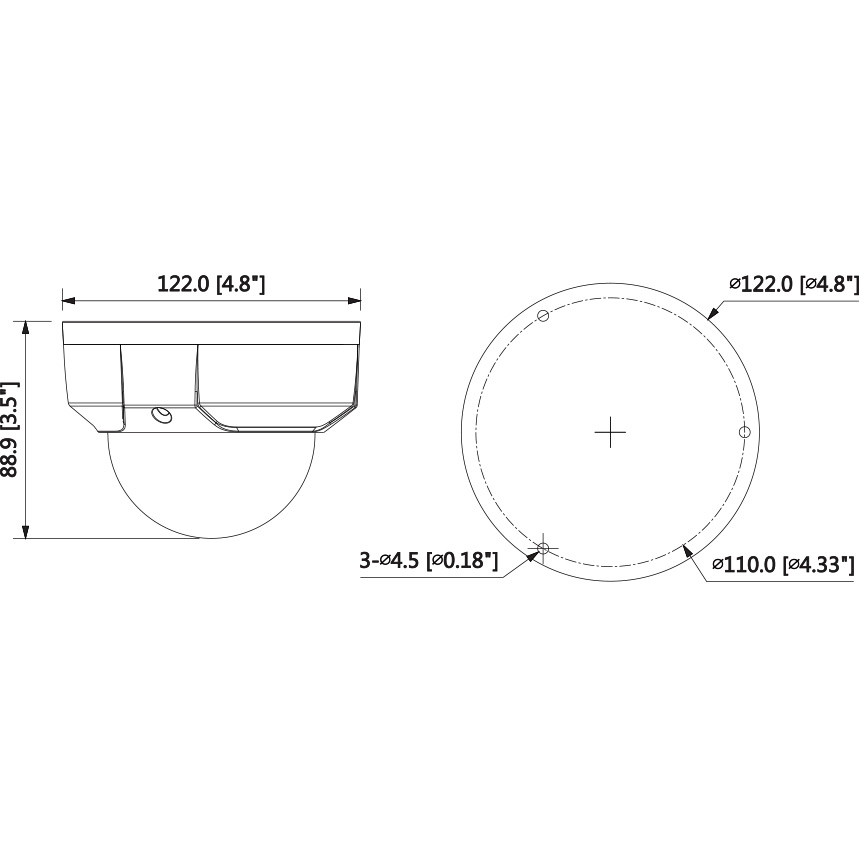

Dimensions: Ø122mm x 89mm

Net Weight: 0.45kg

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 156 mm

Height: 137 mm

Depth: 156 mm

Weight: 0.62 kg
