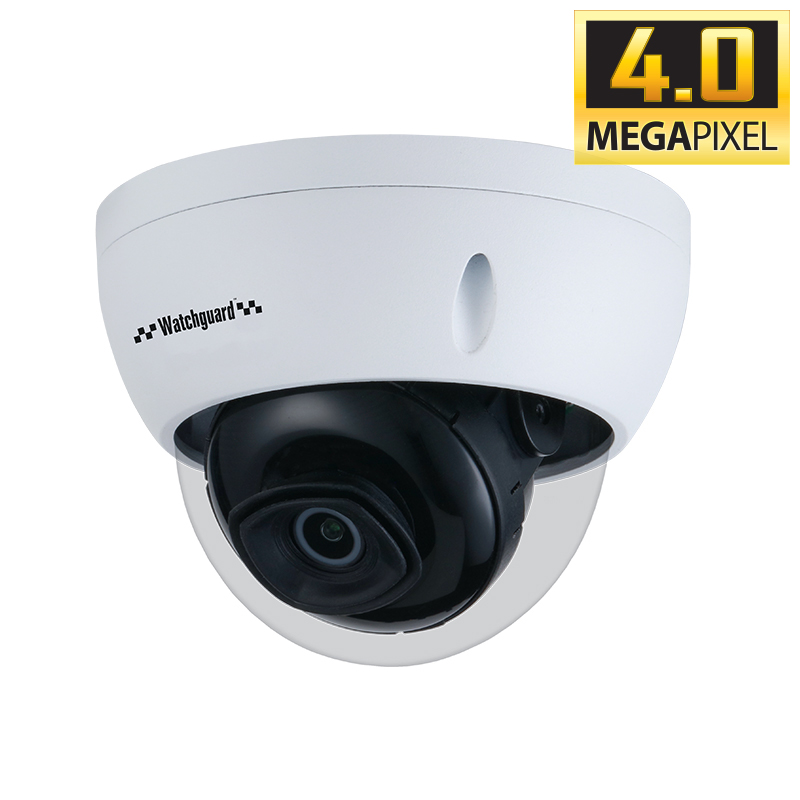

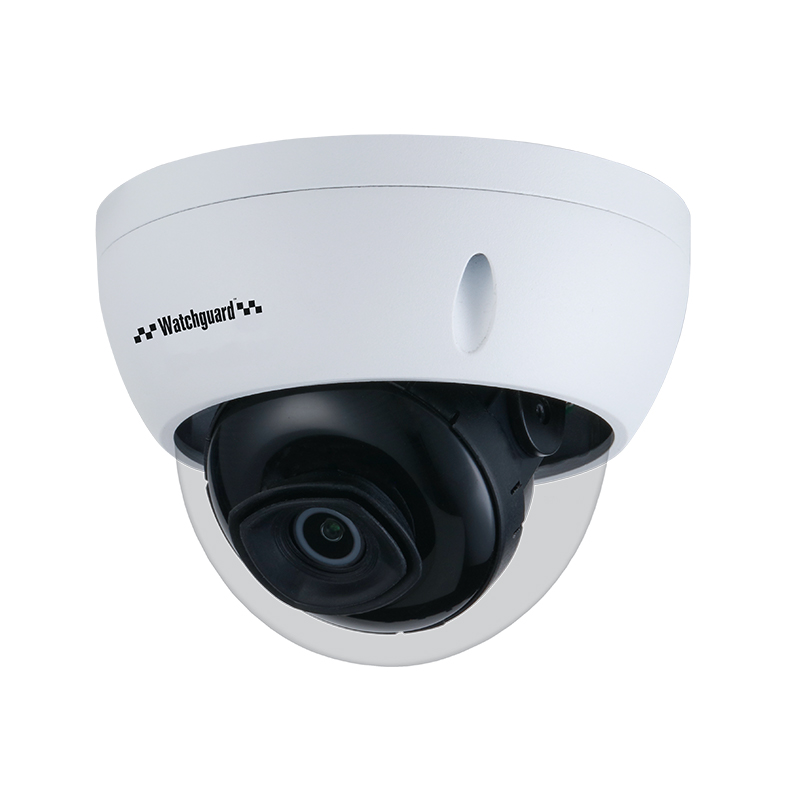

Watchguard Compact Series 4.0MP Fixed Mini Dome VSIPC-4DIRD2

Description

The VSIPC-4DIRD2 boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.

Camera features:

• Stream up to 4.0MP (2688 x 1520) at 20fps

• 2.8mm fixed lens with wide 102° viewing angle

• 30m infrared range; true day/night (auto ICR)

• H.265 encoding for efficient storage & streaming

• 3D digital noise reduction & true WDR (120dB)

• Tripwire, Intrusion, Motion detection and more

• Power via 12VDC or Power over Ethernet (802.3af)

• IP67/IK10 weather & vandal rated metal housing

SPECIFICATIONS

Image Sensor: 1/3″ 4.0MP Progressive Scan CMOS

Max. Resolution: Effective Pixels

Effective Pixels: RAM / ROM

RAM / ROM: 128MB / 128MB

Ultra Low Light Colour: No

Min Illumination: 0.008 Lux/F1.6

S/N Ratio: N/A

Infrared: Yes

Infrared System: 3 x Infrared LED, 30m range, Auto/manual on/off control

Lens Type: Fixed

Lens / Iris: 2.8mm F1.6 Fixed Lens

Field of View: Horizontal: 102°, Vertical: 55°

Focus: Fixed

(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m): 56m

Observe (63px/m): 22.4m

Recognise (125px/m): 11.2m

Identify (250px/m): 5.6m

Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288)

Frame Rate (Main): 4.0MP (1 ~ 20fps)

Frame Rate (Sub): D1 (1 ~ 25fps)

Frame Rate (Third): N/A

Video Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Bit Rate: H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Color / B&W

Lighting Compensation: BLC / HLC / True WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)

IVS: Yes

Intelligent Functions: Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

RTMP Support: No

Video Interface: N/A

Audio Interface: N/A

Alarm Interface: N/A

RS485: N/A

Edge Storage: FTP / SFTP / NAS / Micro SD Card (supports max. 256GB)

Interoperability: ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <5.2W

Operating Conditions: -40° ~ +60° C / Less than 95% RH

Ingress Protection: IP67

Weather Resistance: Yes

Vandal Resistance: IK10

Series: Compact Series

Camera Type: Dome

Housing: Metal

Pan/Tilt/Rotation: Pan: 0° ~355 °; Tilt: 0° ~65°; Rotation: 0° ~355°

Tri-Axis Mounting: No

ePoE: No

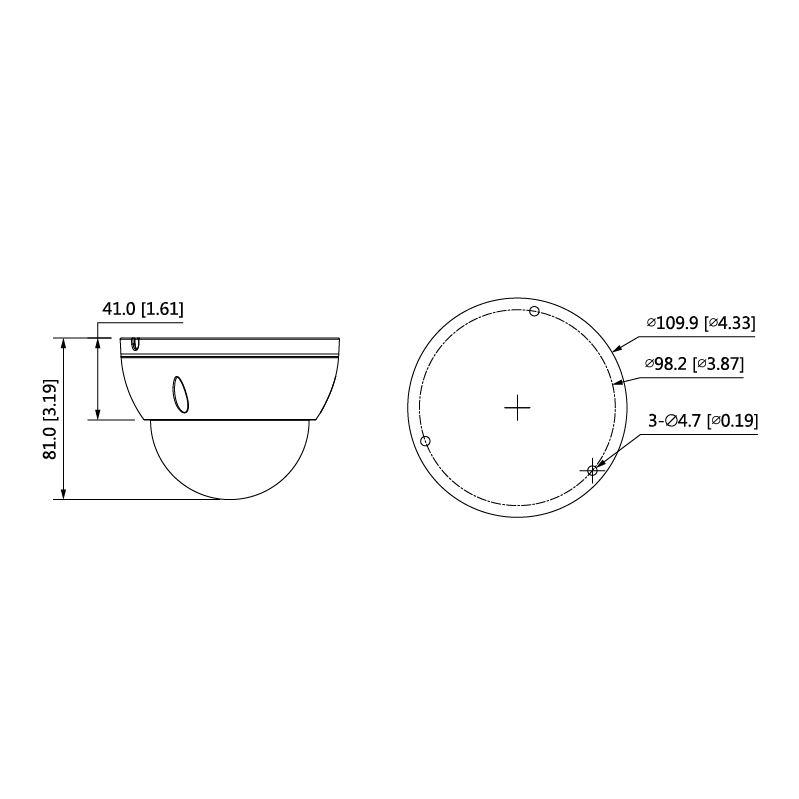

Dimensions: 81 mm × Φ109.9 mm

Net Weight: 0.35kg

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

: Width

89 mm: Height

122 mm: Depth

76 mm: Weight
