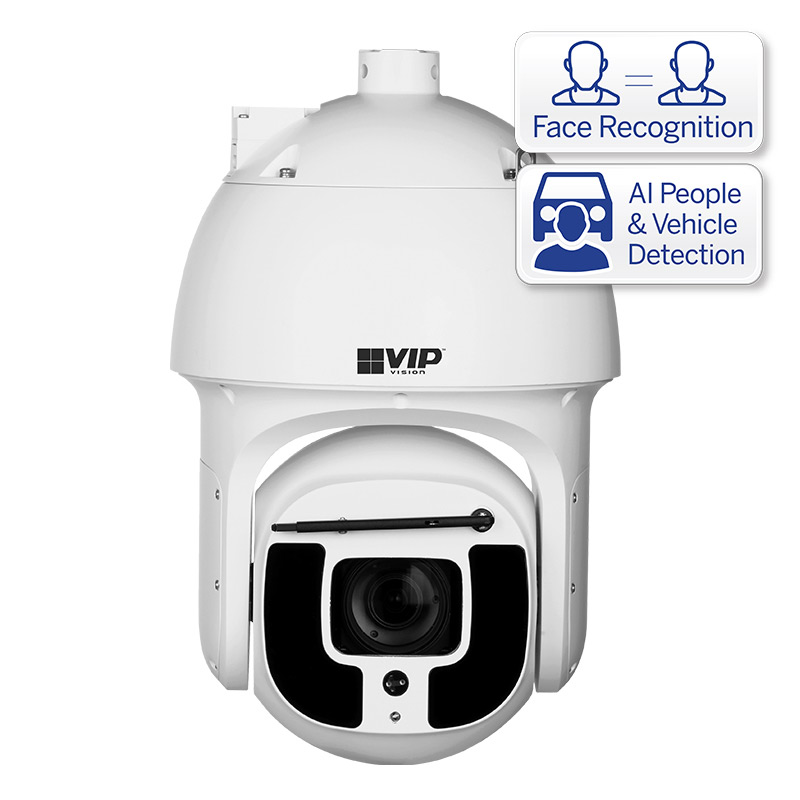

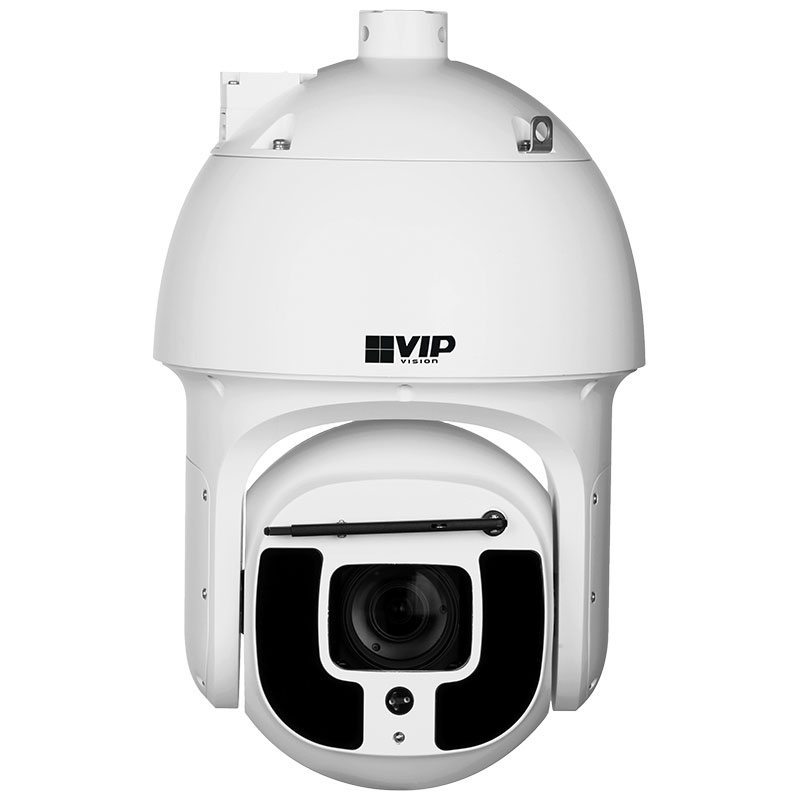

VIP Vision Ultimate AI Series 8.0MP Ultra Low Light 40x Zoom PTZ Dome VSIPPTZ-8IRU-I

Description

The VSIPPTZ-8IRU-I Ultimate AI Series PTZ offers the best in camera performance & mobility with machine-learning AI features that deliver an intelligent surveillance experience.

To provide the best surveillance performance, camera features from the VSIPPTZ-8IRU-I include 4K resolution image capture in real-time 25fps, incredible 40x lossless optical zoom and exceptional colour image quality in low-light.

This AI camera features on-board Face Recognition, with database support for up to 10,000 faces for real-time face capture and comparison. Using AI algorithms, the camera can also distinguish vehicles & people from other motion events and use auto-tracking to intelligently follow subjects.

Camera features:

• Stream up to Ultra HD 8.0MP (3840 x 2160) at 25fps

• 40x optical zoom lens (63.9 ~ 2.0° horizontal viewing angles)

• Face capture & recognition; person & vehicle detection (perimeter protection)

• Auto tracking subjects with vehicle/people detection via AI

• Up to 500m infrared distance in total darkness; IR & lens wiper

• Exceptional low light colour performance; min. illumination of 0.002lx

• Endless 360° pan; -30° ~ +90° tilt; electronic image stabilisation

• MicroSD card slot for recording up to 256GB

• Audio, alarm and video interface input/output

• Supports power via Hi-PoE (IEEE802.1x)

• IP67 weather resistant housing for external use

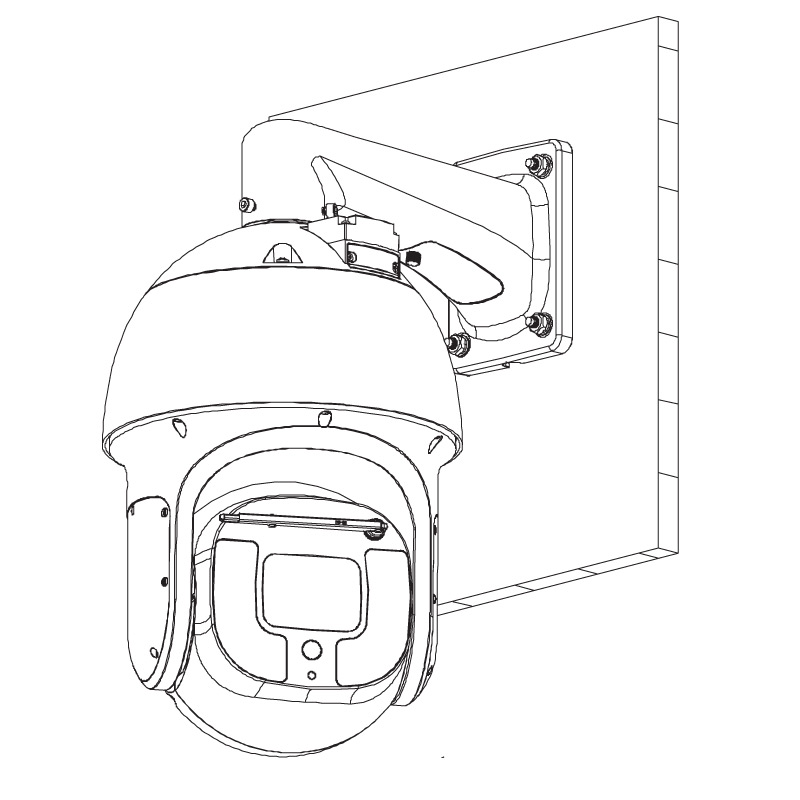

This PTZ dome camera comes standard with a right angle bracket and AC power supply.

SPECIFICATIONS

Image Sensor: 1/1.8″ 8.0MP STARVIS™ CMOS

Max. Resolution: Effective Pixels

Effective Pixels: RAM / ROM

RAM / ROM: 1024MB / 128MB

Min Illumination: 0.002 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)

S/N Ratio: > 55dB

Infrared System: 10 x Infrared LED, 450m range, Auto/manual on/off control

Lens Type: Motorised Varifocal

Lens / Iris: 5.6 ~ 223mm F1.4 ~ F4.5 Motorised Lens with Auto Iris

Field of View: Horizontal: 63.9° ~ 2.0° (40x Optical Zoom)

Focus: Auto / Manual / 1m Min. Focus Distance

Detect (25px/m): 4400m

Observe (63px/m): 1740m

Recognise (125px/m): 880m

Identify (250px/m): 440m

Pan / Tilt Range: Pan: 0 ~ 360° (endless) / Tilt: -30 ~ 90° / Auto-flip 180°

PTZ Speed: Preset: Pan: 240°/s; Tilt: 200°/s Manual: Pan: 200°/s; Tilt: 120°/s

Modes / Presets: Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan

Start-up Action: Auto-restore to previous PTZ/lens status

Resolution: 8.0MP (3840 x 2160) to CIF (352 x 288)

Frame Rate (Main): 8.0MP (1 ~ 25fps)

Frame Rate (Sub): D1 (1 ~ 25fps)

Frame Rate (Third): 1080p (1 ~ 25fps)

Video Compression: H.265+ / H.265 / H.264+ / H.264

Bit Rate: H.265/H.264: 448K ~ 8192Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Color / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto / ATW / Indoor / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: Ultra 2D/3D DNR

Picture Control: Flip 180°

Face Recognition: Supports database up to 10,000 face images

Face Capture: Support

Perimeter Protection: Tripwire rule / Intrusion area rule (Person & vehicle detection by AI)

Auto Tracking: Support

Metadata: Support

People Counting: N/A

Heat Map: N/A

IVS Functions: Abandoned object / Missing object

Event Triggers: Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly

Region of Interest: Support

Optical Defog: Support

Digital Zoom: 16x

Privacy Masking: Up to 24 areas

Image Stabilisation: Electronic

Ethernet: RJ-45 (10Base-T/100Base-TX)

Protocol: IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: 1 Output (Vpp 75Ω)

Audio Interface: 1 Input, 1 Output / Compression: G.711a/G.711Mu/AAC/G.722 / G.726/MPEG2-L2

Alarm Interface: 7 Inputs / 2 Outputs

RS485: Yes

Edge Storage: MicroSD Card (up to 256GB) / NAS / Local PC

Interoperability: ONVIF / PSIA / CGI

Power Supply: 24VAC / 3A (±25%) / Hi-PoE (IEEE802.3at)

Power Consumption: <26W

Operating Conditions: -40° ~ +70° C / Less than 90% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Ultimate AI Series

Camera Type: PTZ Dome

Housing: Metal

Pan/Tilt/Rotation: Pan: 0° ~ 360 ° ; Tilt: -30° ~ 90° ; Rotation: 0° ~ 360°

ePoE: No

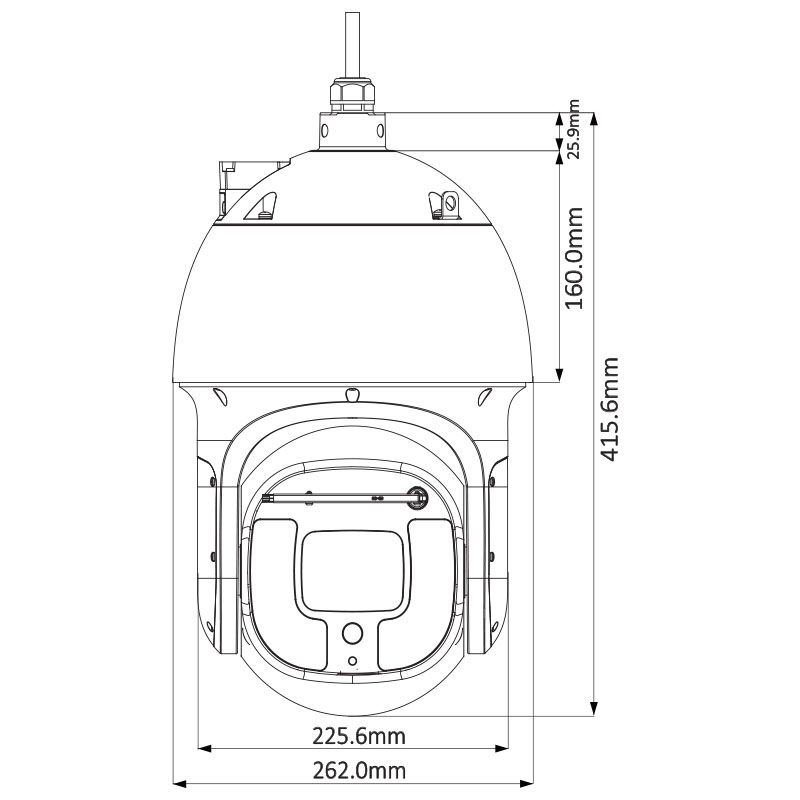

Dimensions: Ø262mm x 416mm

Net Weight: 8.5kg

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 364 mm

Height: 606 mm

Depth: 364 mm

Weight: 14.00 kg
