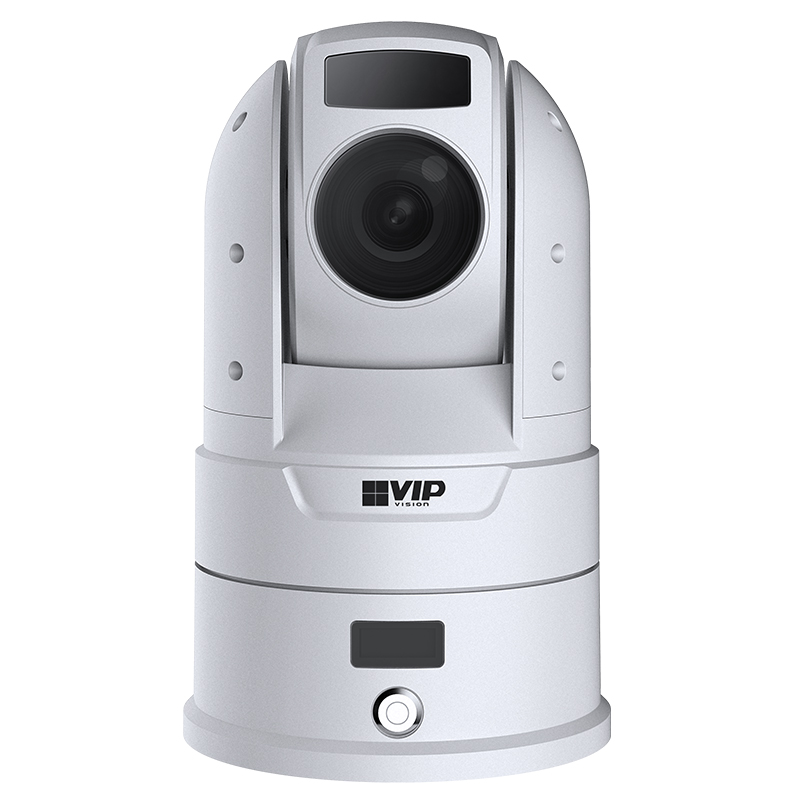

VIP Vision Professional Series 2.0MP 30x Zoom PTZ Positioning Camera with GPS, 4G & WiFi VSIPMPTZ-2G

Description

Featuring a powerful optical zoom, accurate pan/tilt/zoom performance and flexible network support including 3G/4G and WiFi, the VSIPMPTZ-2G is an all-in-one solution for capturing long distance video surveillance in any setting.

Camera features:

• Stream up to 2.0MP (1920 x 1080) at 50fps

• 30x optical zoom lens (61.2 ~ 2.4° viewing angles)

• Auto tracking, 360° panning, -20° ~ 90° tilt adjustable

• Low light colour performance at 0.004lx; 100m IR

• 3G/4G, WiFi and wired networking options

• Built-in GPS tracking

• Anti-vibration for image stability

• Built-in OLED with status display

• MicroSD slot for recording at the edge up to 256GB

• WDR, 2D/3D DNR; auto white balance; true day/night

• Soft magnetic composite base for flexible mounting

• Power via 24VDC (PSU included)

• IP66 weather resistant metal housing

SPECIFICATIONS

Image Sensor: 1/1.9″ 2.0MP CMOS

Max. Resolution: Effective Pixels

Effective Pixels: Ultra Low Light Colour

Ultra Low Light Colour: Yes

Min Illumination: 0.004 Lux/F1.6 (Color), 0 Lux/F1.6 (IR on)

S/N Ratio: >54dB

Infrared: Yes

Infrared System: 4 x Infrared LED, 100m range, Auto/manual on/off control

Anti-Shake DSP: Support

Lens Type: Motorised Varifocal

Lens / Iris: 6 ~ 180mm Motorised Lens

Field of View: Horizontal: 61.2° ~ 2.3° (30x Optical Zoom)

Focus: Auto/ Semiautomatic/ Manual

Pan / Tilt Range: Pan: 0 ~ 360° (endless) / Tilt: -15 ~ 90° / Auto-flip 180°

PTZ Speed: Preset: Pan: 400°/s; Tilt: 300°/s Manual: Pan: 300°/s; Tilt: 200°/s

Modes / Presets: Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan

Start-up Action: Auto-restore to previous PTZ/lens status

Auto Tracking: Support

Resolution: 1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate (Main): 1080p (1 ~ 50fps)

Frame Rate (Sub): D1 (1 ~ 25fps)

Frame Rate (Third): 1080p (1 ~ 25fps)

Video Compression: H.265 / H.264

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Color / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

White Balance: Auto / ATW / Indoor / Outdoor / Manual

Gain Control: Auto / Manual

Noise Reduction: 2D/3D DNR

Picture Control: Horizontal: 0° ~ 360° Vertical: -20° ~ 90°

IVS: No

Intelligent Functions: Motion Detection

Ethernet: RJ-45 (10/100Base-T)

Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 10 Users / 20 Users

RTMP Support: No

External Interface: 14-Core Aviation Connector (1: RJ45 Network Cable, 2: Φ5.5*2.1mm Power Port, 3: GPS Port, 4: RS232), 8-Core Aviation Connector (optional) (1: Alarm Input, 2: Audio Input, 3: 12V Controllable Power (Alarm) Input, 4: RS485)

Audio Interface: 1 Input / Compression: PCM, G.711a, G.711u

Alarm Interface: 2 Inputs

RS485: Yes

Edge Storage: MicroSD Card (up to 256GB) / NAS / Local PC

Interoperability: ONVIF / PSIA / CGI

Power Supply: 24VDC (6~36V)

Power Consumption: <20W (IR off: <24W, IR on: <40W , Motor IR on: <56W)

Battery: 10.05Ah / 109.45Wh (9 hours from full charge at lowest power consumption)

Operating Conditions: -20° ~ +5° C / Less than 90% RH

Ingress Protection: IP66

Weather Resistance: Yes

Vandal Resistance: N/A

Series: Professional Series

Camera Type: PTZ Positioning

Housing: Metal

Pan/Tilt/Rotation: Pan: 0° ~ 360 ° ; Tilt: 15° ~ 90° ; Rotation: 0° ~ 360°

Tri-Axis Mounting: No

ePoE: No

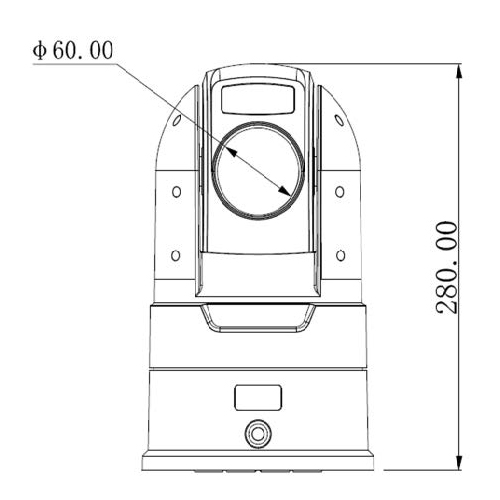

Dimensions: Ø171mm x 280mm

Net Weight: 4.87kg

Smart Scene Adaptive (SSA): Yes

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 175 mm

Height: 280 mm

Depth: 175 mm

Weight: 4.87 kg
