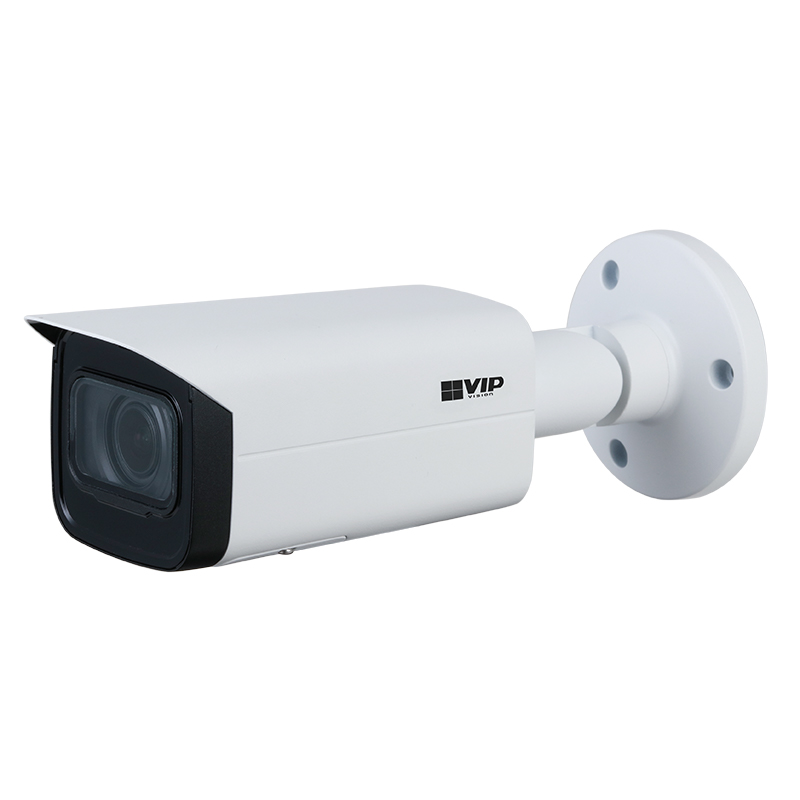

VIP Vision Professional AI Series 4.0MP Motorised Bullet VSIPP-4BIRMG-I

Description

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:

• Stream up to 4.0MP (2688 x 1520) at 20fps

• 2.7 ~ 13.5mm motorised lens with 104 ~ 27° viewing angles

• H.265 encoding for efficient storage & streaming

• Up to 60m infrared range; true day/night (auto ICR)

• MicroSD slot for recording at the edge up to 256GB

• AI powered perimeter protection & smart motion detection (SMD+)

• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles

• Back/highlight compensation & true WDR (120dB)

• 3D digital noise reduction & auto white balance

• IP67 weather rated housing for outdoor use

SPECIFICATIONS

Image Sensor: 1/3” 4.0 Megapixel CMOS

Max. Resolution: Effective Pixels

Effective Pixels: RAM / ROM

RAM / ROM: 128MB/128MB

Min Illumination: 0.005 Lux/F1.5 (Color), 0.0005 Lux/F1.8(B/W) 0 Lux/F1.8 (IR on)

S/N Ratio: >50dB

Infrared System: 4 x Infrared LED, 60m range, Auto/manual on/off control

Lens Type: Motorised Varifocal

Lens / Iris: 2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris

Field of View: Horizontal: 104°~27°, Vertical: 55°~15° (5x Optical Zoom)

Focus: Auto Focus / 0.8m Min. Focus Distance

Detect (25px/m): 64m (wide) / 220m (tele)

Observe (63px/m): 25.6m (wide) / 88.8m (tele)

Recognise (125px/m): 12.8m (wide) / 44.4m (tele)

Identify (250px/m): 6.4m (wide) / 22.2m (tele)

Resolution: 4.0MP (2688 x 120) to CIF (352 x 288)

Frame Rate (Main): 4.0MP (1 ~ 25fps)

Frame Rate (Sub): D1 (1 ~ 25fps)

Frame Rate (Third): 720p (1 ~ 25fps)

Video Compression: H.265 / H.264 / H.264B / MJPEG

Bit Rate: H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): Yes

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto/ Manual

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower)

Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles)

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: N/A

Intelligent Search: Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 20 users

Video Interface: N/A

Audio Interface: 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression – G.711a; G.711Mu; G726; AAC

Alarm Interface: 1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC

RS485: N/A

Edge Storage: MicroSD Card (up to 256GB) / NAS

Interoperability: ONVIF / P2P / CGI / Milestone / Genetec

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <9.8W

Operating Conditions: -30° ~ +60° C / Less than 95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Professional AI Series

Camera Type: Bullet

Housing: Metal

Pan/Tilt/Rotation: Pan: 0° ~360 °; Tilt: 0° ~90°; Rotation: 0° ~355°

ePoE: No

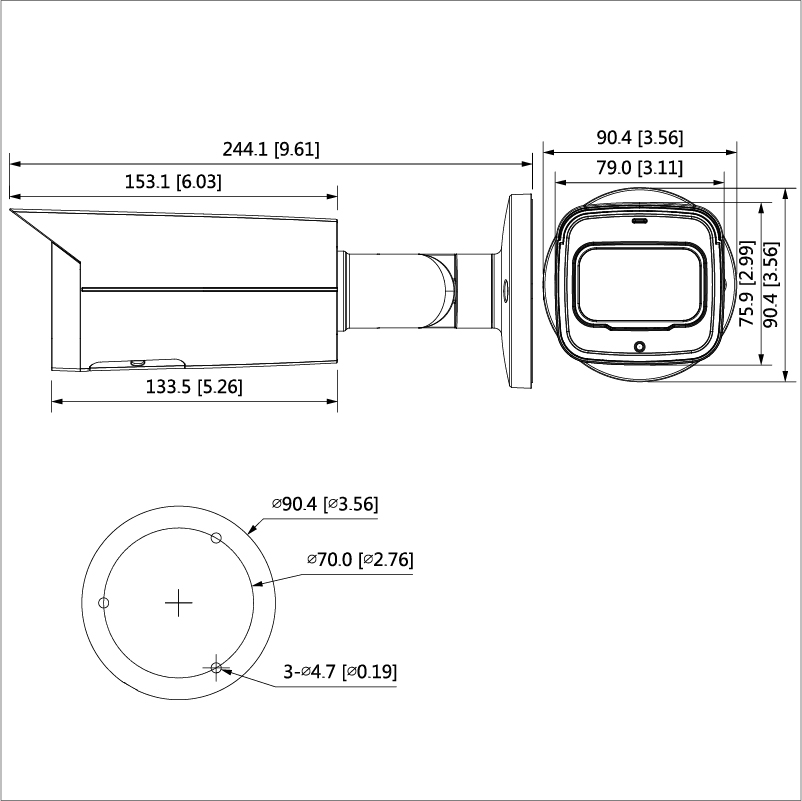

Dimensions: Ø90 x 24mm

Net Weight: 0.90kg

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 265 mm

Height: 95 mm

Depth: 99 mm

Weight: 1.09 kg
