VIP Vision Professional AI Series 4.0MP Fixed Turret Dome VSIPP-4DIRG-I

Description

The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:

• Stream up to 4.0MP (2688 x 1520) at 25fps

• 2.8mm fixed lens with 103° viewing angle

• H.265 encoding for efficient storage & streaming

• Up to 50m infrared range; true day/night (auto ICR)

• MicroSD slot for recording at the edge up to 256GB

• AI powered perimeter protection & smart motion detection (SMD+)

• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles

• Back/highlight compensation & true WDR (120dB)

• 3D digital noise reduction & auto white balance

• IP67 weather rated housing for outdoor use

SPECIFICATIONS

Image Sensor: 1/3’’ 4.0MP Progressive Scan CMOS

Effective Pixels: RAM / ROM

RAM / ROM: Min Illumination

Min Illumination: 0.005 Lux/F1.5 (Color)

S/N Ratio: > 50dB

Infrared System: 2 x Infrared LED, 50m range, Auto/manual on/off control

Lens Type:

Lens / Iris: 2.8mm Fixed Focal Lens with Fixed Iris

Field of View: Horizontal: 103°, Vertical: 55°

Focus: Auto Focus / 0.9m Min. Focus Distance

Detect (25px/m): 56m

Observe (63px/m): 22m

Recognise (125px/m): 11m

Identify (250px/m): 6m

Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288)

Frame Rate (Main): 4.0MP (1 ~ 25fps)

Frame Rate (Sub): D1 (1 ~ 25fps)

Frame Rate (Third): 720p (1 ~ 25fps)

Video Compression: H.265 / H.264 / H.264B / MJPEG

Bit Rate: H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (ICR) / Color / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA):

White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

Gain Control: Auto / Manual

Noise Reduction: 3D DNR

Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)

Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared

Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles)

Face Detection: N/A

Face Attributes: N/A

People Counting: N/A

Heat Map: N/A

Event Trigger: N/A

Intelligent Search: Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle

Ethernet: RJ-45 (10/100Base-T)

Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Streaming Method: Unicast / Multicast

Max. User Access: 20 Users

Video Interface: N/A

Audio Interface: Built-in Mic / Audio Compression – G.711a; G.711Mu; G726; AAC

Alarm Interface: N/A

RS485: N/A

Edge Storage: MicroSD Card (up to 256GB) / NAS

Interoperability: ONVIF / P2P / CGI / Milestone / Genetec

Power Supply: 12VDC / PoE (802.3af)

Power Consumption: <6.5W

Operating Conditions: -40°C ~ +60°C / ≤95% RH

Ingress Protection: IP67

Vandal Resistance: N/A

Series: Professional AI Series Cameras

Camera Type:

Housing: Metal

Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°

ePoE: No

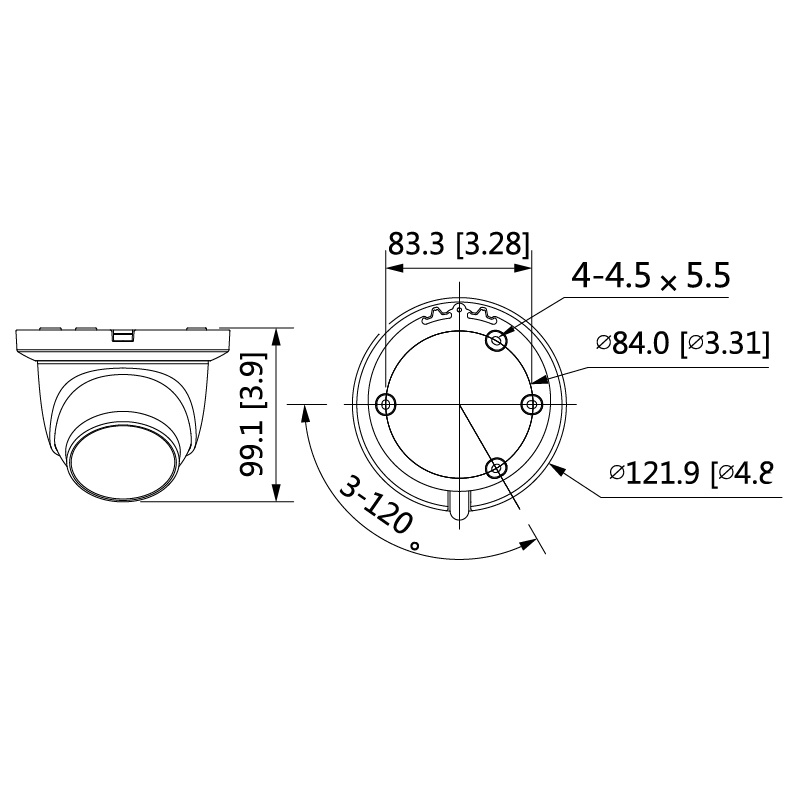

Dimensions: Ø122mm x 99mm

Net Weight: 0.48kg

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 140 mm

Height: 140 mm

Depth: 120 mm

Weight: 1.00 kg
