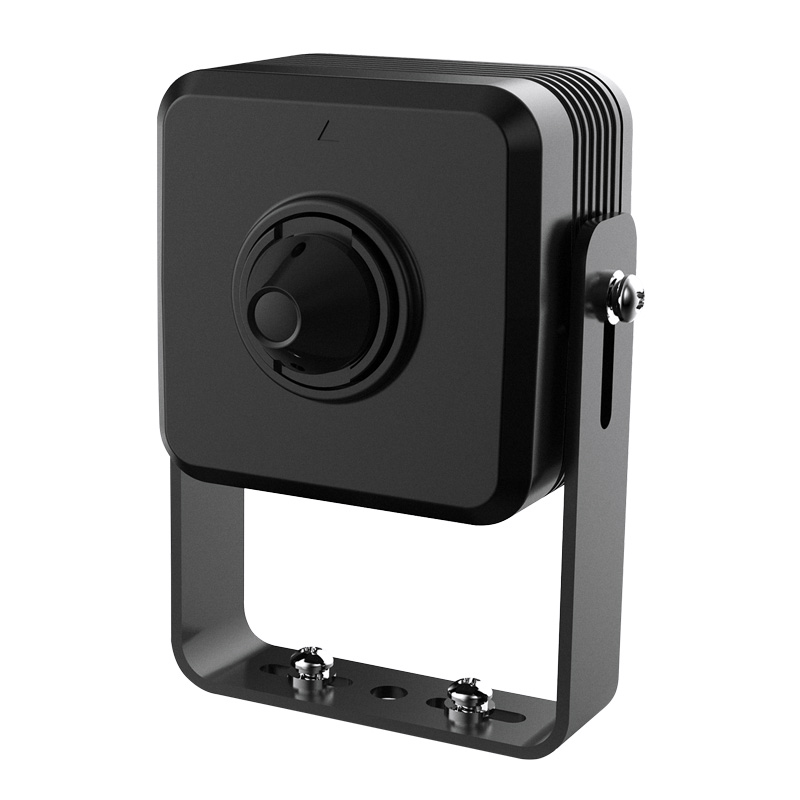

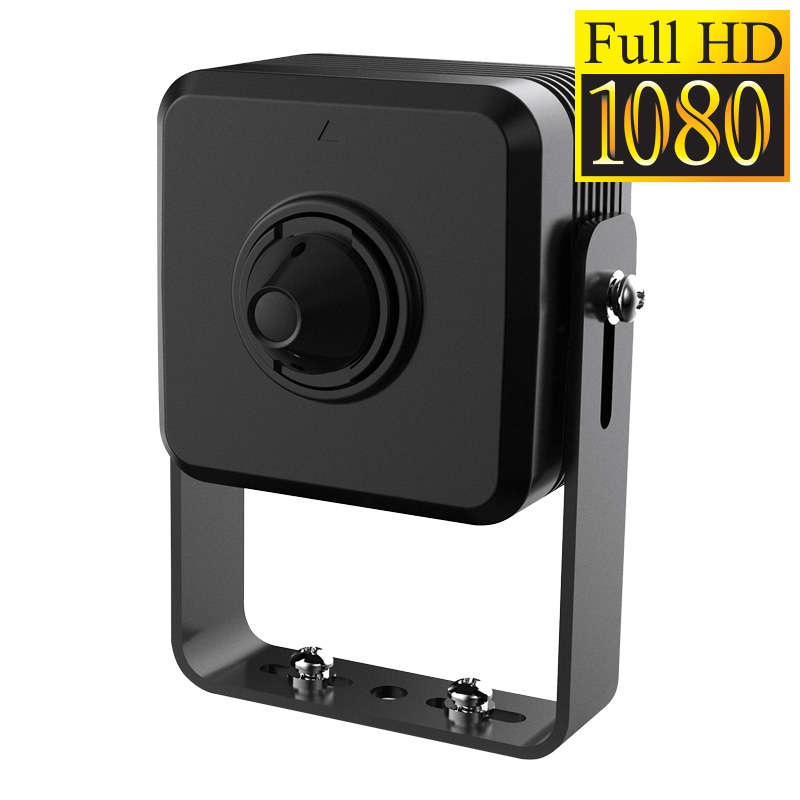

VIP Vision Pinhole Series 2.0MP Fixed WDR Pinhole Camera VSIPPH-2S

Description

The VSIPPH-2S pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, vehicles, ATMs and more.

Camera features:

• Stream up to HD 1080p at 25fps

• Fixed 2.8mm lens with 105° field of view

• True WDR (120dB)

• Auto electronic day/night & 2D digital noise reduction

• Discreet pinhole housing for covert surveillance

• IVS functions including motion detection, tripwire & intrusion

SPECIFICATIONS

Image Sensor: 1/2.7” 2.0 Megapixel Progressive Scan CMOS

Max. Resolution: Effective Pixels

Effective Pixels: RAM / ROM

RAM / ROM: 256MB / 128MB

Ultra Low Light Colour: Yes

Min Illumination: Colour: F2.4 0.007lx (1/3s), 0.04lx (1/30s) B&W: F2.4 0.004lx (1/3s), 0.02lx (1/30s)

S/N Ratio: >50dB

Infrared: No

Infrared System: N/A

Lens Type: Fixed

Lens / Iris: 2.8mm F2.4 Fixed lens

Field of View: Horizontal: 105°, Vertical: 60°

Focus: Fixed

DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)

Detect (25px/m): 63m

Observe (63px/m): 25m

Recognise (125px/m): 13m

Identify (250px/m): 6m

Resolution: 1080p (1920 x 1080) to CIF (352 x 288)

Frame Rate (Main): 1080p (1 ~ 25fps)

Frame Rate (Sub): D1 (1 ~ 25fps)

Frame Rate (Third): 1080p (1~14fps)

Video Compression: H.265 / H.264 / H.264B / H.264H / MJPEG (sub stream)

Bit Rate: H.265: 12K~6400Kbps/ H.264: 32K~8192Kbps

Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)

Day/Night: Auto (Electronic) / Colour / B&W

Lighting Compensation: BLC / HLC / WDR (120dB)

Smart Scene Adaptive (SSA): No

White Balance: Auto/ Natural/ Street Lamp/ Outdoor/ Manual

Gain Control: Auto/ Manual

Noise Reduction: 3D DNR

Picture Control:

IVS: Yes

Intelligent Functions: Tripwire, Intrusion, Abandoned/Missing Object, Face Detection. Privacy Masking (4 Zone), Motion Detection (4 Zone), Region of Interest (4 Zone)

Ethernet: RJ45 (10/100 Base-T)

Protocol: IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour

Streaming Method: Unicast / Multicast

Max. User Access: 10/20 Users

RTMP Support: No

Video Interface: N/A

Audio Interface: 1 Input, 1 Output

Alarm Interface: N/A

RS485: N/A

Edge Storage: NAS/ Local PC

Interoperability: ONVIF Profile S/ API

Power Supply: 12VDC / Non POE

Power Consumption: <1.5W

Operating Conditions: -30° ~ +60° C / Less than 95% RH

Ingress Protection: N/A

Weather Resistance: No

Vandal Resistance: N/A

Series: Pinhole Series

Camera Type: Pinhole

Housing: Metal

Pan/Tilt/Rotation: N/A

Tri-Axis Mounting: No

ePoE: No

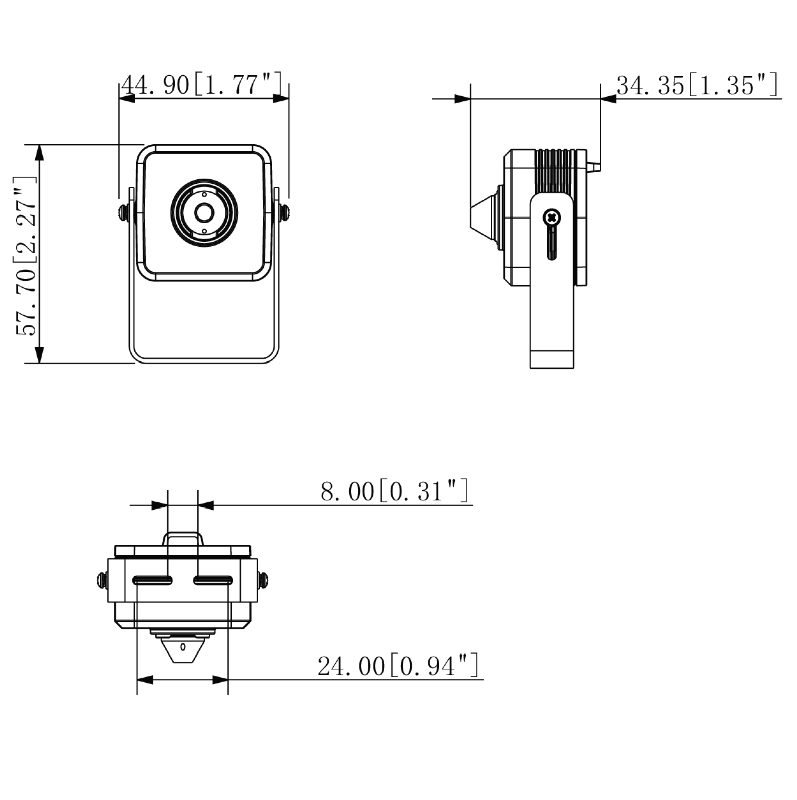

Dimensions: 44.9 x 57.7 x 34.35mm

Net Weight: 0.102kg

Warranty (Years): 4

Shipping Weight and Dimensions

Includes product packaging

Width: 82 mm

Height: 85 mm

Depth: 80 mm

Weight: 0.30 kg
