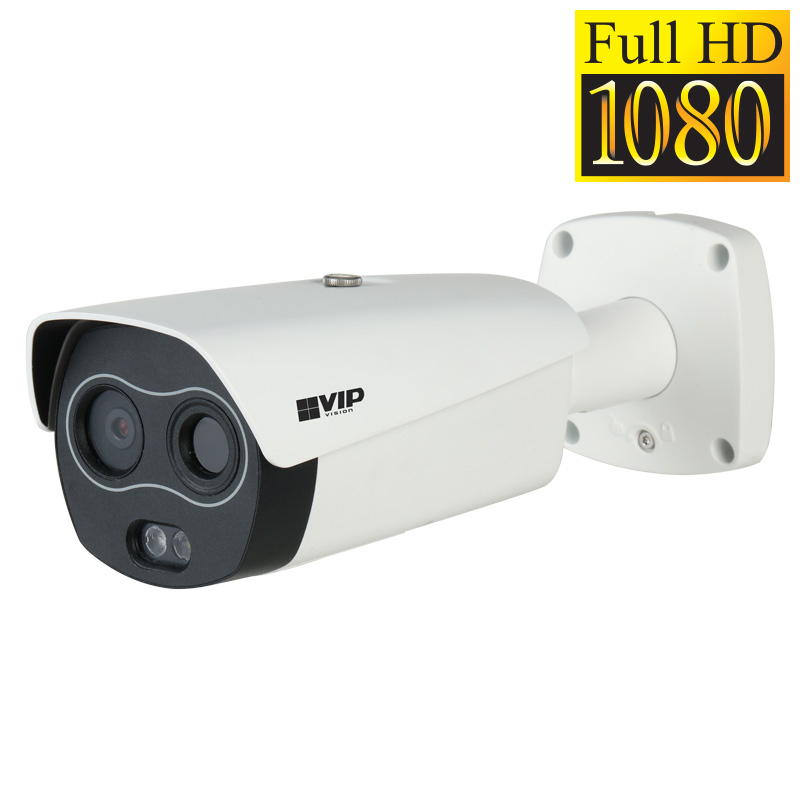

VIP Vision Professional Series 2.0MP Thermal Hybrid Fixed Bullet VSIPTC2MPFB2

Specifications

Camera
Image Sensor (Visible)
Max. Resolution
2.0 Megapixel
Effective pixel (Visible)
Min Illumination
0.005 Lux/F1.8 (Color), 0.0005 Lux/F1.8(B/W) 0 Lux/F1.8 (IR on)
Infrared System
1 x Infrared LED, 35m range, Auto/manual on/off control
Thermal
Image Sensor (Thermal)
Effective pixel (Thermal)
Range & Sensitivity
Image Settings
Brightness, Sharpness, Region of Interest, Auto Gain Control, Flat Field Correction, 3D Digital Noise Reduction
Colour Palettes
18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Image Fusion Modes
Lens
Focal Length
Field of View
Horizontal: 80?, Vertical: 45?
Aperture
Close Focus Distance
Video
Resolution & Frame Rate (Main)
Resolution & Frame Rate (Sub)
Video Compression
H.265 / H.264M / H.264H / H.264B / MJEG
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / DWDR
White Balance
Auto / Indoor / Outdoor / Manual etc.
Gain Control
Auto / Manual
Noise Reduction
2D/3D DNR
Picture Control
Mirror / Flip (180?)
IVS
Intelligent Functions
Tripwire, Intrusion
Thermal Functions
Fire detection & alarm, cold/hot spot trace, human/vehicle classification, smoke detection
Interface
Ethernet
RJ-45 (10/100Base-T)
Network Protocol
Max. User Access
20 users
Audio Interface
1 Input / 1 Output
Alarm Interface
2 Input / 2 Output
Edge Storage
MicroSD Card (up to 256GB) / memory status display (normal/error/active/lock/formatting) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE
Power Consumption
<12W Operating Conditions -30? ~ +60? C / Less than 95% RH Ingress Protection IP67 Vandal Resistance No Series Professional Series Camera Type Bullet Housing Metal Dimensions & Weight Other Bit Rate H.264: 640 ~ 8192Kbps Category Network Surveillance Detect (25px/m) Person: 146m / Vehicle: 389m Dimensions 280mm x 104mm x 96mm (with bracket) Effective Pixels 1920 (H) x 1080 (V) Effective Pixels (Thermal) 256 (H) x 192 (V) ePoE No Field of View (Thermal) Horizontal: 50.6?, Vertical: 37.8? Focus Fixed Focus (Thermal) Athermalized, Focus-free Frame Rate (Main) Visible: 50Hz 1920 x 1080 to 704 x 576 (1~25fps) / Thermal: 50Hz 1280 x 960 to 256 x 192 (1~25fps) Frame Rate (Sub) Visible: 50Hz 704 x 576 to 352 x288 (1~25fps) / Thermal: 50Hz 640 x 480 to 256 x 192 (1~25fps) Frame Rate (Third) N/A Identify (250px/m) Person: 19m / Vehicle: 49m Image Sensor 1/2.8?? 2.0MP Progressive Scan CMOS Infrared Yes IVS Yes Lens / Iris 4mm F2.0 Fixed Lens Lens / Iris (Thermal) 3.5mm F1.0 Fixed Lens Lens Type Fixed Net Weight 1.4kg Observe (63px/m) Person: 57m / Vehicle: 153m Pan/Tilt/Rotation N/A Protocol HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPOE,IPv4/v6, SNMP, QoS, UPnP, NTP Recognise (125px/m) Person: 38m / Vehicle: 97m Resolution 1080p (1920 x 1080) to CIF (256 x 192) RS485 Support RTMP Support No Sensitivity (NETD) <50mK@f/1.1 Spectral Range 8~14?m Streaming Method Unicast / Multicast Thermal Sensor Uncooled VOx Microbolometer Tri-Axis Mounting No Ultra Low Light Colour Yes Video Interface 1 Port BNC Weather Resistance Yes Warranty (Years) 4 Shipping Weight and Dimensions Includes product packaging Width 176 mm Height 178 mm Depth 366 mm Weight 1.90 kg
