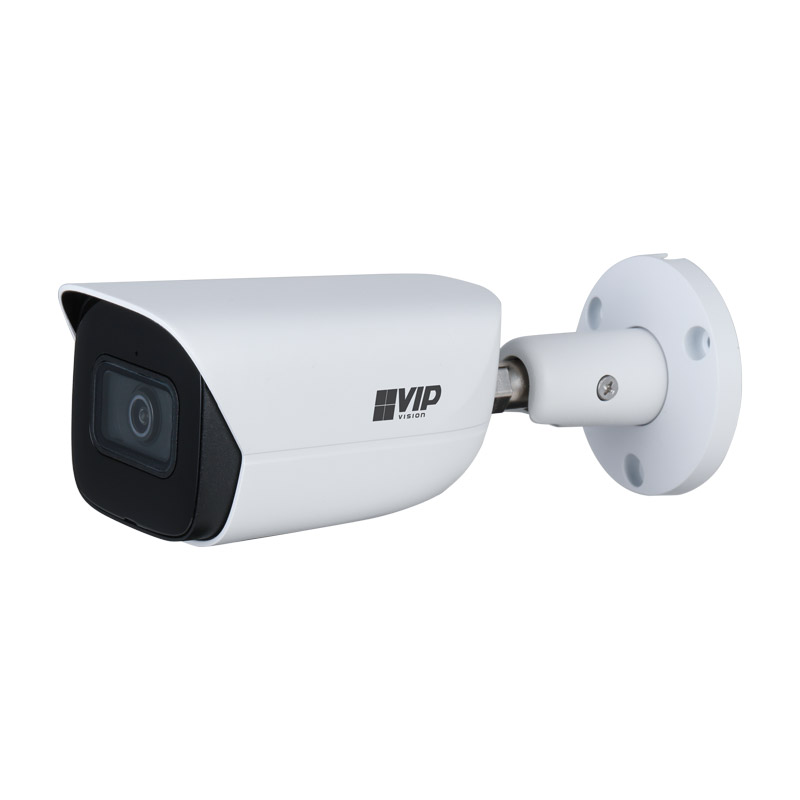

VIP Vision Professional AI Series 8.0MP Fixed Bullet VSIPP-8BIRG-I2
$263.44 inc GST
Specifications
Camera
Image Sensor
1/2.8?? 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.007 Lux/F1.4 (Color)
S/N Ratio
> 56dB
Infrared System
2 x Infrared LED, 30m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F1.6 Fixed Lens
Field of View
Horizontal: 107?, Vertical: 56?
Focus
Focus / 1.5m Min. Focus Distance
DORI
Detect (25px/m)
64m
Observe (63px/m)
25m
Recognise (125px/m)
13m
Identify (250px/m)
6m
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Built-in Mic / Audio Compression – G.711a; G.711Mu; G726
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<7.2 W
Operating Conditions
-30?C ~ +60?C / ?95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Series
Professional AI Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0? ~ 360?, Tilt: 0? ~ 78?, Rotation: 0? ~ 360?
ePoE
No

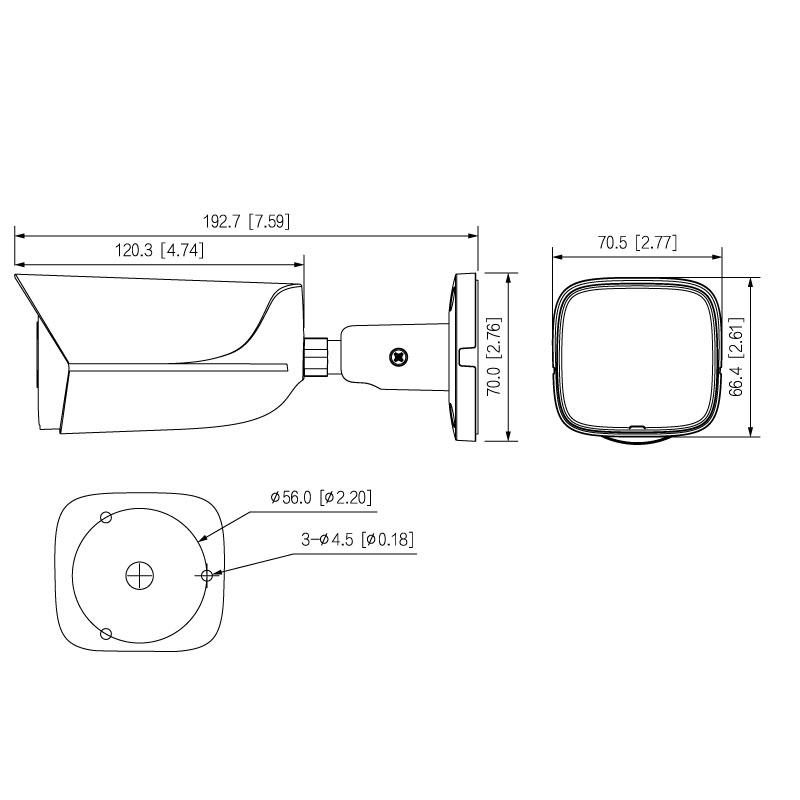

Dimensions
192.7mm x 70.5mm x 66.4mm
Net Weight
0.59kg
Warranty (Years)
4
Shipping Weight and Dimensions
Includes product packaging
Width
120 mm
Height
140 mm
Depth
260 mm
Weight
0.80 kg
25 in stock
Fast Shipping
On All Orders
15+ Years
Industry Experience
Australian Company
Owned & Operated
Easy Returns
30 Days Peace Of Mind
Description
The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.
Camera features:
? Stream up to 8.0MP (3840 x 2160) at 25fps
? 2.8mm fixed lens with 107? viewing angle
? H.265 encoding for efficient storage & streaming
? Up to 30m infrared range; true day/night (auto ICR)
? MicroSD slot for recording at the edge up to 256GB
? AI powered perimeter protection & smart motion detection (SMD 4.0)
? Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
? AI weather and anti-flicker scene self-adaption
? Back/highlight compensation & true WDR (120dB)
? 3D digital noise reduction & auto white balance
? IP67 weather rated housing for outdoor use
