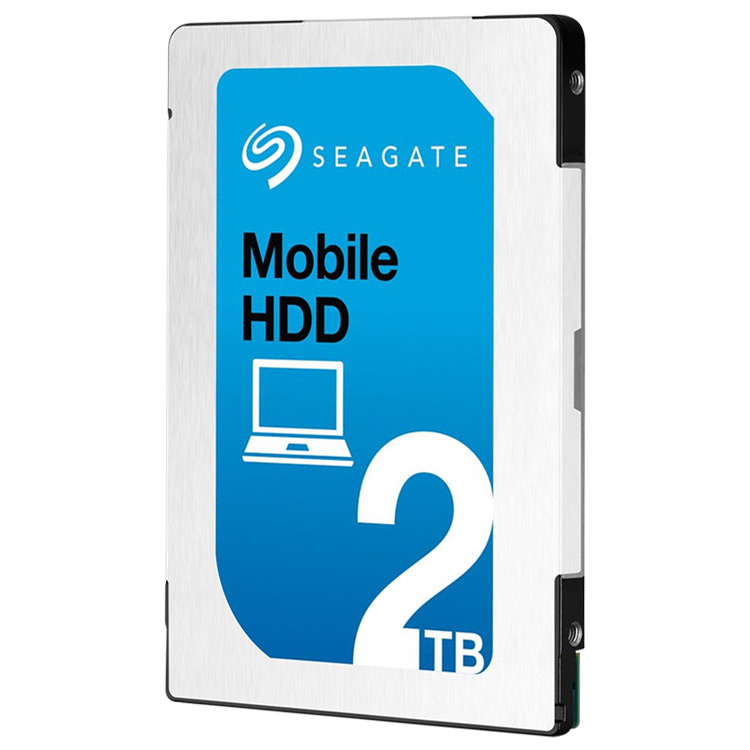

Seagate 2TB Mobile Hard Disk Drive (2.5”) HD2TBSV2.5

Description

Small in size and lightweight in design, this Seagate Mobile HDD 2.5” hard disk drive features 2TB storage capacity and is ideal for use in HDCVI or IP mobile/vehicle surveillance systems.

SPECIFICATIONS

1ms Non-operating Shock (Gs): 1,000 Gs

2ms Operating Shock (Gs): 400 Gs

Acoustics, Idle, Typical (bels): 2.2 bels

Acoustics, Seek, Typical (bels): 2.4 bels

Bytes per Sector (logical/physical): 512/4,096

Cache: 128 MB

Data Transfer Rate (up to): 140MB/s

Depth (mm, max): 100.35 mm

Form Factor: 2.5″ HDD

Halogen-free: Yes

Head-Rest Method: QuietStep™ Ramp Load

Height (mm): 7 mm

Idling Average (W): 0.5 W

Interface: SATA 6Gb/s

Load/Unload Cycles: 600000

Non-operating Temperature (°C): -40°C – 70°C

Non-recoverable Read Errors per Bits Read, Max: 1 per 10E14

Operating Temperature (°C): 0°C – 60°C

Read/Write Power, Average (W): 1.7/1.8

RoHS compliance: Yes

Spindle Speed: (RPM) 5400

Startup Current (+5V, A): 1

Weight (g): 90 g

Width (mm, max): 69.85 mm

Warranty (Years): 1

Shipping Weight and Dimensions

Includes product packaging

Width: 30 mm

Height: 100 mm

Depth: 120 mm

Weight: 0.12 kg
