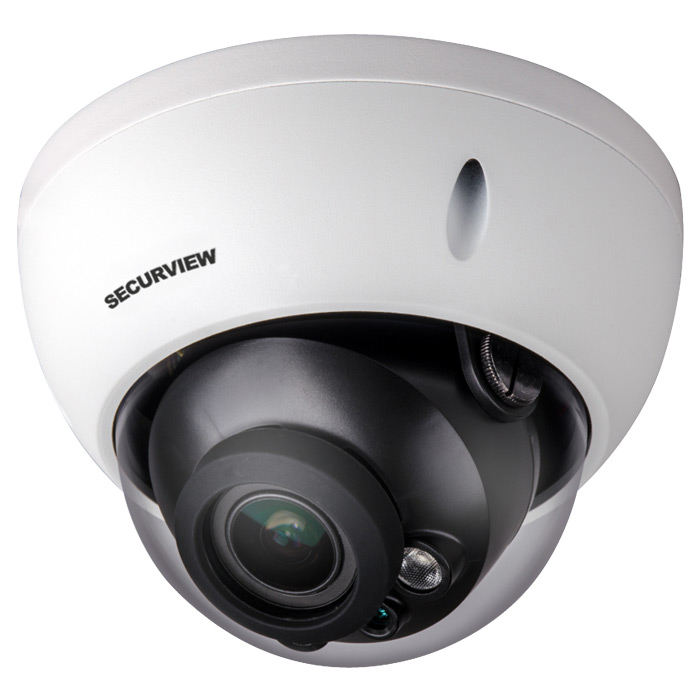

Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Dome VSCVI-5DIRMD

$257.49 inc GST

20 in stock

fast-delivery

Fast Shipping

On All Orders

worker

15+ Years

Industry Experience

Australian Company

Owned & Operated

30-days

Easy Returns

30 Days Peace Of Mind

Description

The VSCVI-5DIRMD is a strong performer in all conditions. Get the perfect viewing angle with motorised varifocal lens, enjoy excellent ultra low light performance, all in a vandal / weather resistant body.

Camera features:
• Streams 5.0MP (2592 x 1944) at 20fps
• Motorised 2.7 ~ 13.5mm lens, fixed iris
• 109 ~ 29° horizontal viewing angles
• Superb colour image performance in low light at 0.005lx
• Infrared illumination up to 30m
• Auto white balance, 3D noise reduction & true WDR (120dB)
• Up to 700m HD video transmission over coax
• IP67/IK10 for weather & vandal resistance
• Dual power input 12VDC/24VAC
• Supports HDCVI, AHD, HDTVI & Composite video format modes

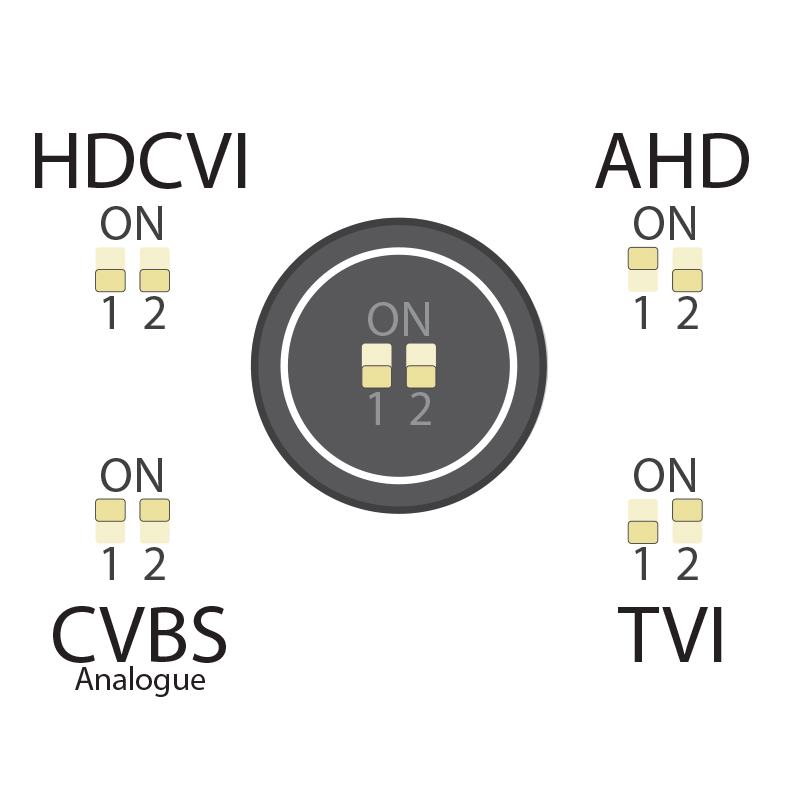

• Switch modes via DIP switches

Specifications

General
Image Sensor: 1/2” 5.0 Megapixel CMOS
Max. Resolution: 5.0 Megapixel
Effective Pixels: 2592 (H) x 1944 (V)
Signal Noise Ratio: >65dB
Camera
Lens: 2.7 ~ 13.5mm F1.3 Motorised Lens; Fixed Iris
Lens Type: Motorised Varifocal
Angle of View: 109° (wide) ~ 29° (tele)
Focus: Auto/Manual
Minimum Illumination: 0.005 Lux at F1.3 (Colour) / 0 Lux IR Active
Electronic Shutter: 1/4s ~ 1/100,000s
Day/Night: Auto (ICR) / Manual
Infrared Range: 30m
White Balance: Auto / Manual
Noise Reduction: 2D / 3D
Gain Control: Auto
Lighting Compensation: BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m): 64m (wide) / 222m (tele)
Observe (63px/m): 26m (wide) / 89m (tele)
Recognise (125px/m): 13m (wide) / 44m (tele)
Identify (250px/m): 6m (wide) / 22m (tele)
Video
Resolution: 5.0MP (2592 x 1944) to CIF (352 x 288)
Frame Rate: 20fps (5.0MP) / 25fps (4.0MP and lower)
Transmission Distance: Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input: 1 channel in
Alarm Interface:  N/A
Video Output: 1 x HDCVI / AHD / TVI / Composite video output
Modes Supported: HDCVI, AHD, HDTVI & Composite

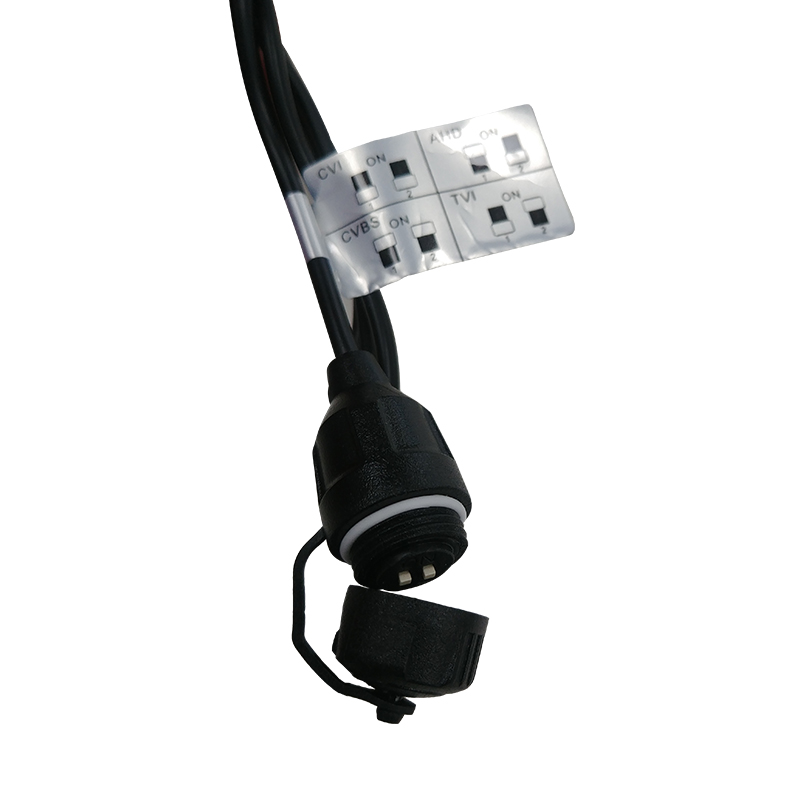

Mode Switching: DIP Switches
Synchronisation: Internal
OSD Menu: Support
Environmental
Ingress Protection: IP67
Vandal Resistant: IK10
Series: Professional Series
Housing: Metal, Polycarbonate
Camera Type: Dome
Tri-Axis Mounting: Yes
Power Input: 12VDC/24VAC
Power Consumption: <11.8W
Dimensions: Ø122 x 89mm
Weight: 0.48kg
Operating Environment: -30° to 60°C / RH90% (max)
Warranty (Years): 4

Shipping Weight and Dimensions Includes product packaging

Width: 175 mm
Height: 170 mm
Depth: 175 mm
Weight: 0.70 kg
