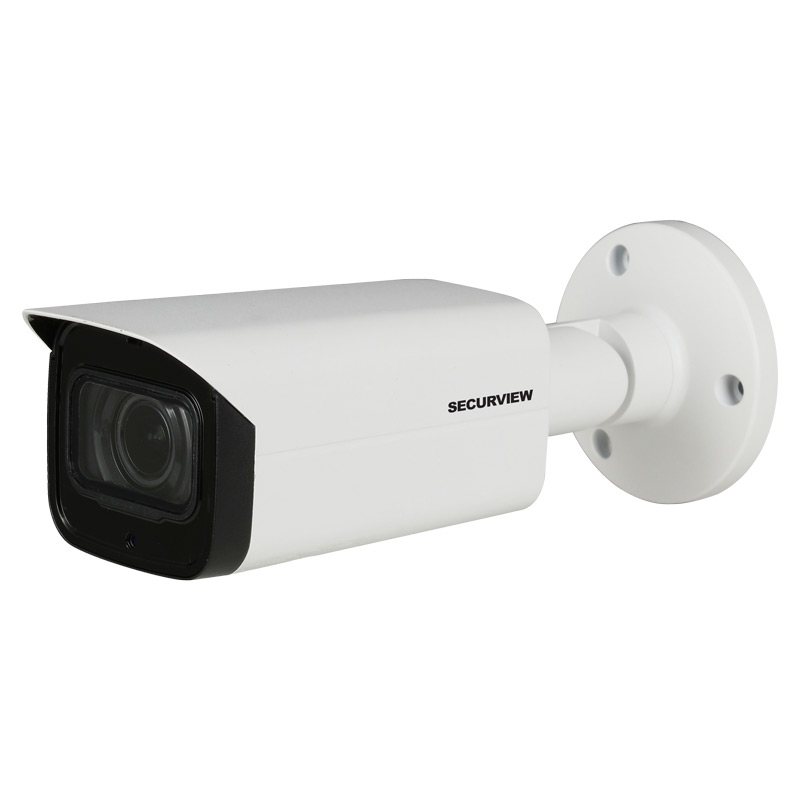

Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG
Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG - Image 2
Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG - Image 3
Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG - Image 4
Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG - Image 5
Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG - Image 6
Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG - Image 7
Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG - Image 8

Securview Victory Series Professional Series 5.0MP WDR Motorised HDCVI Bullet VSCVI-5BIRMG

$257.49 inc GST

20 in stock

fast-delivery

Fast Shipping

On All Orders

worker

15+ Years

Industry Experience

Australian Company

Owned & Operated

30-days

Easy Returns

30 Days Peace Of Mind

SKU: VSCVI-5BIRMG Categories: , ,

Description

With superior 80m infrared illumination, more than double Full HD resolution and ultra low light colour, the VSCVI-5BIRMG captures clear footage at all hours, featuring a motorised varifocal lens for easy remote image adjustment.

Camera features:
• Stream up to 5.0MP (2592 x 1944) at 20fps
• Motorised varifocal 2.7~13.5mm lens with motorised iris
• Large 1/2.8” sensor for excellent low light performance
• Smart infrared illumination, up to 80m range

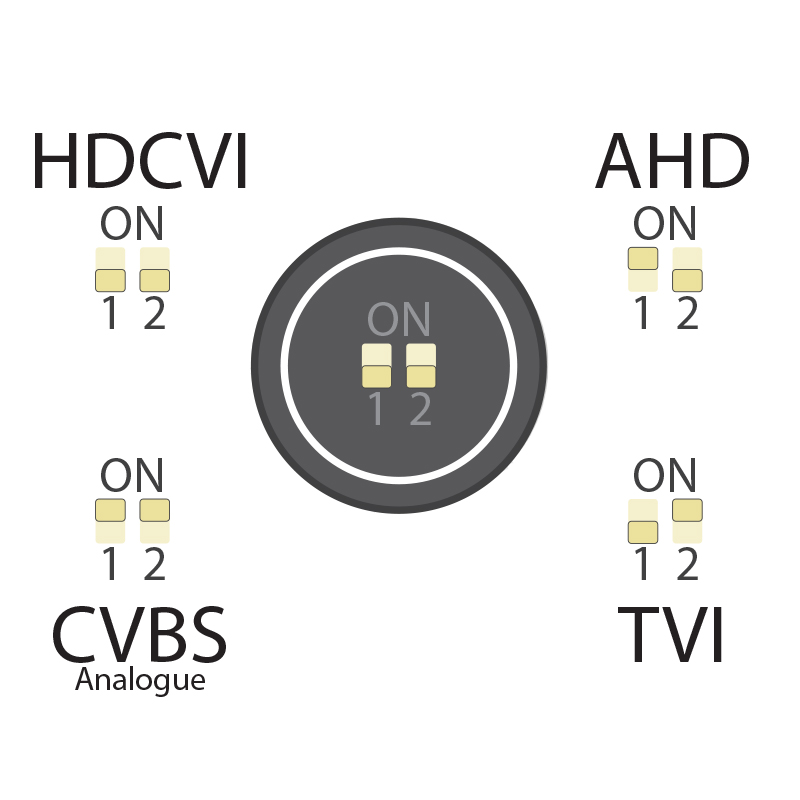

• HDCVI / AHD / Composite switchable via DIP switch
• Up to 700m video transmission over coaxial cable
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistant metal housing
• Supports HDCVI, AHD, HDTVI & Composite video format modes

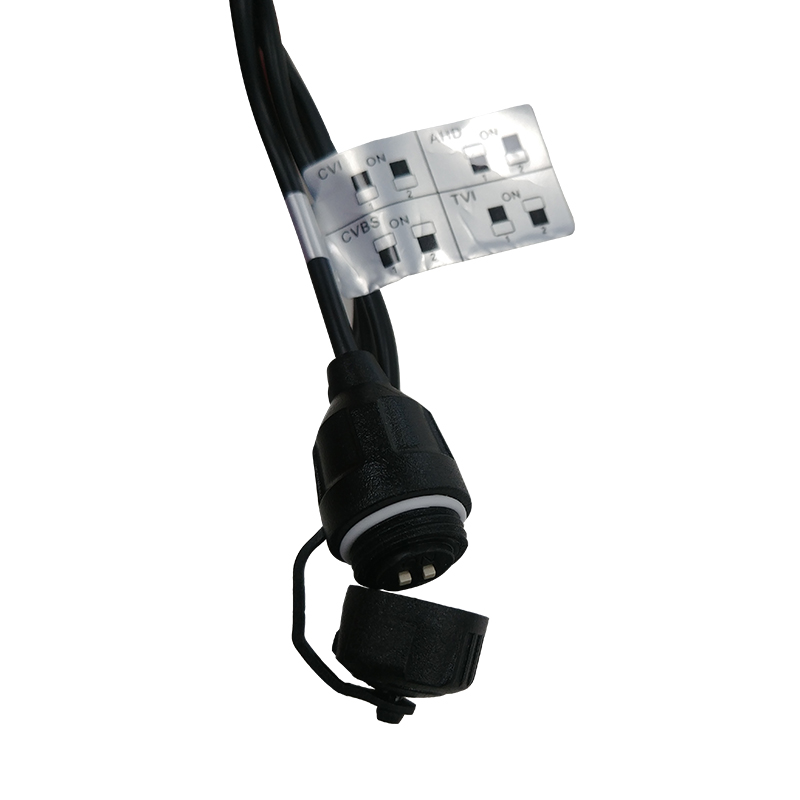

• Switch modes via DIP switches

Specifications

General
Image Sensor: 1/2.8” 5.0 Megapixel CMOS
Max. Resolution: 5.0 Megapixel
Effective Pixels: 2592 (H) x 1944 (V)
Signal Noise Ratio: > 65dB
Camera
Lens: 2.7mm ~ 13.5mm F1.3 Motorised Lens, Fixed Iris
Lens Type: Motorised Varifocal
Angle of View: 102° (wide) ~ 29° (tele)
Focus: Fixed / 0.2m Min. Focus Distance
Minimum Illumination: 0.005 Lux at F1.3 (Colour) / 0 Lux IR Active
Electronic Shutter: 1/4 ~ 1/100,000s
Day/Night: Auto (ICR) / Colour / B&W
Infrared Range: 80m
White Balance: Auto / Manual
Noise Reduction: 2D / 3D
Gain Control: Auto
Lighting Compensation: BLC / HLC / WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m): 64m (wide) / 222m (tele)
Observe (63px/m): 26m (wide) / 89m (tele)
Recognise (125px/m): 13m (wide) / 44m (tele)
Identify (250px/m): 6m (wide) / 22m (tele)
Video
Resolution: 5.0MP (2592 x 1944) to CIF (352 x 288)
Frame Rate: 20fps (5.0MP) / 25fps (4.0MP and lower)
Transmission Distance: Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Interface
Audio Input: Built-in Microphone / 1 Input
Alarm Interface: N/A
Video Output: 1 x HDCVI / AHD / TVI / Composite video output
Modes Supported: HDCVI, AHD, HDTVI & Composite
Mode Switching: DIP Switches
Synchronisation: Internal
OSD Menu: Support
Environmental
Ingress Protection: IP67
Vandal Resistant: N/A
Series: Professional Series
Housing: Aluminium
Camera Type: Bullet
Tri-Axis Mounting: No
Power Input: 12VDC / 24VAC
Power Consumption: < 17.2W

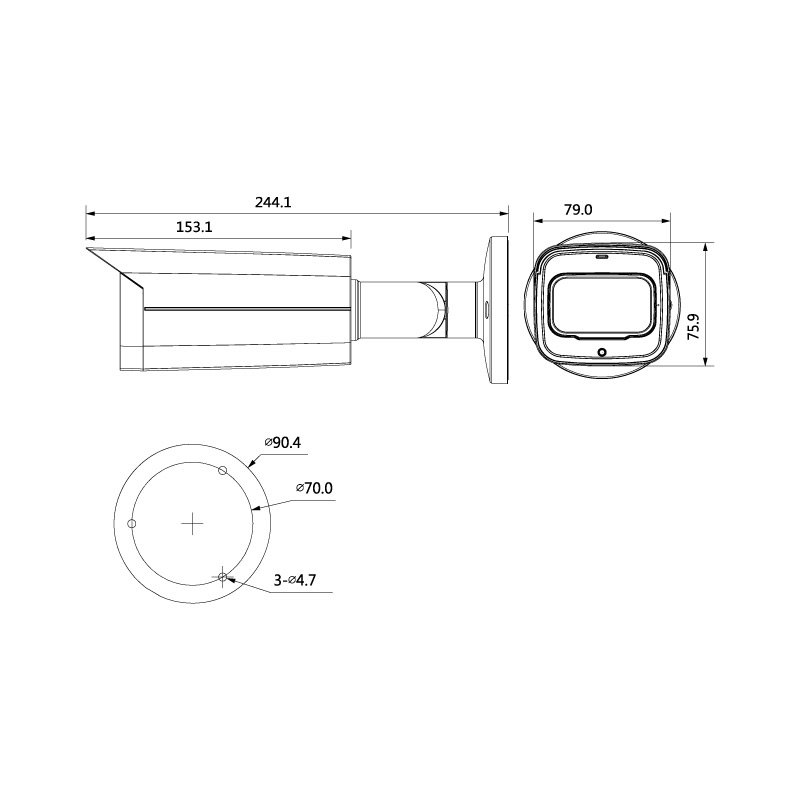

Dimensions: 244 x 90 x 90mm
Weight: 0.81kg
Operating Environment: -30° to 60°C / RH90% (max)
Warranty (Years): 4

Shipping Weight and Dimensions Includes product packaging

Width: 156 mm
Height: 308 mm
Depth; 145 mm
Weight: 0.97 kg
