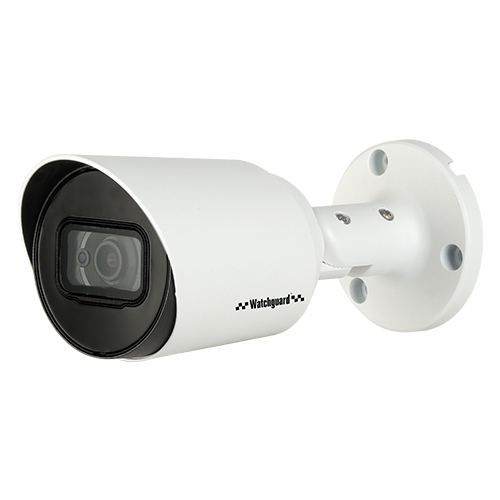

Watchguard Compact Series 1080p Fixed HDCVI Mini Bullet VSCVI-2BIRC

Watchguard Compact Series 1080p Fixed HDCVI Mini Bullet VSCVI-2BIRC

$82.94 inc GST

fast-delivery

Fast Shipping

On All Orders


Australian Company

Owned & Operated

worker

15+ Years

Industry Experience

30-days

Easy Returns

30 Days Peace Of Mind

19 in stock

SKU: VSCVI-2BIRC Categories: , ,

Description

Achieve over double the image resolution of analogue at Full HD with the Compact Series VSCVI-2BIRC HDCVI bullet from Watchguard. Capture clear footage during all hours with superior low light performance, true WDR and weather resistance.

Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Fixed 3.6mm lens; 87° viewing angle
• Up to 800m Full HD video transmission over coax
• Superb low light performance 0.005lx
• Infrared illumination up to 30m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• All metal construction
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)

Specifications

General
Image Sensor: 1/2.8″ 2.0 Megapixel CMOS
Max. Resolution: 2.0 Megapixel
Effective Pixels: 1920 (H) x 1080 (V)
Signal Noise Ratio: > 65dB
Camera
Lens: 3.6mm F1.6 Fixed Lens
Lens Type: Fixed
Angle of View: 87°
Focus: Auto/Manual
Minimum Illumination: 0.005 Lux at F1.6 (Colour) / 0 Lux IR Active
Electronic Shutter: 1/3s ~ 1/100,000s
Day/Night: Auto (ICR) / Manual
Infrared Range: 30m
White Balance: Auto / Manual
Noise Reduction: 2D
Gain Control: Auto
Lighting Compensation: BLC / HLC / True WDR (120dB)
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m): 55m
Observe (63px/m): 22m
Recognise (125px/m): 11m
Identify (250px/m): 6m
Video
Resolution: 1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate: 25fps (1080p) / 60fps (720p)
Transmission Distance: Over 800m via 75-3 coaxial cable
Interface
Audio Input: N/A
Alarm Interface: N/A
Video Output: 1 x BNC SD/HD video output (switchable)
Modes Supported: HDCVI, AHD, HDTVI & Composite
Mode Switching: OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
Synchronisation: Internal
OSD Menu: Multi language
Environmental
Ingress Protection: IP67
Vandal Resistant: N/A
Series: Compact Series
Housing: Aluminium
Camera Type: Bullet
Tri-Axis Mounting: Yes
Power Input: 12VDC
Power Consumption: Max 3.7W (12VDC, IR on)
Dimensions: 165mm x 70mm x 712mm
Weight: 0.36kg
Operating Environment: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Other
Analogue Support: Yes (Switchable)
Warranty (Years): 4

Shipping Weight and Dimensions Includes product packaging

Width: 100 mm
Height: 200 mm
Depth: 150 mm
Weight: 1.00 kg
