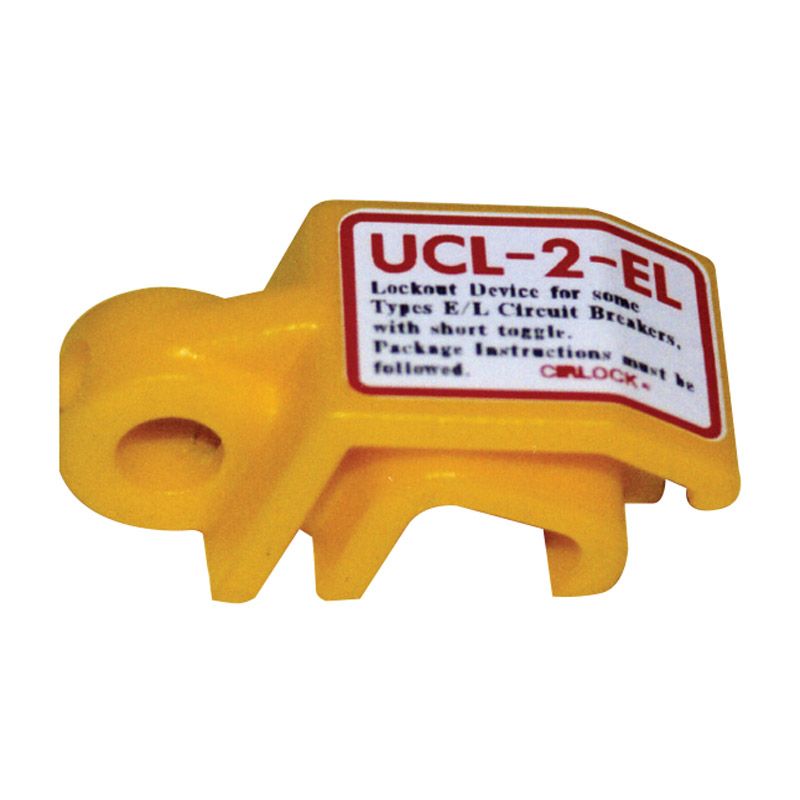

Cirlock RCD/Circuit Breaker Short Toggle Lockout CIRUCL2EL

Description

Universal Lockout Device can help prevent unintended energisation of energy source.
FEATURES & BENEFITS
Suitable for Certain Types of Moulded Case Circuit Breakers
Material: Nylon Plastic with ZP Metal set screw
Dimensions: 51mm x 25mm x 23mm wide
APPLICATION
Clamp UCL-2-EL onto the Circuit Breaker toggle in the OFF position, using a small screwdriver tighten the set screw in the device. Place a padlock through the hole to prevent access to the screw. Verify the breaker CANNOT be turned in the ON position.**
NOT SUITABLE FOR ALL MCCB’S.
Max toggle size it can clamp: 8mm. CANNOT be used on earlier type SAFE-T DRCB E/L CB with longer toggle.
Not suitable for all NHP Safe-T N15251. Check toggle shape if using on NHP breaker. Toggle needs to be rounded in shape.
