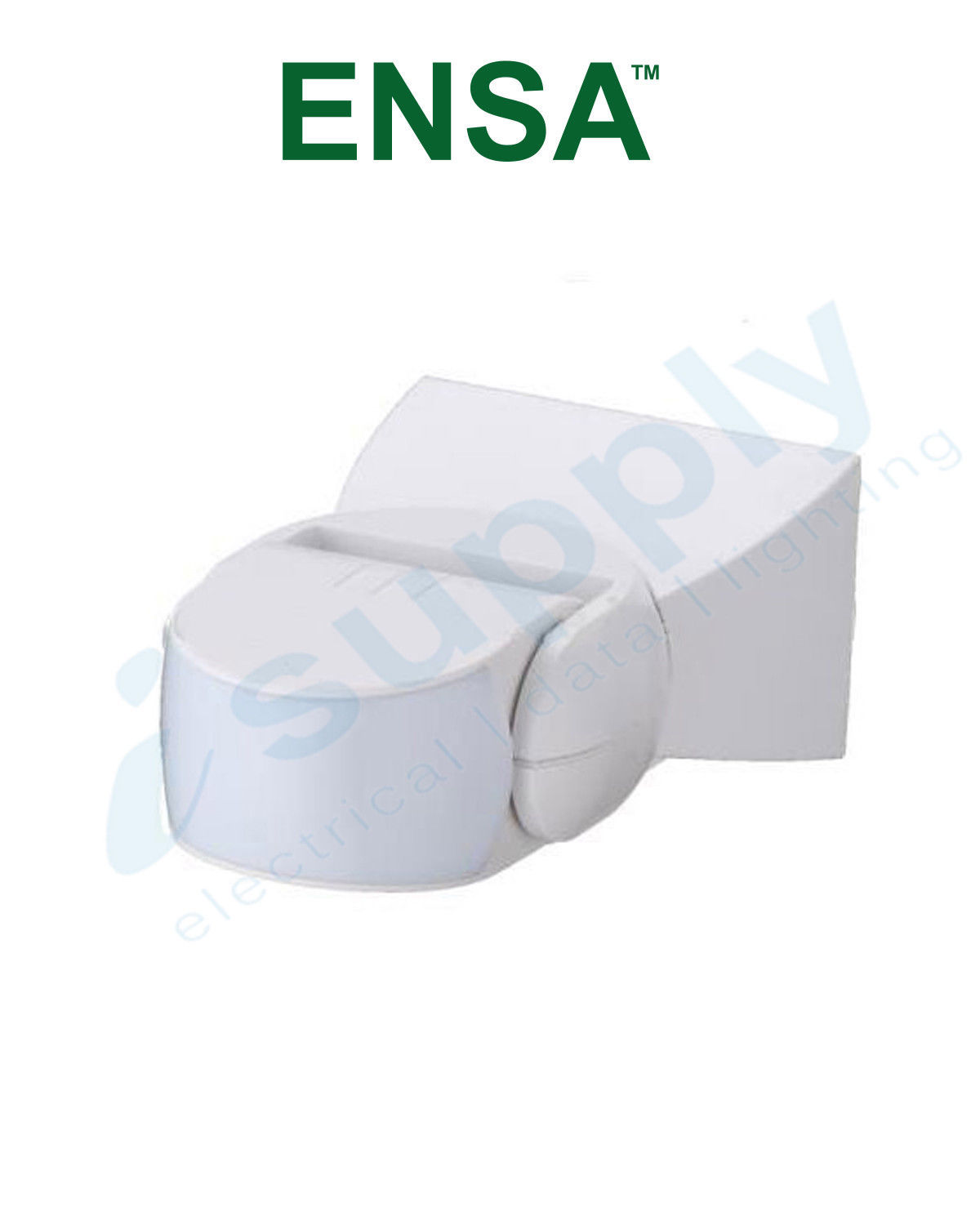

ENSA Wall Mount Microwave Sensor Motion Activated Switch ENSA-MS6

Description

The ENSA-MS6 is an intelligent sensor switch, designed for wall mounting. It features configurable ambient light sensing, microwave motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:

1) Daylight sensor: Activates motion sensor when lux levels fall below limit

2) Motion sensor: Detects movement, turns light on only when necessary

3) On-timer: Light-on duration is set only as long as is required

Product features:

• Automatically activate and deactivate lighting for energy efficiency

• Adjustable sensors: Daylight (3~2000lx) / Motion (5~15m) / On-timer (3s~12min)

• 180° arc / 5m ~ 15m microwave detection

• Wall mount angle adjustable, IP65 rated for outdoor use

• 3 year warranty

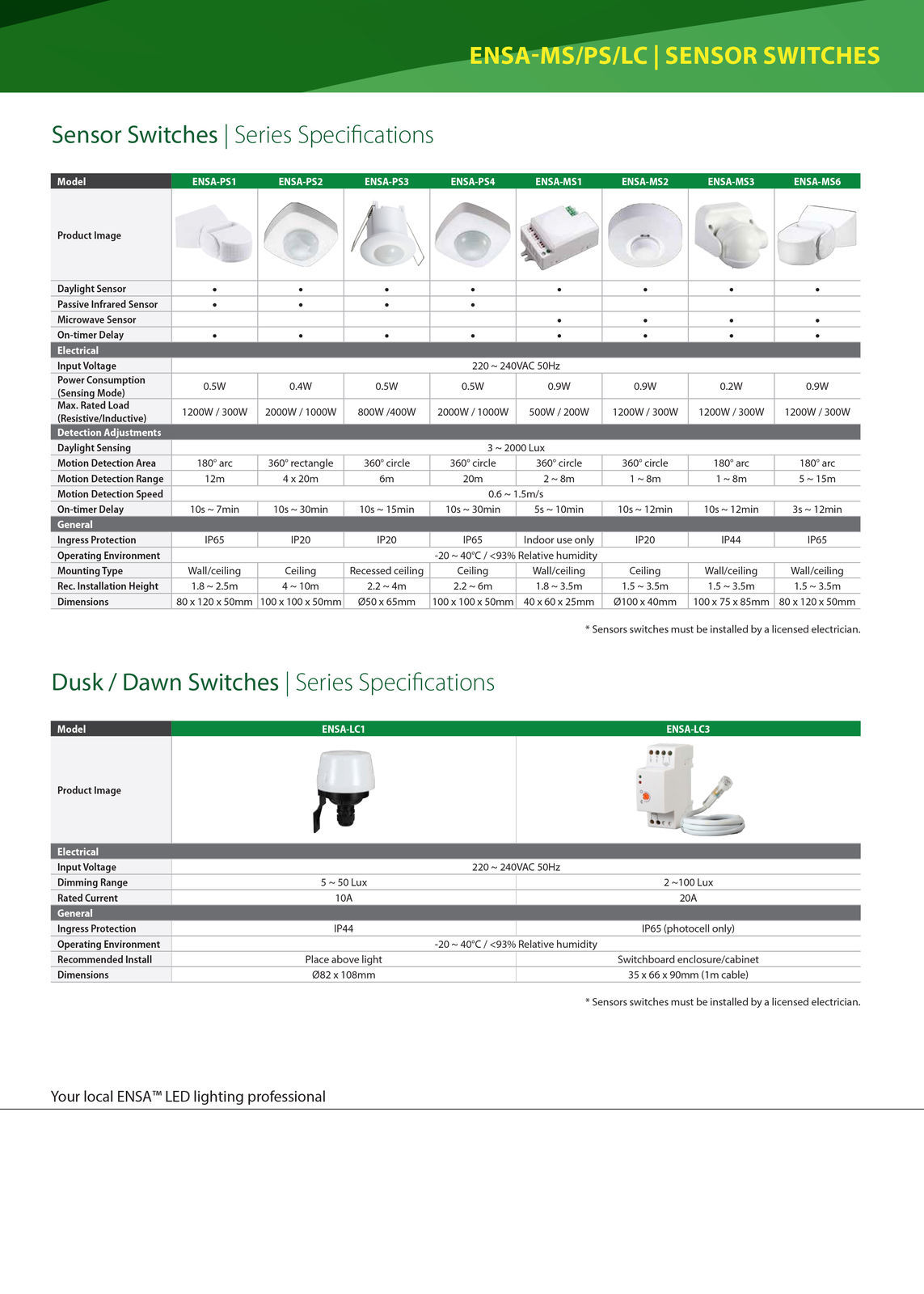

SPECIFICATIONS

Features:

Daylight Sensor: Yes

Motion Sensor Type: Microwave

Electrical:

Input Voltage: 220 ~ 240VAC 50/60Hz

Power Consumption (Sensing Mode): 0.9W

Max. Rated Load (Resistive/Inductive): 1200W / 300W

Detection:

Daylight Sensing: 3 ~ 2000 Lux

Motion Detection Area: 180° arc (5m ~ 15m adjustable radius)

Motion Detection Adjustment: 100% to 33% (knob)

Recommended Installation Height: 1.5 ~ 3.5m

Motion Detection Speed: 0.6 ~ 1.5m/s

On-timer Delay: 3s ~ 12min

Stand-by Period: N/A

Stand-by Dimming: N/A

General:

Ingress Protection: IP65

Operating Environment: -20 ~ 40°C / <93% Relative humidity

Mounting Type: Wall

Dimensions: 80 x 120 x 50mm

Warranty (Years): 3

Shipping Weight and Dimensions

Includes product packaging

Width: 82 mm

Height: 135 mm

Depth: 72 mm

Weight: 0.20 kg
