ENSA LHB-G150-A 150W LED High Bay Light | Adjustable Wattage, CCT & Beam
$219.99 inc GST
The ENSA LHB-G150-A LED High Bay Light combines selectable wattage, colour temperature and beam angle in one compact fitting. Suitable for warehouses, workshops, garages and commercial spaces, it delivers up to 25,500 lumens at 150W and 4000K.
- Selectable power: 80W, 120W or 150W.
- Selectable colour temperature: 3000K, 4000K or 5000K.
- Adjustable beam angle: 60°, 90° or 110°.
- High efficiency: 170lm/W at 4000K.
- IP65 protection: die-cast aluminium housing with polycarbonate lens.
- Control options: 0–10V dimming and optional motion sensor accessories.
- Supplied with: 3-pin AC plug, mounting hook and steel safety tether.
- Warranty: 5 years.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
20 in stock
Description

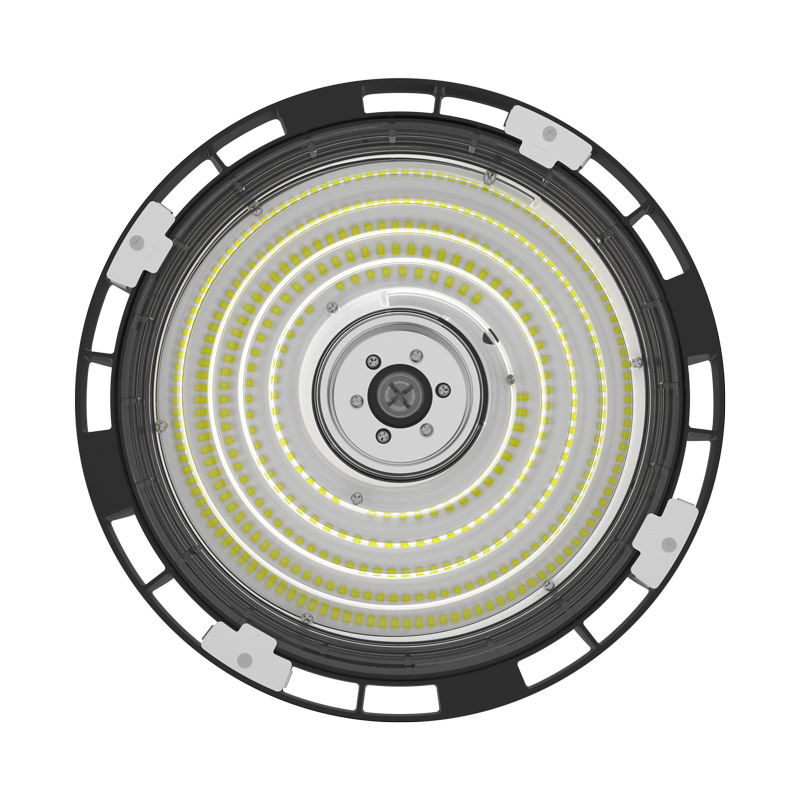

ENSA LHB-G150-A Adjustable 150W LED High Bay Light
Configure your lighting to suit your space with the ENSA LHB-G150-A multi-adjustable LED high bay light. With three power settings, three colour temperatures and three beam angles, this versatile fitting suits a range of warehouse, workshop, industrial, commercial and retail lighting applications.
Choose 80W, 120W or 150W power output, select 3000K, 4000K or 5000K colour temperature, and adjust the lens to a 60°, 90° or 110° beam angle. At 150W and 4000K, the fitting produces 25,500 lumens with a luminous efficacy of 170lm/W.
Adjustable High Bay Lighting for Your Space
Selectable 80W, 120W and 150W Power

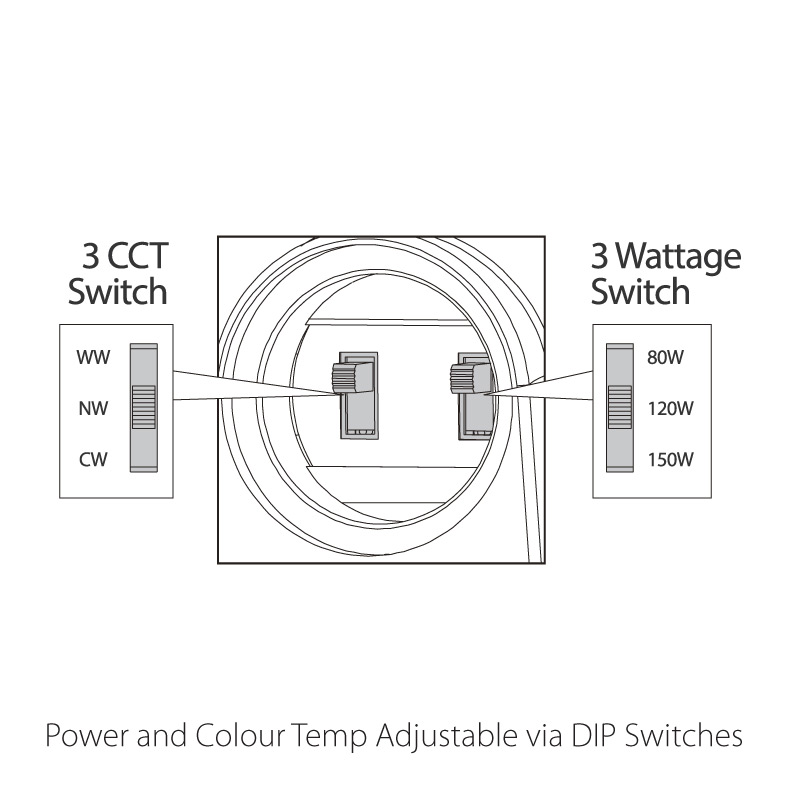

Set the power output using the DIP switch to adjust brightness and energy consumption. The three selectable wattages provide flexibility when specifying lighting for different areas.
Three Colour Temperature Settings
Choose warm white 3000K, natural white 4000K or cool white 5000K using the colour temperature DIP switch. This allows the same fitting to suit different lighting preferences and applications.

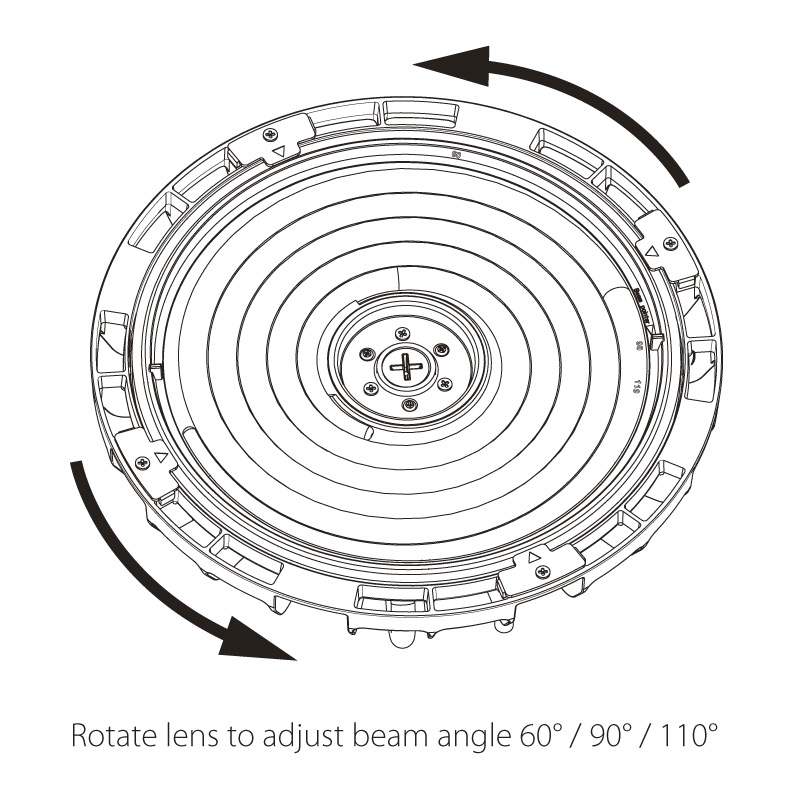

Adjustable 60°, 90° and 110° Beam Angles
Rotate the lens to select the beam angle for your lighting layout and mounting height. A narrower beam concentrates light over a smaller area, while a wider beam spreads light across a broader area.
IP65 Construction and Flexible Lighting Controls
Die-Cast Aluminium Housing
The heavy die-cast aluminium chassis supports heat dissipation, while the polycarbonate lens and IP65-rated construction provide protection against dust and water ingress. Gasket-sealed DIP switches and motion sensor inputs help maintain the fitting’s protection.

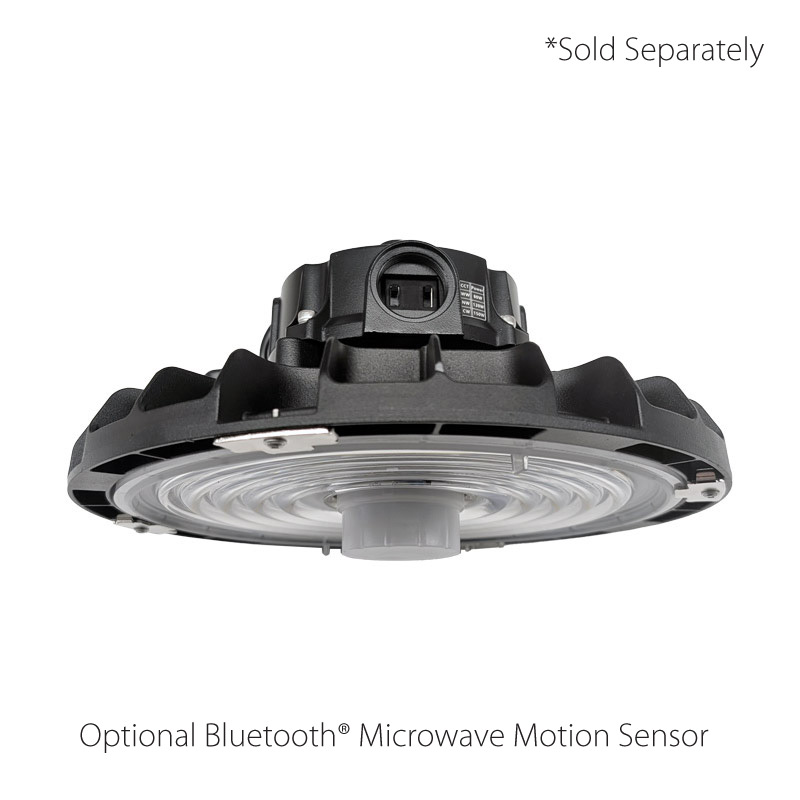

0–10V Dimming and Optional Motion Sensors
The LHB-G150-A supports 0–10V dimming and optional retrofit motion sensor accessories. Compatible optional accessories include Bluetooth motion sensor and wall switch options, plus a bidirectional infrared remote for configuration. Sensors and control accessories are optional and are not included as standard.

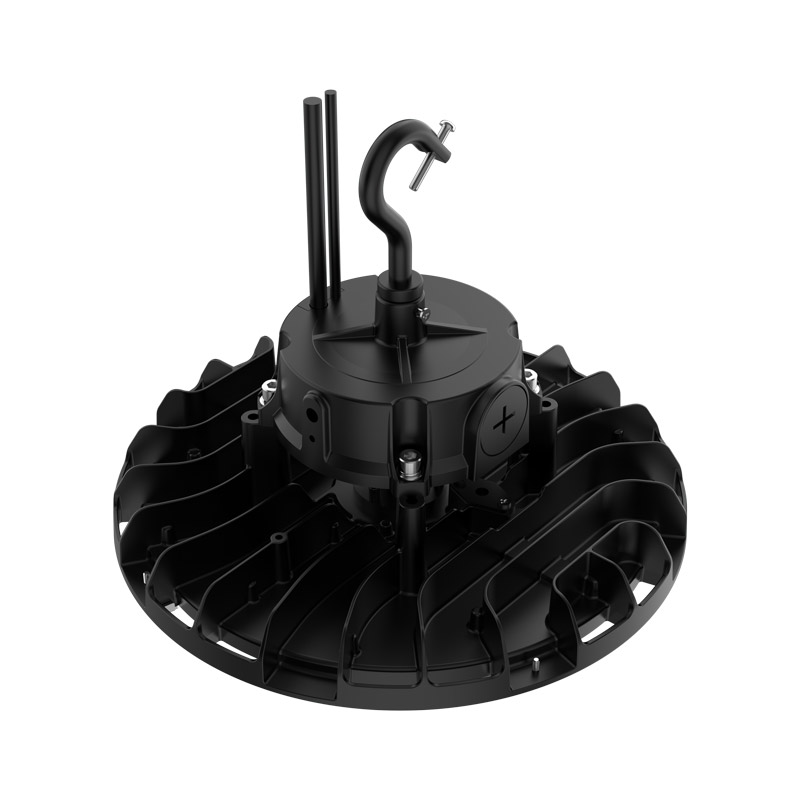

Hook Mounting and Safety Tether
The fitting includes a G1/2-inch threaded mounting hook for chain mounting, a steel safety tether cable and a 3-pin AC plug. Its compact body measures 266mm in diameter and 118mm high excluding the hook.
Suitable Applications
- Warehouses and storage facilities.
- Workshops and garages.
- Industrial and commercial premises.
- Sporting facilities.
- Retail spaces requiring high bay lighting.
Final fitting quantities, beam angles and mounting positions should be selected to suit the required lighting levels and site layout. Manufacturer IES photometric files are available below for lighting design.
ENSA LHB-G150-A Technical Specifications
| Brand | ENSA |
|---|---|
| Model / SKU | LHB-G150-A |
| Selectable Power | 80W / 120W / 150W |
| Light Output | 25,500lm at 150W / 4000K |
| Luminous Efficacy | 170lm/W at 4000K |
| Colour Temperature | 3000K / 4000K / 5000K |
| Colour Rendering Index | CRI >70 |
| Beam Angle | 60° / 90° / 110° |
| Input Voltage | 100–240V AC, 50/60Hz |
| Power Factor | >0.9 |
| Dimming | 0–10V |
| Motion Activation | Optional sensor required |
| Ingress Protection | IP65 |
| Housing and Lens | Die-cast aluminium chassis with polycarbonate lens |
| Power Connection | 3-pin AC plug |
| Mounting | G1/2-inch threaded hook with steel safety tether cable |
| Rated Lifespan | 50,000 hours at 25°C ambient temperature |
| Operating Temperature | -30°C to +50°C |
| Dimensions Including Hook | Ø266 × 198mm |
| Dimensions Excluding Hook | Ø266 × 118mm |
| NSW ESS Accepted | No |
| Warranty | 5 years |
| Packaged Dimensions | 325mm wide × 325mm high × 170mm deep |
| Packaged Weight | 2.70kg |
Frequently Asked Questions
Can I change the wattage of this LED high bay?
Yes. The ENSA LHB-G150-A offers 80W, 120W and 150W settings, selectable using a DIP switch.
Can I select the light colour?
Yes. Choose 3000K warm white, 4000K natural white or 5000K cool white using the colour temperature DIP switch.
Is the ENSA LHB-G150-A dimmable?
Yes. The fitting supports 0–10V dimming when used with compatible control equipment.
Does it include a motion sensor?
No. Motion activation requires an optional compatible retrofit sensor.
How bright is the 150W setting?
The manufacturer specifies 25,500 lumens at 150W with the colour temperature set to 4000K.
What mounting accessories are included?
The fitting includes a G1/2-inch threaded mounting hook for chain mounting and a steel safety tether cable.
Datasheet, Photometric Files and Certificates
