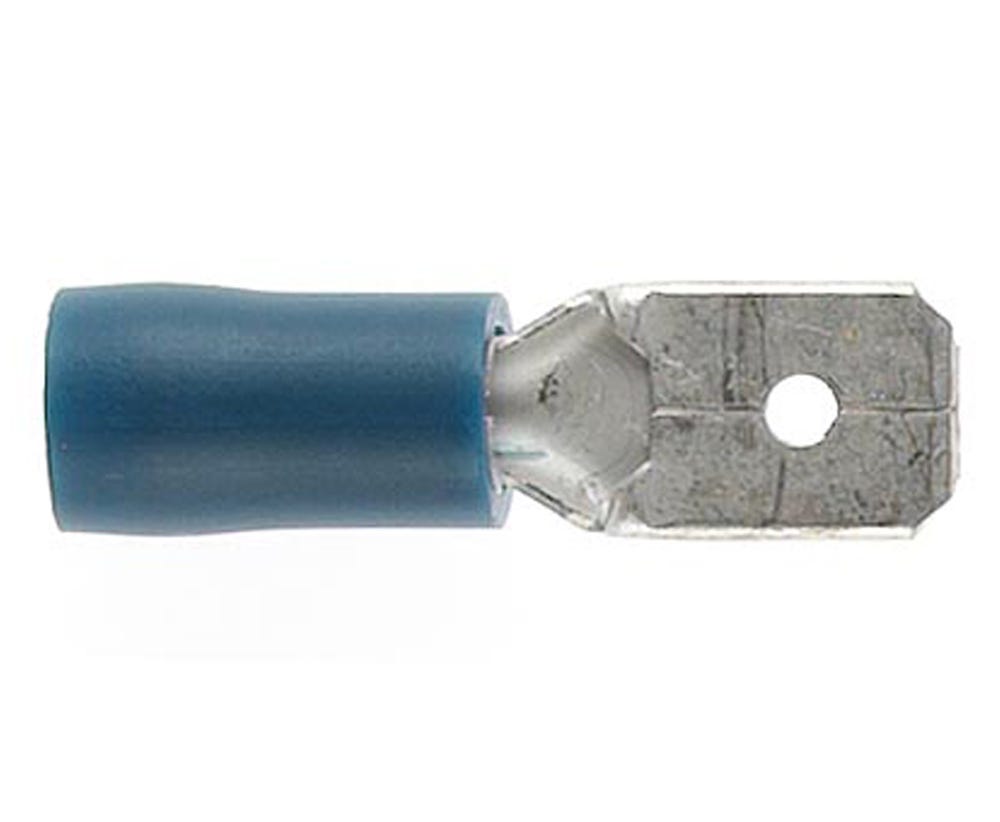

Cabac MALE TAB Q/C 6.4 X 0.8MM DG BLUE MT2-6.4DG x 100

Description

Double grip – separate crimp barrels for conductor and insulation

Conforms to AS 3169 and AS 4437

Reduces installation errors – PVC insulated

Part numbers with HF=Halogen Free

Product Description

Male Terminal 6.4 x 0.8MM Blue Q/C DG

The comprehensive range of pre-insulated terminals is continually being developed as switchgear, contactors, terminal blocks etc. evolve.

Pre-insulated Terminal Features

• High quality product meeting International Standards

• Funnel entry terminals allow easy conductor entry, minimising substandard crimps

• Long term electrical integrity

• Translucent nylon in fully insulated quick connector reduces installation errors

• Voltage rating 300V

• Full technical back up including QA

• Conforms to AS 3169 and AS4437

Note: All terminals should be crimped onto the conductor with a quality crimper that is designed to crimp the specific terminal type.

Technical Data

Conductive Material (Quick Connect Range) Brass 30% Zinc, 70% Copper Tensile Strength 580 MPa Ductile Rating 6% min Final Metal State Annealed Working Temperature Pre-Insulate -40°C to +105°C Brass 145°C Tin plated 160°C

Conductive Material (Except Quick Connect Range) Copper 99.9% Pure Tensile Strength 200 MPa Ductile Rating 35% min Final Metal State Fully Annealed Oxygen Content 50ppm max General Electrical Properties Total Conductivity 99.5% IACS Total Resistivity 1.738 micro-ohm cm

Electroplating Material Tin Tin Content 99.9% Other Metals Lead + Antimony Plating Thickness 2.5 microns Insulation Material PVC for all except nylon 6 or nylon 66 for FIQC Breakdown Voltage 1.5kV (min) Insulation Resistance Above 100 meg ohms Working Voltage Up to 300V
AC/DC Conformant Standards AS4437, AS3169 Australia CSA Canada IEC Europe UL Nema USA Demko Denmark DIN VDE Germany Kema Holland JIS Japan; Nemko Norway ASE Switzerland BS United Kingdom

Torque Recommendations<>

For hardware being metric 8.8 tensile grade.

Thread Dia. (mm)Torque (Nm)

32

43

55

69

822

1044

1277

Nominal Pull Out Force

Pull out should be checked for each tool/terminal combination.

Wire Size (mm–)Pull Out Force kg (N)

0.254.6 (45)

0.506.0 (59)

0.758.6 (84)

1.0010.1 (100)

1.5013.2 (130)

2.5019.6 (192)

4.0026.5 (260)

6.0035.2 (345)

Technical Specifications

Cable Size (mm2): 1.0-2.6

Terminal Colour: Blue

Terminal Type: Fully Ins QC
