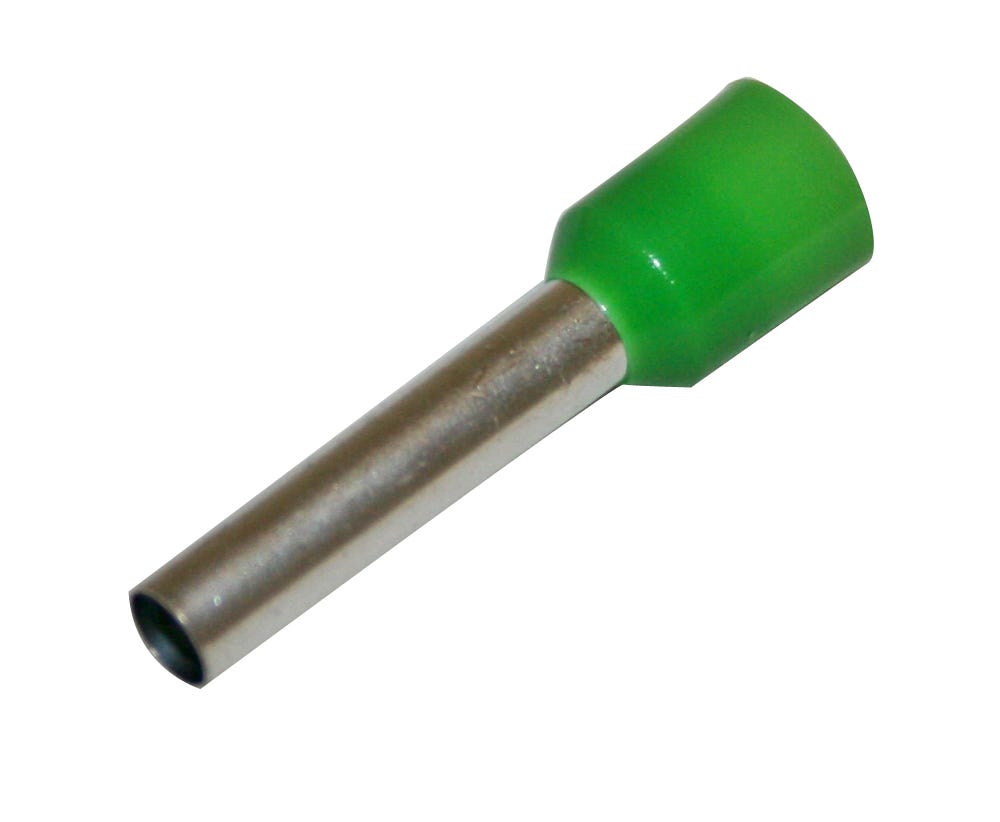

Cabac BOOT LACE PIN 6MM2-GREEN L18 HF BLP600-18 x 50

Description

Terminate stranded conductors, containing all strands in thin walled copper sleeve crimped to conductor

Crimp holds on sleeve until housing screw makes connection

Crimp with one of our HNKE range of crimp tools

Halogen free and ROHS Complaint

Product Description

Bootlace pins are used to terminate conductors, by containing the strands in a thin walled copper sleeve that is crimped on to the conductor. The sleeve ensures that no conductor strands stray, and also stops screws in the terminal from breaking strands. With the use of larger diameter flexible cables, the range is continually growing, so please contact our sales department if an item you need is not shown.

There are three basic types of Bootlace Pin:

– Insulated single conductor style

– Twin conductor style

– Uninsulated cord end sleeves

The sleeves should be slipped over the stripped conductor, and crimped with one of our HNKE range of crimp tools. The crimp is only to hold the sleeve on conductor until screw of terminal housing makes the connection.

Technical Data

Nominal Conductor: 6mm2

Colour: Green

Pack Qty: 50

Tooling Part No.: HNKE12, HNKE5, HNKE9, HNKE10, HNKE11, HNKE7

Dimensions

L: 26mm

P: 18mm

B: 3.5mm

D: 6.3mm

Note: Line drawings for dimensions (L, P, B and D) are available.

Technical Specifications

Cable Size (mm2): 6

Terminal Colour: Green

Terminal Type: Bootlace Pin
