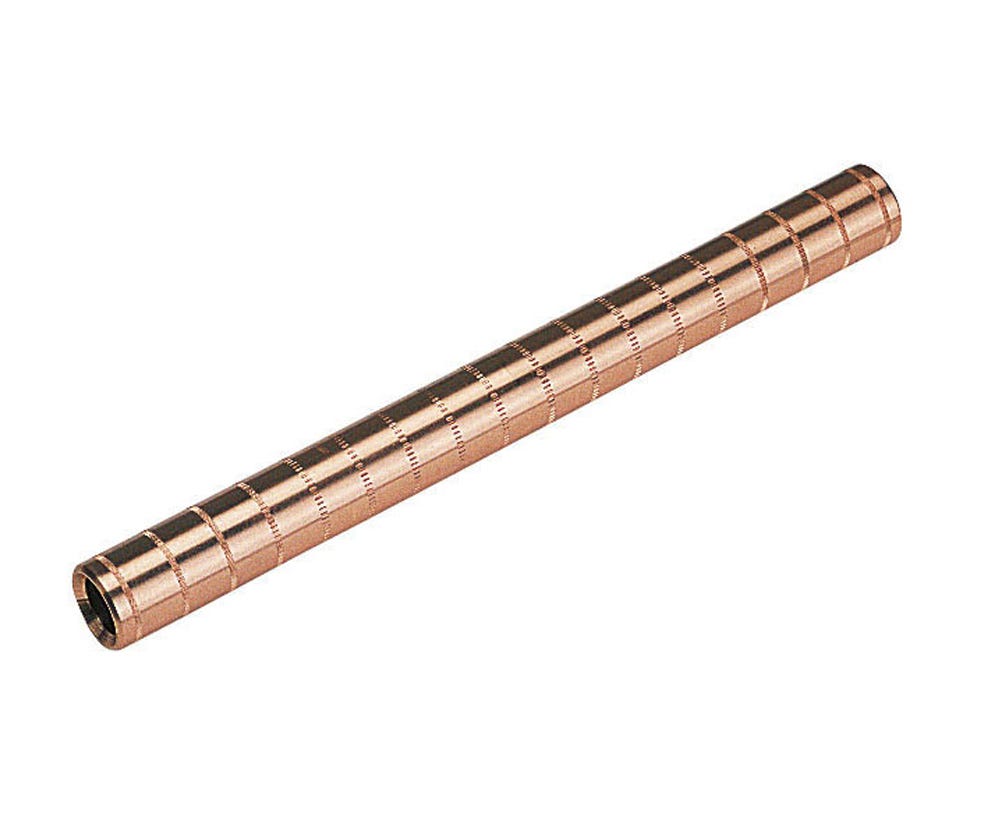

Cembre CU COMPRESS. SLVE O/H 95MM2 PT95

Description

Reliable Full-Tension Jointing for Overhead Copper Conductors

The Cembre PT95 Copper Compression Sleeve is engineered for secure full-tension joining of stranded hard-drawn copper overhead conductors. Designed for demanding electrical distribution environments, it delivers a dependable mechanical and electrical connection that maintains conductor integrity under load. Built to meet AS 1154.1 full tension testing requirements, it ensures compliance with Australian utility standards, making it suitable for regulated infrastructure and network installations. Its compact design replaces bulkier traditional sleeves, reducing joint profile and improving line handling in overhead applications.

Fast, Efficient Crimping for Trade Installations

This sleeve is designed for quick and efficient field installation using standard hexagonal die hydraulic crimping tools, including the HT51 or any larger compatible crimper. Clear compression markings on each end guide installers on correct positioning and number of crimps, reducing installation errors and improving consistency across projects. A central internal stop ensures conductors are inserted to the correct depth every time, helping maintain joint reliability. Plastic end plugs prevent contamination before use, ensuring a clean and ready-to-crimp connection on site.

High-Purity Copper Construction for Maximum Performance

Manufactured from 99.95% high-conductivity copper, the PT95 sleeve delivers excellent electrical performance with 99.7% IACS conductivity and low resistivity. Its fully annealed state enhances ductility for strong, lasting compression bonds. Designed for demanding environments, it operates reliably between -55°C and 100°C. Trusted by energy authorities and utility networks, it is suitable for professional-grade installations requiring durability, safety, and compliance with strict engineering standards.

Key Specifications

• Material: 99.95% high conductivity copper
• Conductivity: 99.7% IACS
• Operating temperature: -55°C to 100°C
• Compatible tool: HT51 or larger hydraulic crimpers
• Standard compliance: AS 1154.1
• Design: Internal stop with compression marking guides

Ideal For

• Licensed electricians and electrical contractors
• Overhead power distribution line installations
• Utility and infrastructure maintenance works
• Industrial and commercial electrical projects
• Network upgrades requiring full-tension conductor joints
