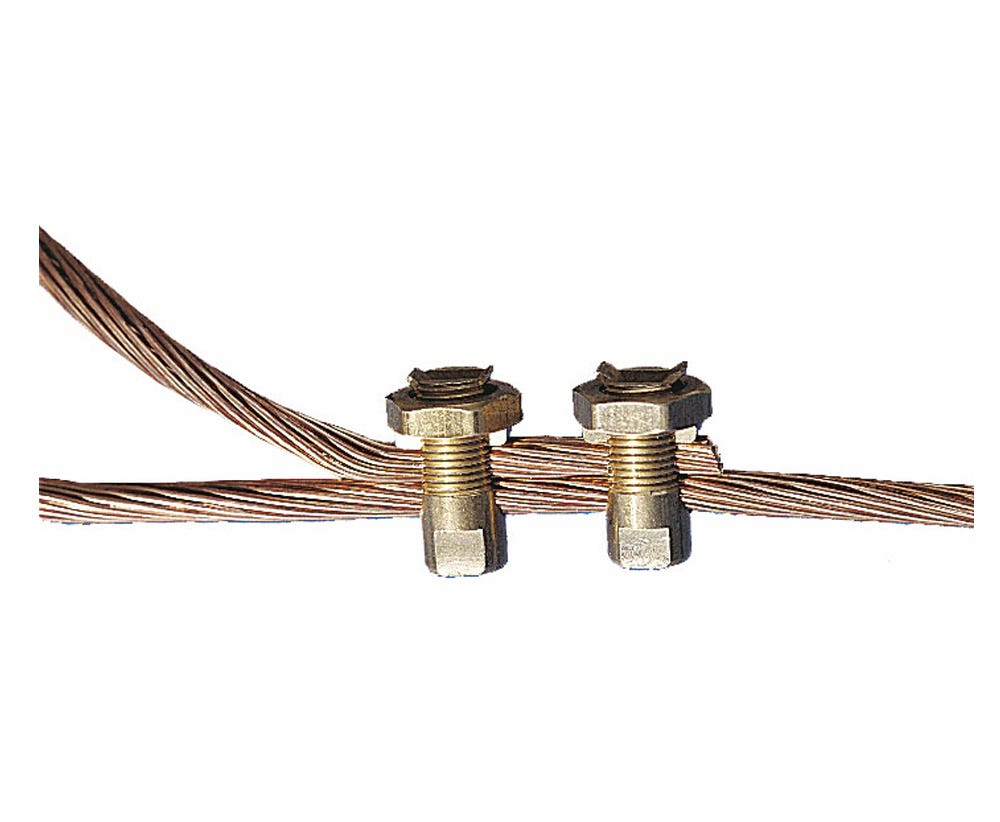

Cabac SPLIT BOLT CONNECTOR 70MM2 SBC25

Description

Used for tapping or joining hard drawn Copper conductors or insulated Copper conductors

Supplied in natural brass

A standard linesman spanner will fit head

Made from hard grade high conductivity brass

Product Description

Split Bolt Connector 70MM–

A complete range of split bolts used for tapping or joining aerial hard drawn copper conductors or insulated copper conductors.

The split bolts are made from a hard grade high conductivity brass with captive saddle which applies a distributed pressure to conductors (to comply with ESAA specifications). The head dimensions are the market standard so that a standard linesman spanner will fit.

Split Bolt Connectors are supplied in natural brass or electro tinned.

Technical Data

Conductive Material Copper Alloy

Operating Temperature -55°C to 100°C

Electroplating Material Tin 99.7% pure

Accepting Authorities

Energy Australia

Rail Services Australia

Integral Energy

North Power

ENERGEX

and many other recognised authorities

Technical Specifications

Brass Type: Natural

Cable Size (mm2): 70
