Cabac PRE-INS COMPRESSION SLV 150MM MJPT150

Description

Used for full jointing tension joining of ABC cables

Crimping instruction markings included

Internal contact grease and stop ensure correct position

Insulation made from thermoplastic polymer material

Product Description

Pre-insulated Tension Sleeve for ABC 150MM

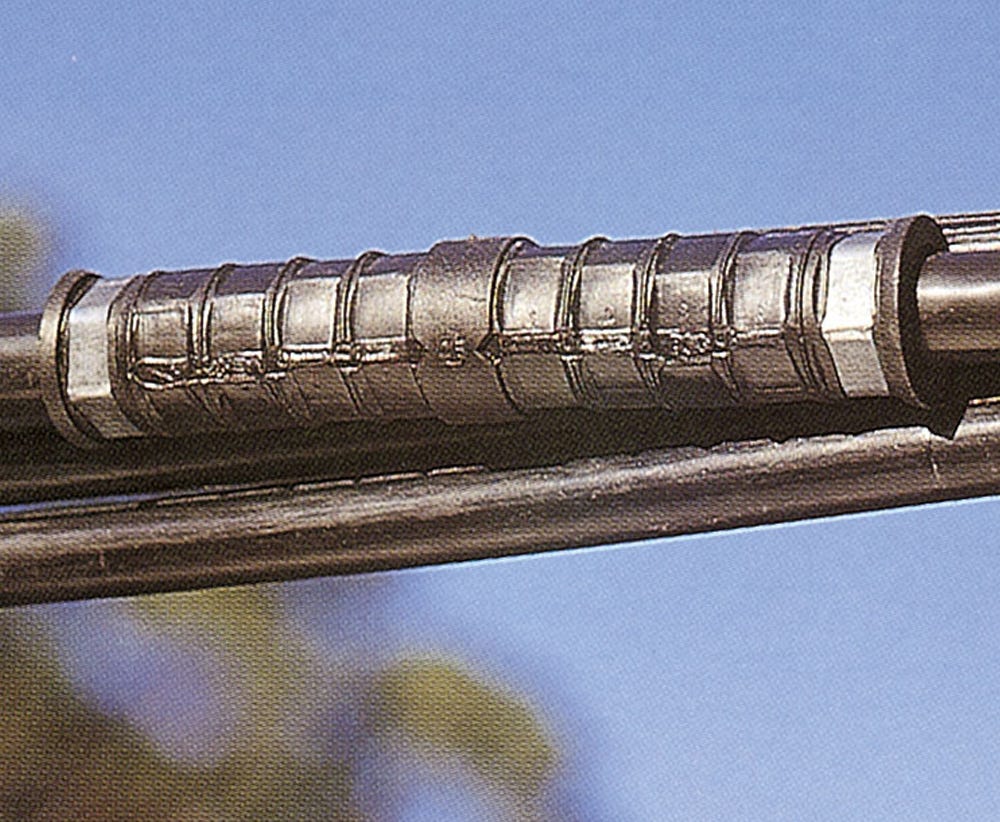

Pre-insulated Tension Sleeves are used for full tension joining of ABC (Aerial Bundled Conductor) cables. The sleeve consists of a 1050A aluminium tube coated internally with contact grease and a stop to ensure that the conductors are correctly positioned.

The sleeve is insulated by means of a strong sheath of thermoplastic polymer material and has ends with an additional insulation ring coloured to indicate the size of conductor.

The linesman’s job is made easier by markings that show:

• Positions and crimping order

• Length of insulation to be stripped from the cable core

• Die size required

• Fitting reference code

• Colour code to select size

Installation

• Strip the conductor to the correct length (L indicated on the sheath)

• Slide the sleeve on the conductor until it stops

• Crimp the sleeve with correct hex die in the order marked on the sleeve

• Repeat the same operation on the other conductor in order to complete the connection

Technical Data

Conductive material Aluminium 99.6% pure Insulating material Thermoplastic polymer Operating temperature -55°C to 100°CConformant standards HN 33 S 66 August 1985 EDF HN 33 E 60 August 1988 EDF Accepting authorities Electricity Services Victoria Energy Australia and
many other recognised authorities
