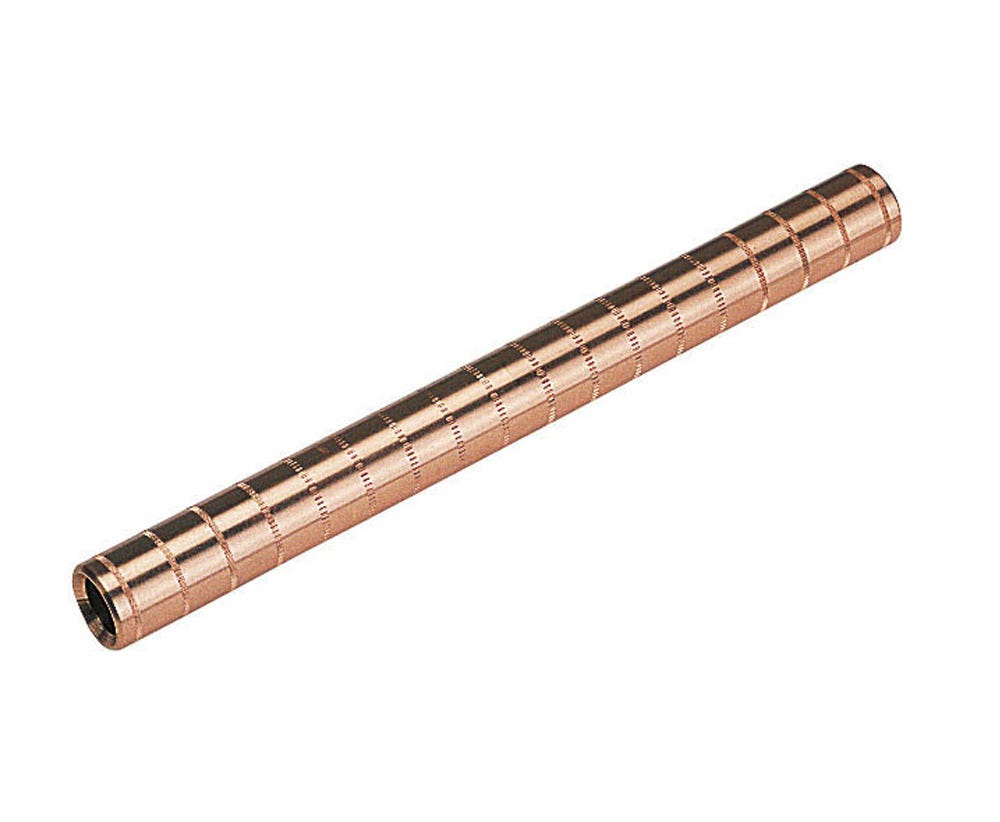

Cabac CU COMPRESS. SLVE O/H 35MM2 PT35
$95.37 inc GST
Cabac PT35 copper compression sleeve is designed for full-tension overhead conductor jointing in accordance with AS 1154.1. Made from high-conductivity copper, it delivers reliable electrical performance, fast crimp installation, and durable mechanical strength. Ideal for electricians and utility contractors needing safe, compliant, and efficient overhead line connections in the field.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
50 in stock
Description
Overview of PT35 Copper Compression Sleeve
The PT35 sleeve is purpose-built for overhead conductor splicing where strength and conductivity are critical. Its precision-formed copper body allows secure compression without damaging stranded conductors, ensuring a stable and durable joint. Plastic end plugs protect internal surfaces from contamination prior to installation, maintaining integrity on site. A central stop ensures correct conductor insertion depth for consistent results across multiple terminations.
Performance & Compliance for Overhead Connections
Engineered to meet full tension testing requirements of AS 1154.1, this sleeve is trusted for compliant overhead electrical networks. Made from 99.9% high-conductivity copper, it achieves excellent electrical performance with minimal resistive loss. Marked compression lines guide installers on correct crimp positioning and count, reducing installation errors and improving repeatability in field conditions. Suitable for utility-approved applications, it is widely accepted across major energy authorities.
Fast Installation & Trade Efficiency
Designed for fast crimping using hexagonal dies and the HT51 hydraulic crimper, the PT35 significantly reduces installation time compared to traditional methods. It eliminates the need for conductor twisting, simplifying overhead jointing while producing a shorter, neater connection. Compatible with larger hydraulic crimping tools, it offers flexibility for varied job site requirements, making it ideal for both maintenance and new installation work.
Key specs
- Material: 99.9% high-conductivity copper
- Standard: AS 1154.1 full tension compliant
- Electrical conductivity: 99.7% IACS
- Resistivity: 1.738 micro-ohm cm
- Tensile strength: 200 MPa
- Ductility: 40%
- Operating temperature: -55°C to 100°C
- Installation: Hexagonal die crimp / HT51 hydraulic crimper
Ideal for
- Electrical contractors handling overhead line work
- Utility and power distribution maintenance teams
- Infrastructure and rail electrical installations
- Licensed electricians performing conductor splicing
- Industrial and commercial electrical projects requiring compliant joins
