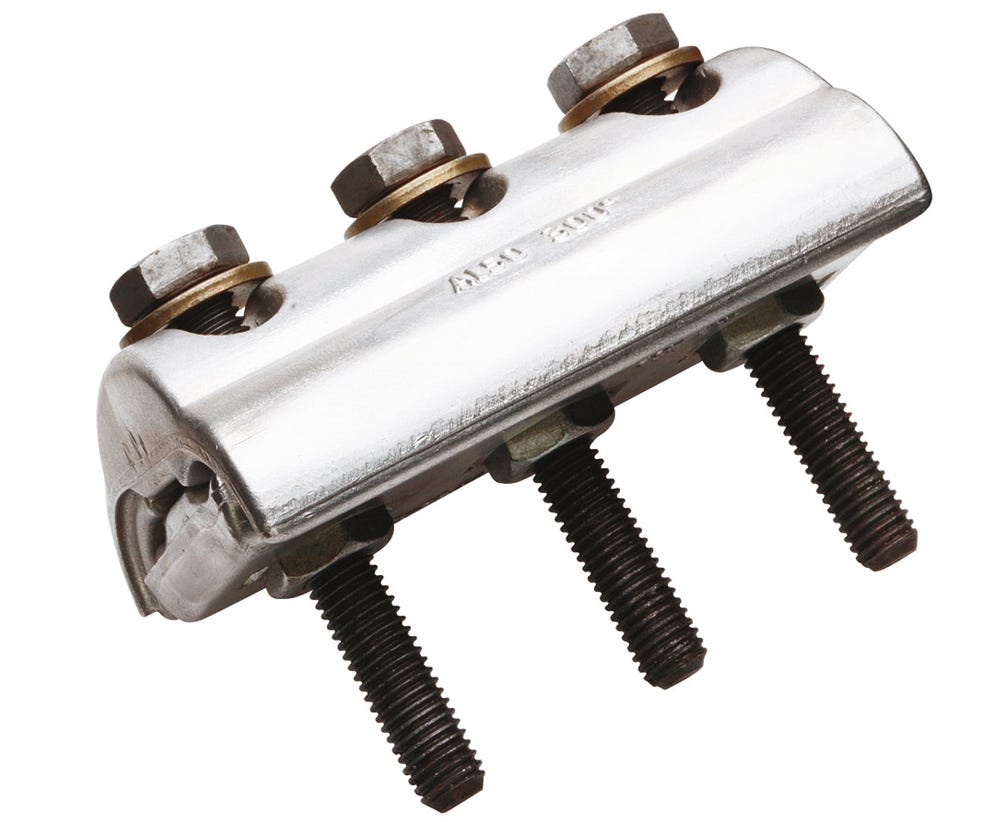

Cabac AL PARALLEL GROOVECLAM 35/300 3XM10 AF17 ALPG35/300-3B
$72.24 inc GST
The Cabac AL Parallel Groove Clamp 35/300 3xM10 AF17 ALPG35/300-3B is a forged aluminium connector designed for joining AAC, AAAC, and ACSR overhead conductors. Featuring adjustable slotted holes, galvanised hardware, and simple single-spanner installation, it provides durable, secure performance for utility, commercial, and industrial electrical projects throughout Australia.
Fast Shipping
On All Orders
Australian Company
Owned & Operated
15+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind
50 in stock
Description
Strong Forged Construction for Reliable Performance
Unlike extruded alternatives, this Cabac parallel groove clamp is forged to provide increased strength and durability under mechanical load. The robust aluminium body is engineered to withstand the demands of overhead electrical installations while maintaining a secure connection over time. Combined with galvanised nuts and bolts, the clamp offers excellent resistance to corrosion and outdoor conditions, helping minimise maintenance requirements throughout its service life.
Fast Installation with Adjustable Design
Designed with installer convenience in mind, the slotted holes allow easy adjustment to accommodate conductors on either side of the clamp. Installation is quick and efficient using only a single spanner on the galvanised fasteners, reducing labour time while ensuring a firm and consistent connection. This practical design makes it ideal for both new overhead line installations and maintenance work.
Trusted Solution for Australian Electrical Projects
Whether you’re completing utility upgrades, overhead line repairs, or new infrastructure installations, the Cabac ALPG35/300-3B provides dependable performance that professionals can trust. Available from iSupply Electrical, it forms part of a comprehensive range of quality electrical products backed by competitive pricing, fast Australia-wide delivery, and expert trade service.
Key Specifications
- Forged aluminium parallel groove clamp
- Model: ALPG35/300-3B
- Suitable for AAC, AAAC and ACSR conductors
- Conductor range: 35–300mm²
- Three M10 galvanised bolts
- AF17 fasteners
- Slotted holes for conductor adjustment
- Single-spanner installation
- High-strength forged construction
- Suitable for overhead electrical applications
Ideal For
- Licensed electricians
- Electrical contractors
- Utility maintenance crews
- Overhead power distribution
- Electrical infrastructure projects
- Network maintenance and repairs
- Commercial electrical installations
- Industrial electrical applications
Additional information
| Brand | |
|---|---|
| Type |
