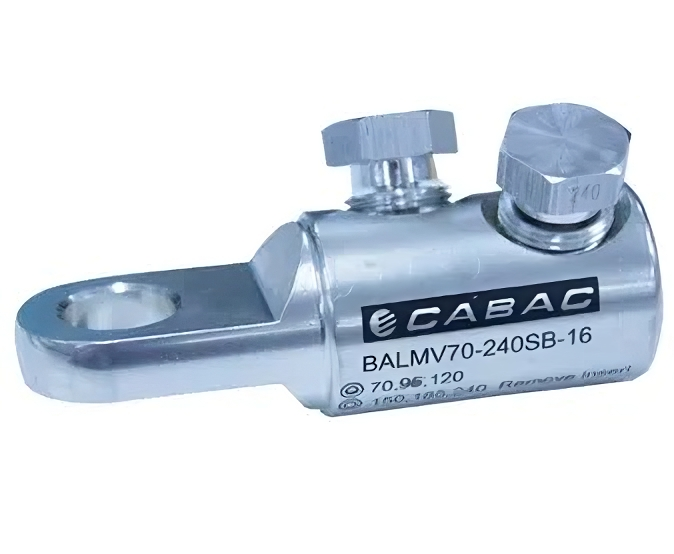

CABAC LUG TINNED MECH. SHEAR 70-240 SQMM SHORT (1/each) BALMV240SB-16

CABAC LUG TINNED MECH. SHEAR 70-240 SQMM SHORT (1/each) BALMV240SB-16

$55.60 inc GST

The CABAC BALMV240SB-16 mechanical shear lug offers a fast, reliable solution for terminating 70-240mm² copper and aluminium conductors. Its shear bolt technology removes the need for specialised crimping tools while the grooved, tin-plated aluminium barrel delivers secure, low-resistance connections for low voltage installations up to 36kV across residential, commercial, and industrial applications.

fast-delivery

Fast Shipping

On All Orders


Australian Company

Owned & Operated

worker

15+ Years

Industry Experience

30-days

Easy Returns

30 Days Peace Of Mind

20 in stock

SKU: BALMV240SB-16 Categories: ,

Description

Fast Installation with Shear Bolt Technology

The innovative shear bolt design allows installers to create the correct connection by tightening the bolts until the heads shear at the predetermined torque. This removes the guesswork associated with manual tightening and eliminates the need for hydraulic crimping tools. Installation requires only a standard Allen key, making it an excellent choice for maintenance work, upgrades, and projects where speed and convenience are essential.

Reliable Performance for Copper and Aluminium Conductors

Manufactured from 99.6% pure aluminium and finished with durable tin plating, the BALMV240SB-16 is suitable for mixed conductor applications. The specially grooved internal barrel breaks through oxide layers during installation to create a low-resistance electrical interface that can outperform traditional crimped joints. Chamfered edges further improve handling while reducing the risk of cable damage during installation.

Built for Professional Electrical Applications

Designed for demanding residential, commercial, industrial, and utility projects, this CABAC mechanical lug complies with recognised international standards including AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA. Whether installing new switchboards, upgrading distribution equipment, or carrying out maintenance, contractors can rely on consistent electrical performance and long-term durability.

Key Specs

  • Conductor range: 70-240mm²
  • Low voltage applications up to 36kV
  • Short tinned aluminium mechanical lug
  • Shear bolt termination technology
  • Suitable for copper and aluminium conductors
  • Conductor bolt diameter: 20mm
  • Conductive material: 99.6% pure aluminium
  • Tin-plated brass alloy shear head bolts
  • Operating temperature: -20°C to +140°C
  • Tensile strength: 20MPa
  • Installation requires a standard Allen key
  • Complies with AS/NZS4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA standards

Ideal For

  • Licensed electricians
  • Electrical contractors
  • Commercial electrical installations
  • Industrial maintenance
  • Switchboard construction
  • Power distribution systems
  • Cable replacement projects
  • Copper and aluminium cable terminations
  • Utility infrastructure work
