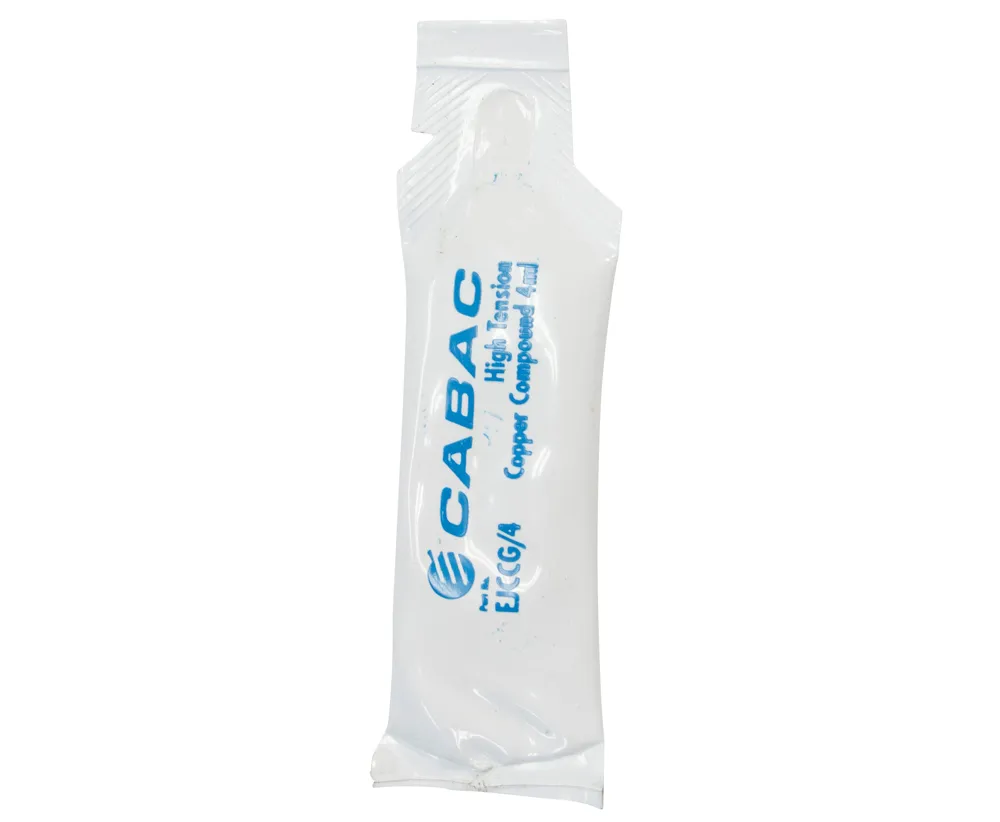

CABAC JOINTING COMPOUND COPPER 4ML SACHET EJCCG/4 x 1/EACH

Description

Product Description

Generally copper crimped and bolted connections do not need jointing compound, however in certain circumstances jointing compound will assist the joint integrity.



EJCCG/4 copper coloured compound is recommended for use where high mechanical tension is applied to the connection. It is made from a urethane derivative of castor oil, with 10% suspended copper (as with EJCC/220), but has 35% 100-mesh silicone carbide added. The silicone carbide acts as a grit to make the surfaces in the joint grip well, while the compound fills voids, and assists conductivity. EJCG/4 is supplied in handy 4ml sachets, since it is generally used as a single shot application with copper ‘C’ Connectors on earth rods or situations where a sudden power surge can cause mechanical tension.



Please Note: Jointing compounds are made from a non-conductive oil base with suspended particles to suit a particular application. Each compound has specific properties and should only be used as prescribed by the manufacturer for its specific application. If in doubt about the application of a compound, please contact us for assistance.

Technical Data

Base oil – Castor Oil Derivative: 55%

Service Temperature: -40 to 150 degrees Celsius

Dropping Point: 260 degrees Celsius

Thickener: 35% 100 Mesh Silica




Use: High tension copper compound

Packing: 4ml sachet
