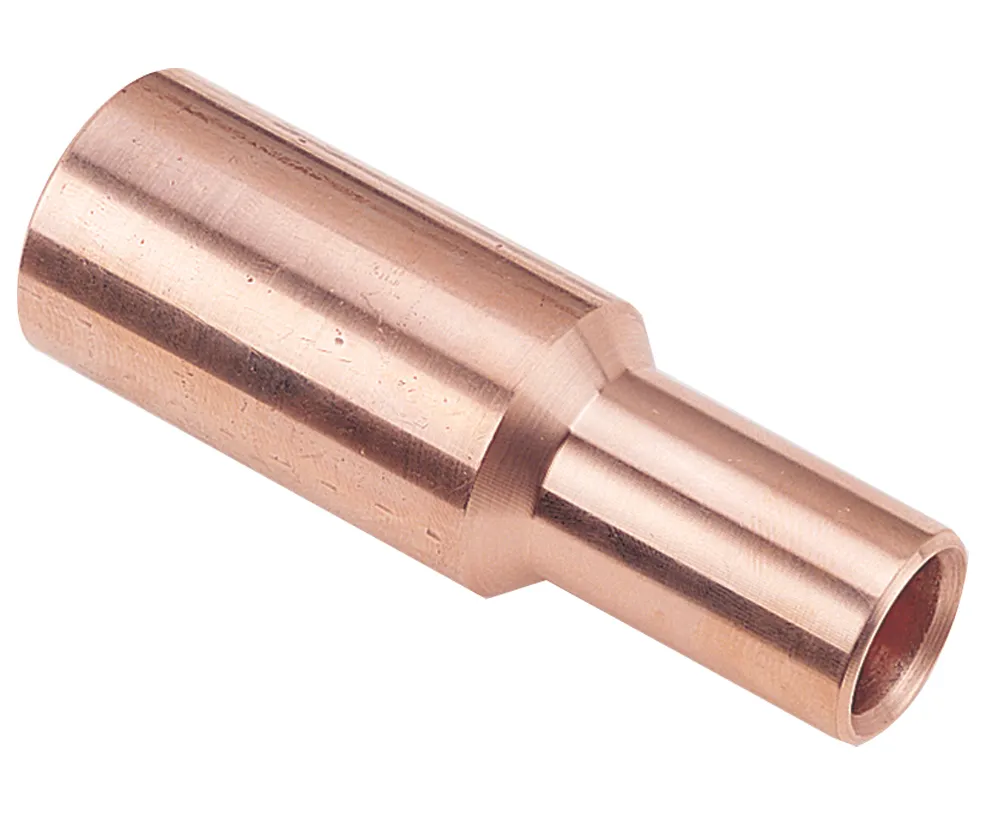

CABAC CU REDUCING LINK 35-16MM2 CASR35/16 x 1/EACH

Description

Efficient Cable Transitions Without Compromise

Designed for clean, reliable conductor transitions, the CABAC 35–16mm² copper reducing link makes it easy to join mismatched cable sizes without slowing the job down. The barrier-type construction ensures a secure separation between conductors, helping maintain performance where oil or moisture resistance is critical.

For electricians working across switchboards, distribution setups, or upgrades, this link keeps installs neat and efficient while reducing the need for workarounds on site. The fully annealed copper construction delivers excellent conductivity and flexibility, making it easier to achieve a solid crimp and consistent connection every time.

Built for Compliance and Long-Term Reliability

Manufactured from 99.95% pure copper, this reducing link offers high conductivity (99.7% IACS) and dependable electrical performance across demanding environments. With an operating temperature range of -55°C to 155°C, it’s suited for both standard and more extreme installation conditions.

Compliant with major international standards including AS4325 Part 1, IEC, DIN/VDE, JIS, BS, and UL/NEMA, this product supports installations that must meet strict regulatory requirements. The barrier design also adds an extra layer of protection in environments where contaminants like oil or water are present.

Note: To maintain integrity, avoid crimping too close to the centre barrier to prevent shearing.

Trade-Ready Convenience for Fast Installations

Built with interchangeability in mind, this reducing link works seamlessly with tooling from Cable Accessories, Utilux, and Burndy—saving time on site and eliminating the need for specialised equipment.

For contractors managing tight deadlines and multiple jobs, having a dependable, easy-to-use reducing link helps minimise installation delays and rework. Supplied unplated to ensure optimal performance within its intended shelf life, it’s a practical choice for electricians who value reliability and efficiency in every connection.

Key Specs

• Nominal Conductor: 35mm²
• Conductive Material: Copper (99.95% pure)
• Oxygen Content: 30 p.p.m. max
• Tensile Strength: 200 MPa
• Ductile Rating: 40%
• Metal State: Fully annealed
• Operating Temperature: -55°C to 155°C
• Conductivity: 99.7% IACS
• Resistivity: 1.738 micro-ohm cm
• Plating: Not supplied plated
• Standards: AS4325 Part 1, IEC, GL/DIN/VDE, JIS, BS, UL/NEMA

Ideal For

• Licensed electricians handling cable size transitions
• Switchboard and distribution board installations
• Commercial and industrial electrical projects
• Maintenance and upgrade work requiring compliant connectors
• Environments where oil or moisture resistance is required
